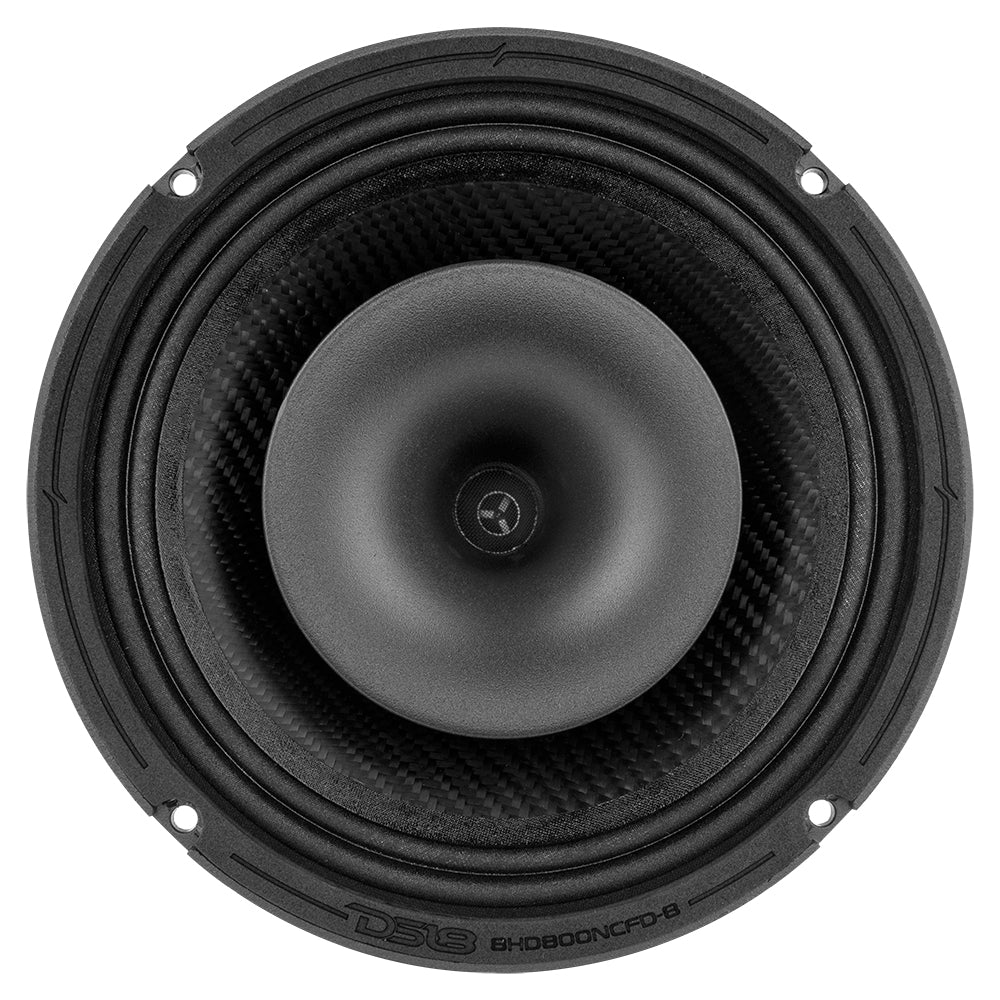

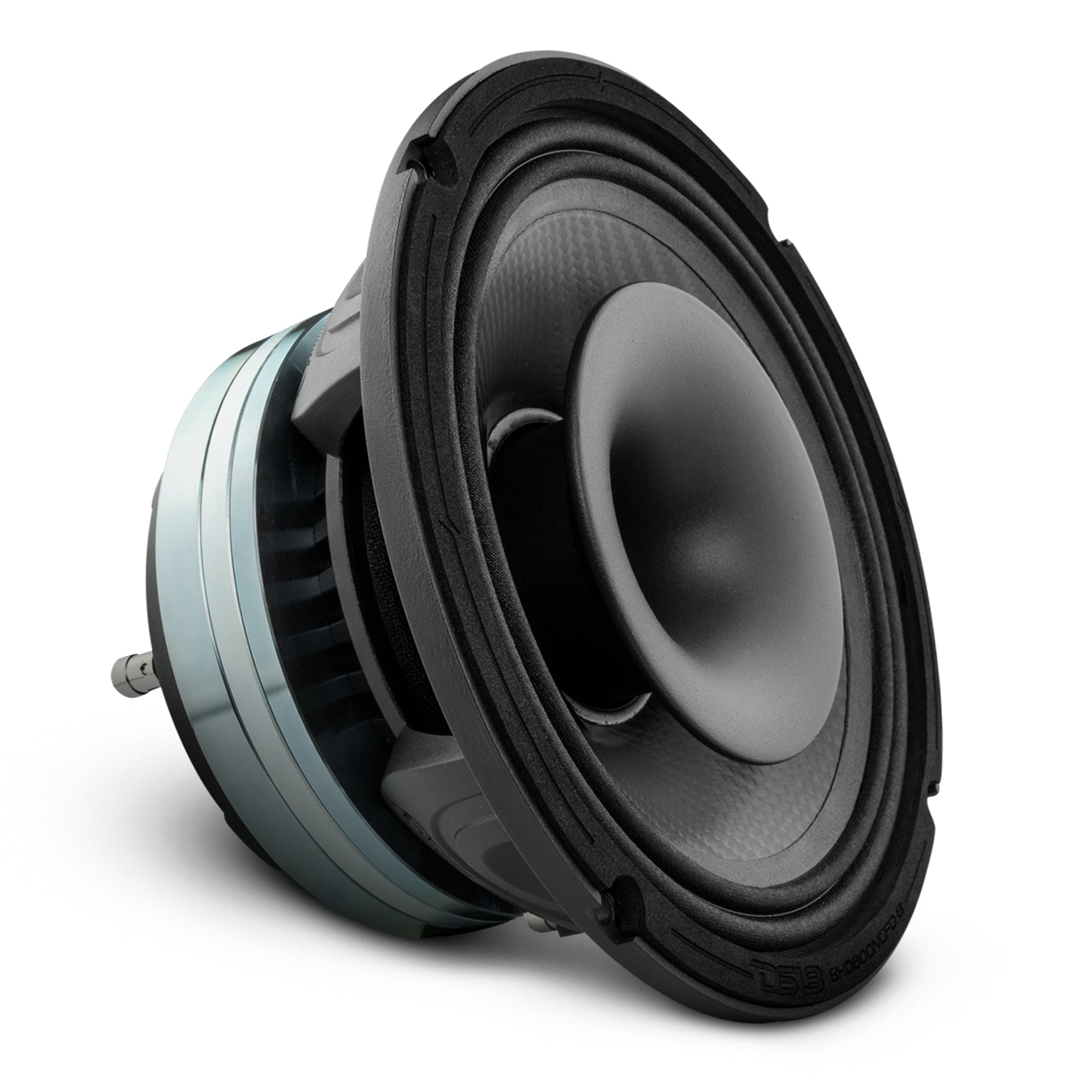

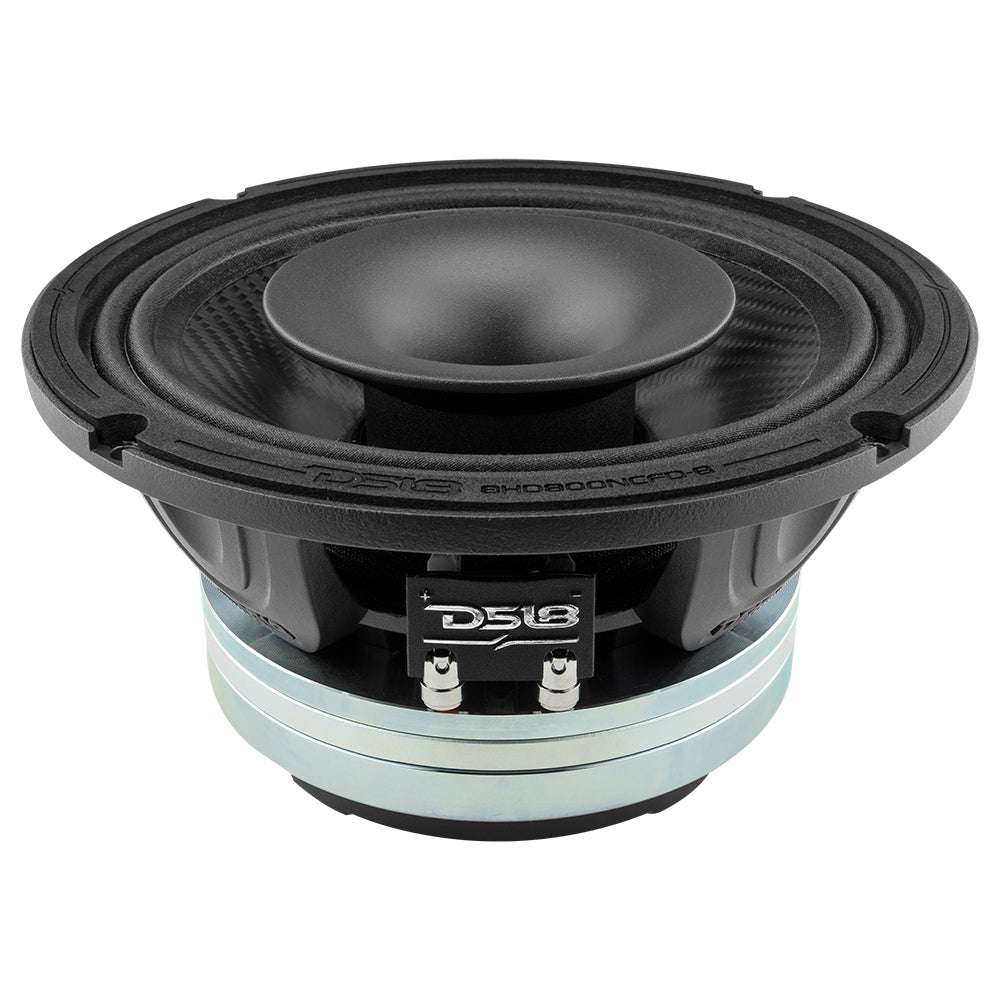

This DS18 hybrid speaker combines an 8-inch mid-bass woofer and a compression driver in one mounting location. It's a useful option for a custom audio build when you want strong mids and clear highs without finding room for a separate horn. The water-resistant carbon fiber cone and neodymium magnets make it suited to installations in cars, trucks, motorcycles and boats where mounting space allows.
Fitment Information
- For custom audio installations with room for an 8-inch speaker, a 7.2-inch mounting cutout and 4.63 inches of mounting depth.
- No vehicle-specific model-year or chassis application. Fitment depends on the mounting panel, available clearance and audio system.
Fitment Notes

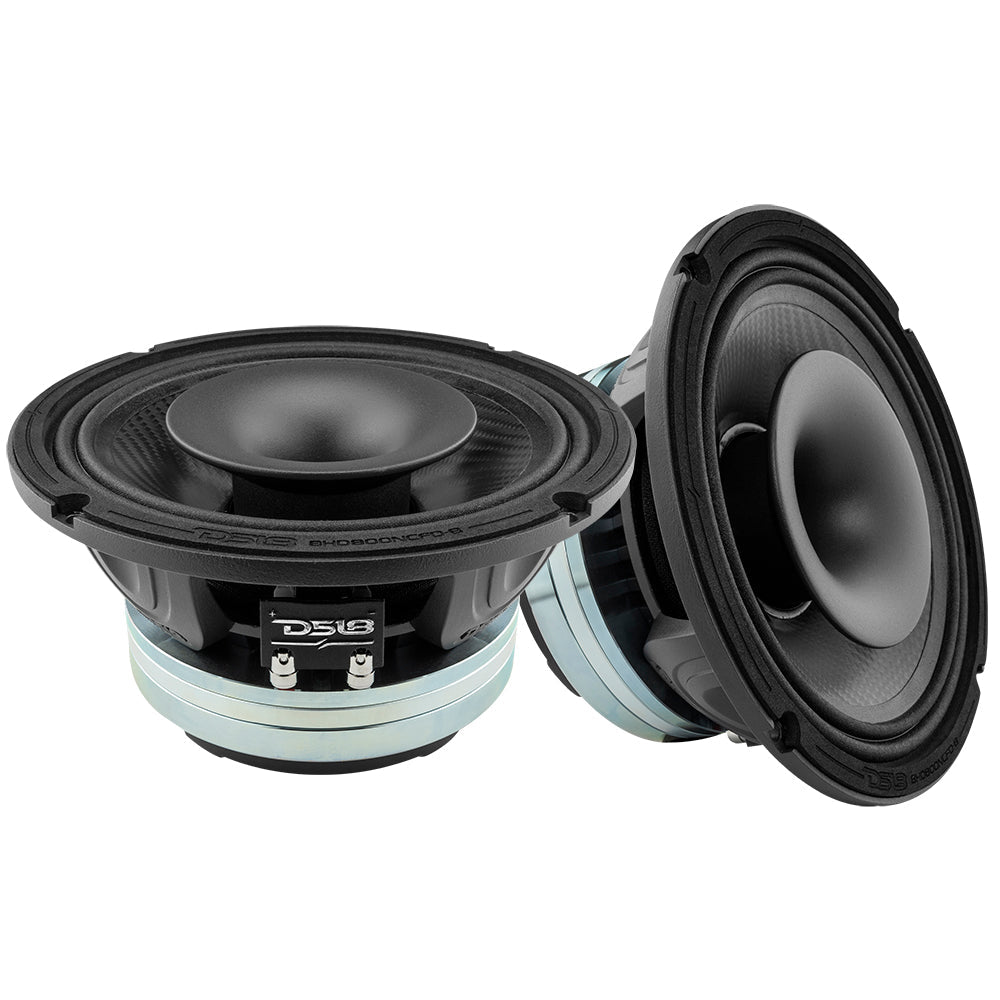

- Sold individually. Order two for a matching left and right pair.
- The woofer and compression driver each have an 8-ohm impedance and separate wiring terminals.
- This is the 8HD800NCFD-8 version. The 8HD800NCFD-4 uses a 4-ohm woofer and an 8-ohm driver.
- Check clearance behind the panel, including window mechanisms and other moving parts.
- Grille, amplifier, crossover equipment, wiring and mounting adapters are sold separately.
Specs & Features
- Manufacturer part number: 8HD800NCFD-8
- 8-inch two-way hybrid coaxial loudspeaker
- Combined power handling: 400 watts RMS / 800 watts maximum
- Published combined frequency response: 40Hz-20kHz
- Published combined sensitivity: 105dB at 1 watt / 1 meter
- Water-resistant carbon fiber woofer cone with treated cloth surround
- Neodymium magnets for the woofer and compression driver
- Die-cast aluminum basket with black sandblasted finish

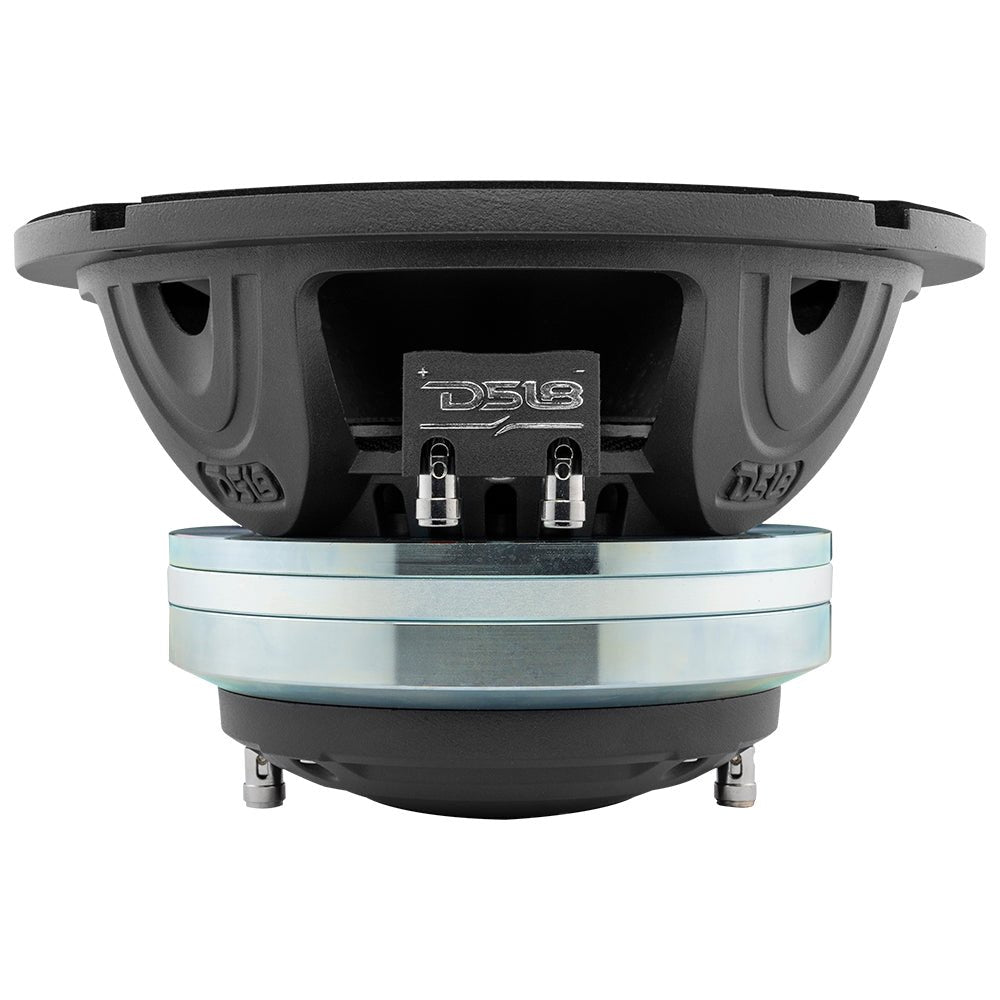

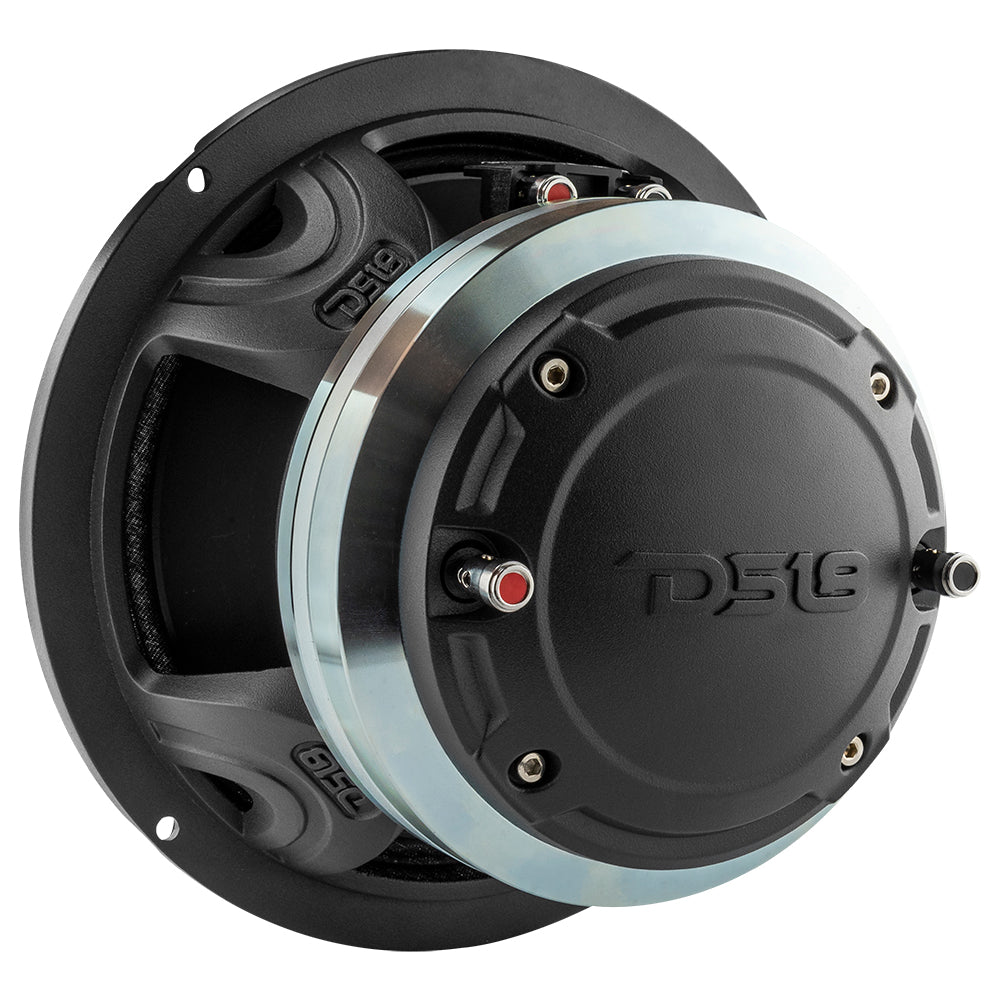

- Four terminals provide separate connections for the woofer and driver.
Mid-Bass Woofer Specifications
- Impedance: 8 ohms
- Power handling: 250 watts RMS / 500 watts maximum
- Sensitivity: 96.5dB at 1 watt / 1 meter
- Frequency response: 40Hz-10kHz
- Recommended band-pass crossover: 80Hz-900Hz
- Voice coil diameter: 2.6 inches / 66mm
Compression Driver Specifications
- Impedance: 8 ohms
- Power handling: 150 watts AES / 300 watts program
- Sensitivity: 100.5dB at 1 watt / 1 meter
- Frequency response: 315Hz-20kHz
- Recommended high-pass crossover: 900Hz
- Voice coil diameter: 3 inches / 76.2mm
- Titanium diaphragm with polymer edge

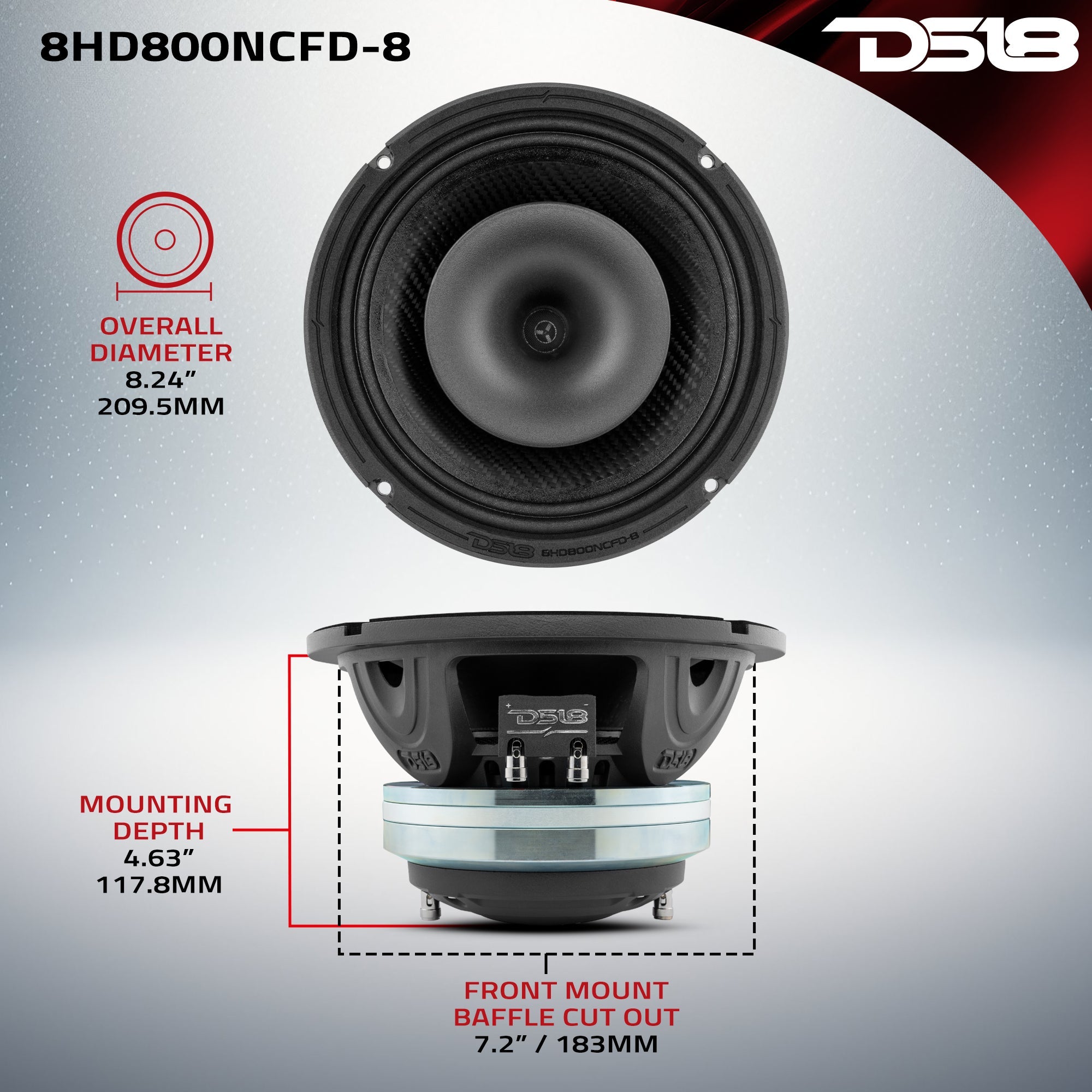

Mounting Dimensions
- Overall diameter: 8.24 inches / 209.5mm
- Overall depth: approximately 5 inches / 127.8mm
- Mounting cutout: 7.2 inches / 183mm
- Mounting depth: 4.63 inches / 117.8mm
What's Included
- One DS18 8HD800NCFD-8 hybrid coaxial speaker with integrated compression driver
Installation
Mount the speaker securely in a suitable panel or enclosure, then wire the woofer and compression driver to their separate terminals. Plan the amplifier channels and crossover arrangement before connecting either section.
Use DS18's recommended 80Hz-900Hz band-pass range for the woofer and 900Hz high-pass point for the driver as the starting point for tuning. Match amplifier output to each section's power handling and impedance. The combined 400-watt rating applies to both sections together.
Pairs Well With
- Full-range multichannel amplifier: Choose suitable output at 8 ohms to power the woofer and compression driver separately.
- DSP or active crossover: Set the crossover points and adjust each section's level so the mids and highs work together.
- Compatible speaker grille: Protect the cone in exposed mounting locations while leaving clearance for the center horn.
About the Brand
DS18 makes speakers, amplifiers, subwoofers and audio accessories for automotive, motorcycle, marine and powersports installations.
