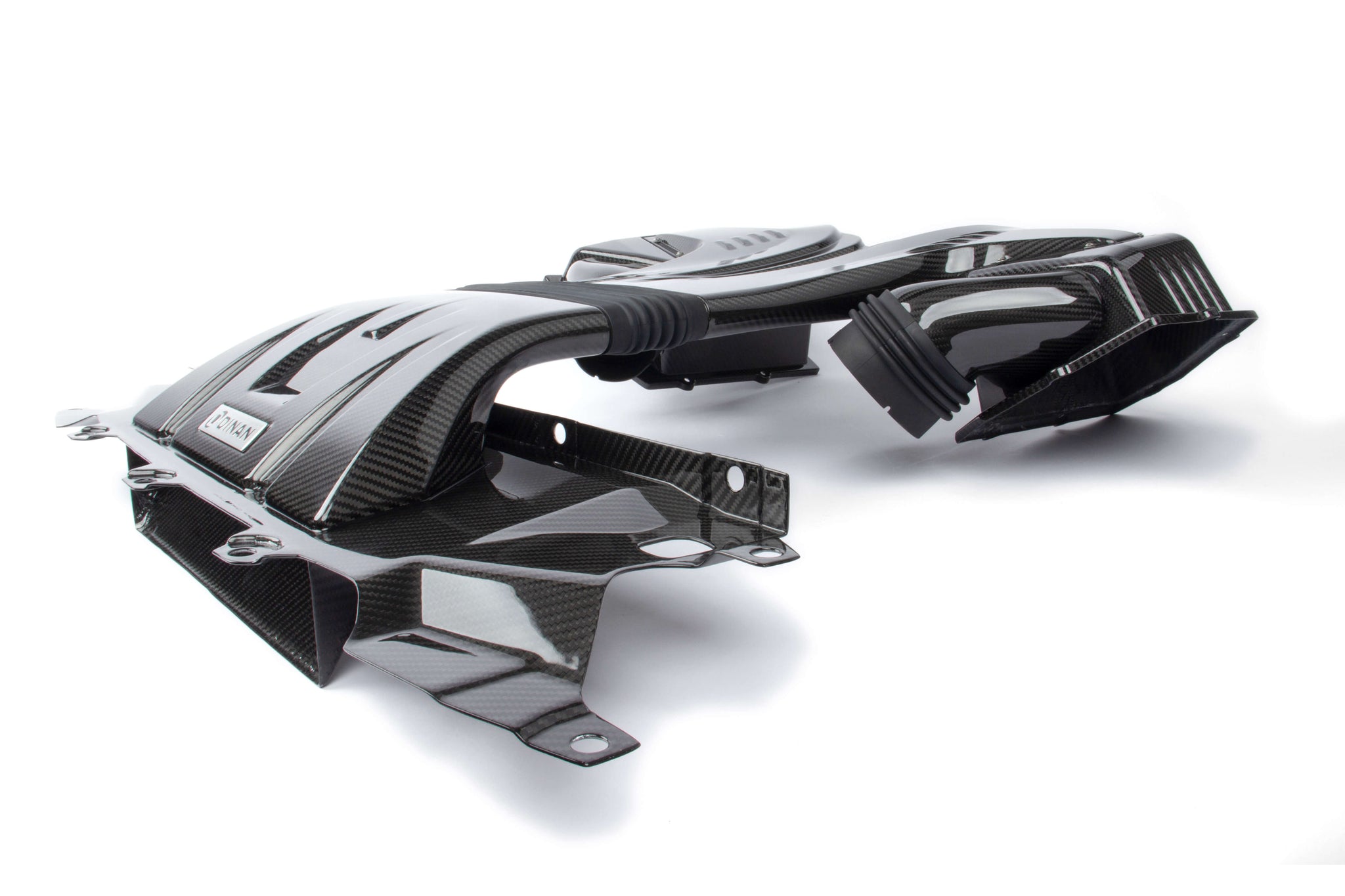

Dinan Cold Air Intake for BMW X5 M F95 X6 M F96 (20-26) XM G09 (23-26) X5 X6 X7 M60i (23-26) Carbon Fiber D760-0056

Fitment Information

• BMW X5 M F95 4.4L Twin-Turbo V8 (2020, 2021, 2022, 2023, 2024, 2025, 2026)
  • Includes X5 M & X5 M Competition
• BMW X6 M F96 4.4L Twin-Turbo V8 (2020, 2021, 2022, 2023, 2024, 2025, 2026)
  • Includes X6 M & X6 M Competition
• BMW XM G09 4.4L Twin-Turbo V8 Plug-in Hybrid (2023, 2024, 2025, 2026)
• BMW X5 M60i G05 4.4L Twin-Turbo V8 (2024, 2025, 2026)
• BMW X6 M60i G06 4.4L Twin-Turbo V8 (2024, 2025, 2026)
• BMW X7 M60i G07 4.4L Twin-Turbo V8 (2023, 2024, 2025, 2026)


Emissions Compliance

• This part does not have a CARB EO # and cannot be sold or shipped to California.

Specs & Features

• Carbon Fiber overload – the good kind.

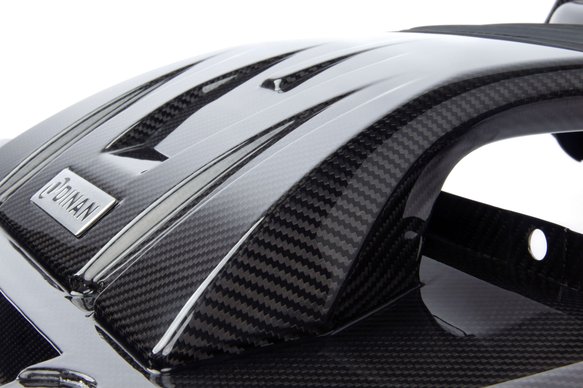

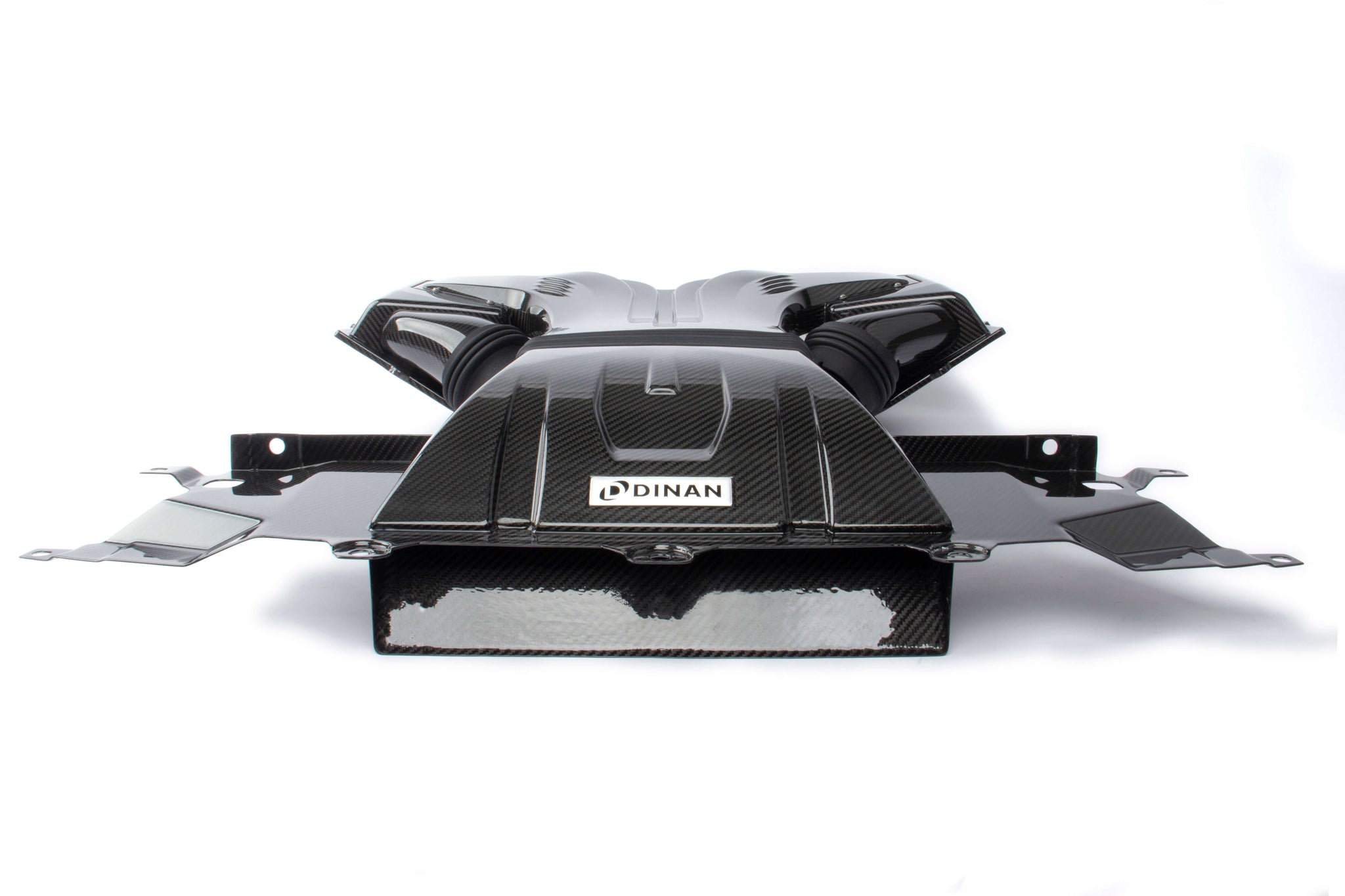

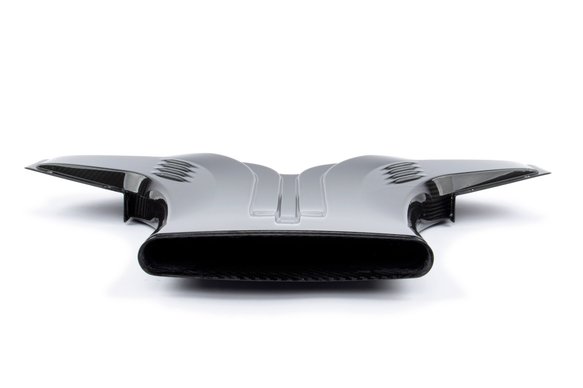

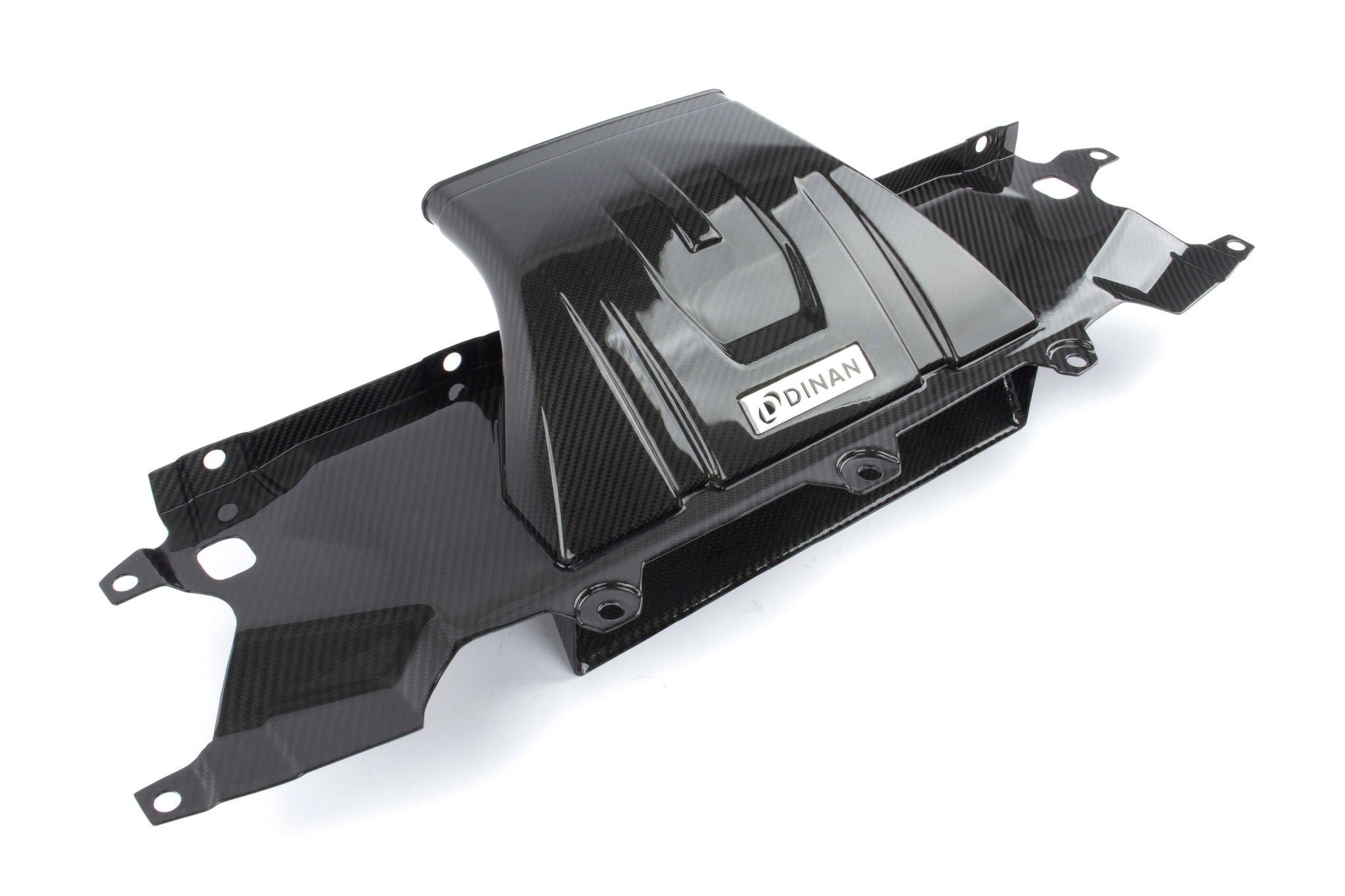

• Center inlet/scoop doubles as a visually pleasing carbon fiber engine cover.
• Increased turbo efficiency, reliability, and head room.

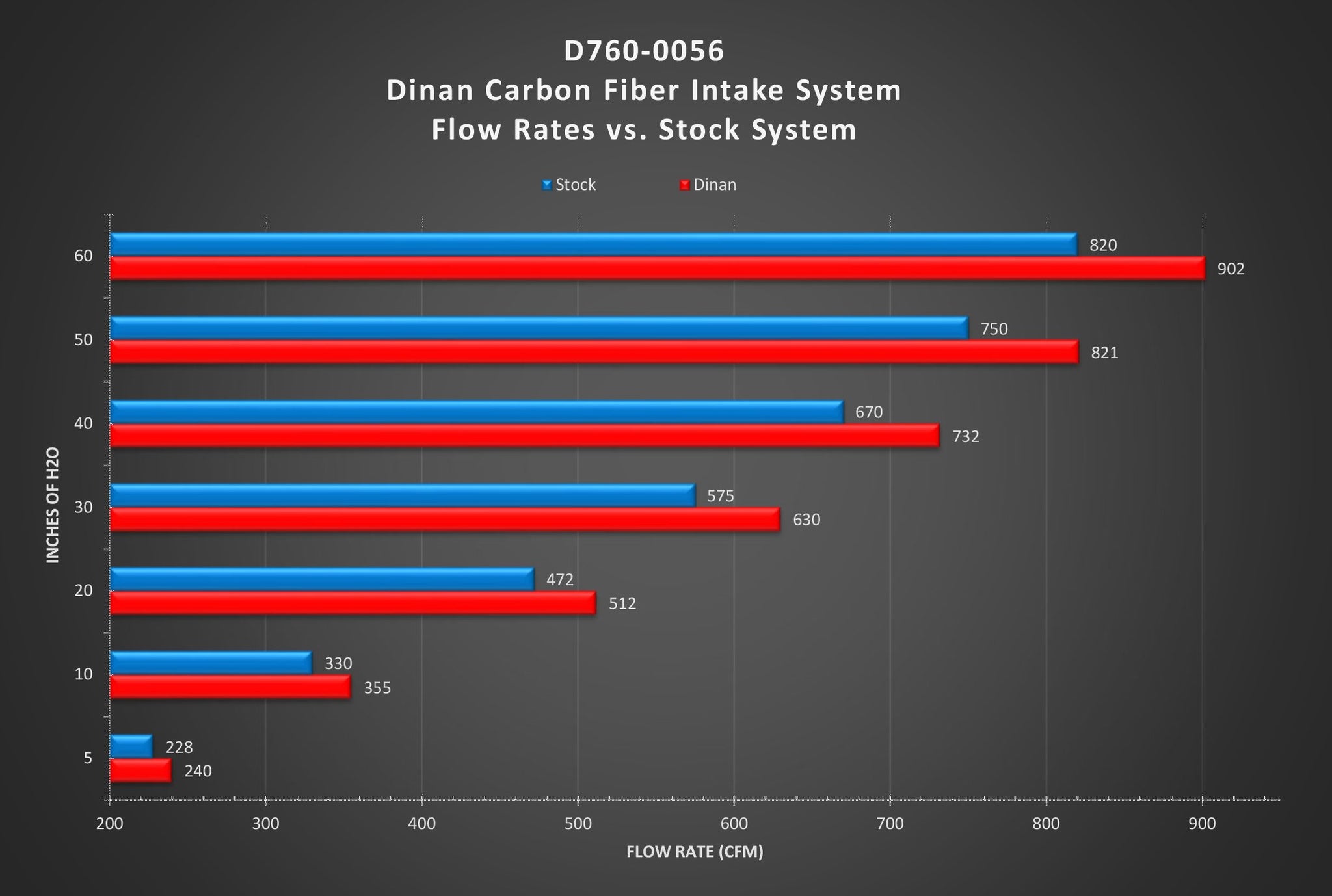

• More Flow: 10% greater than stock (Stock: 575 CFM, Dinan: 630 CFM @ 30" H2O per bank).
• Increased sound for aural satisfaction at full load.
• Improved throttle response.
• 86% increase in inlet cross sectional area via the center inlet/scoop (secondary inlet) for maximum airflow.

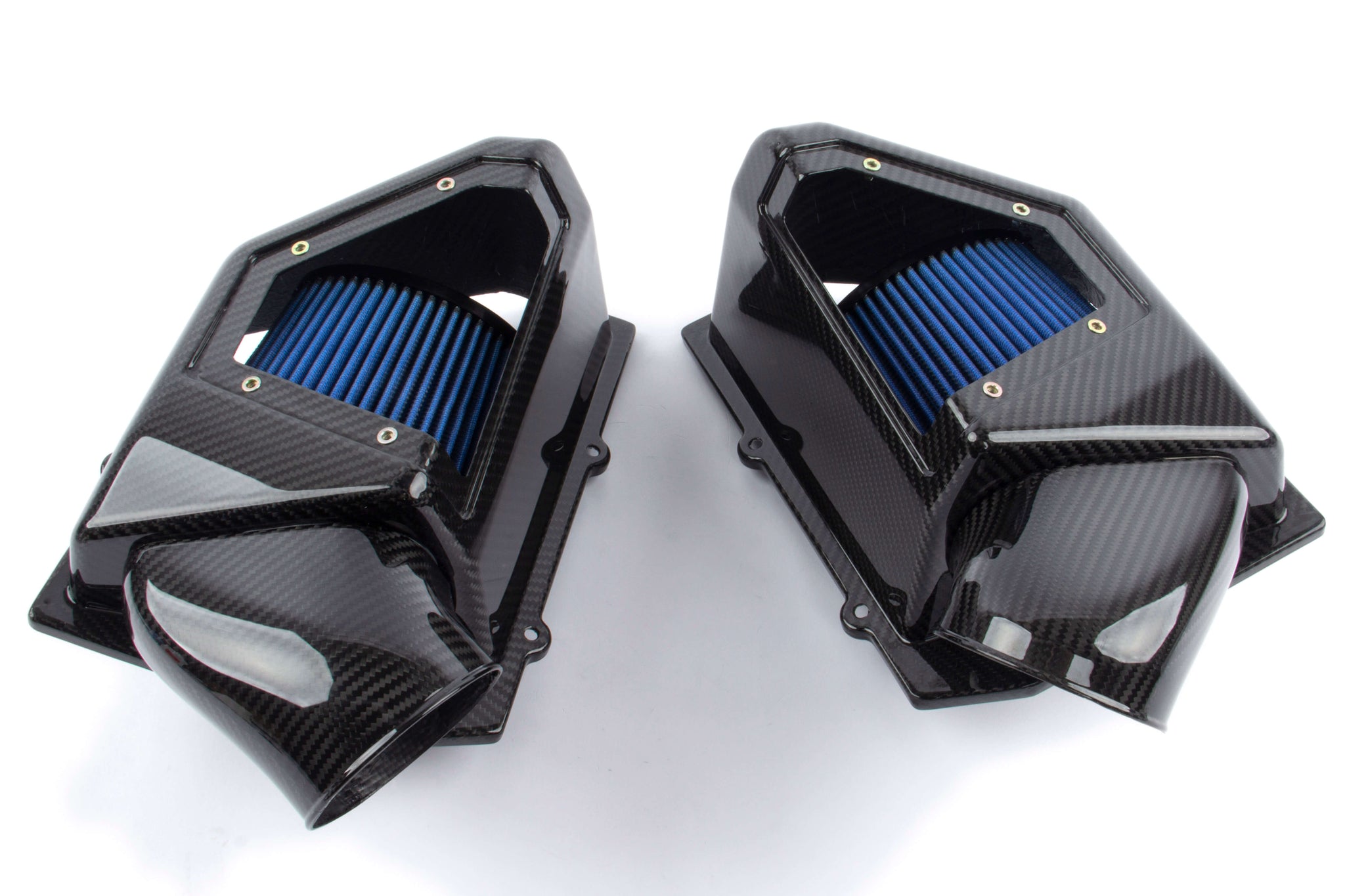

• Larger volume air boxes (56% larger than stock) that completely seals allowing an increased volume of air to be utilized.

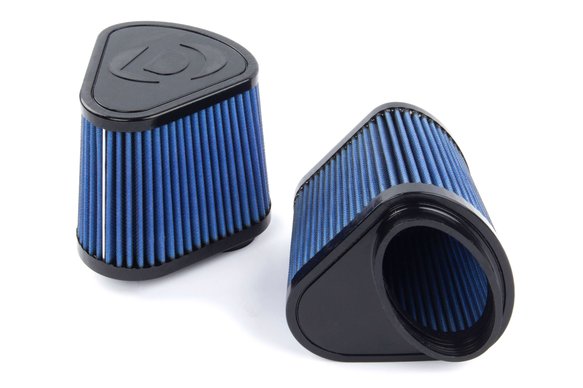

• 46% increase in filter area (stock: 51in², Dinan: 82in² per side) for optimum flow.

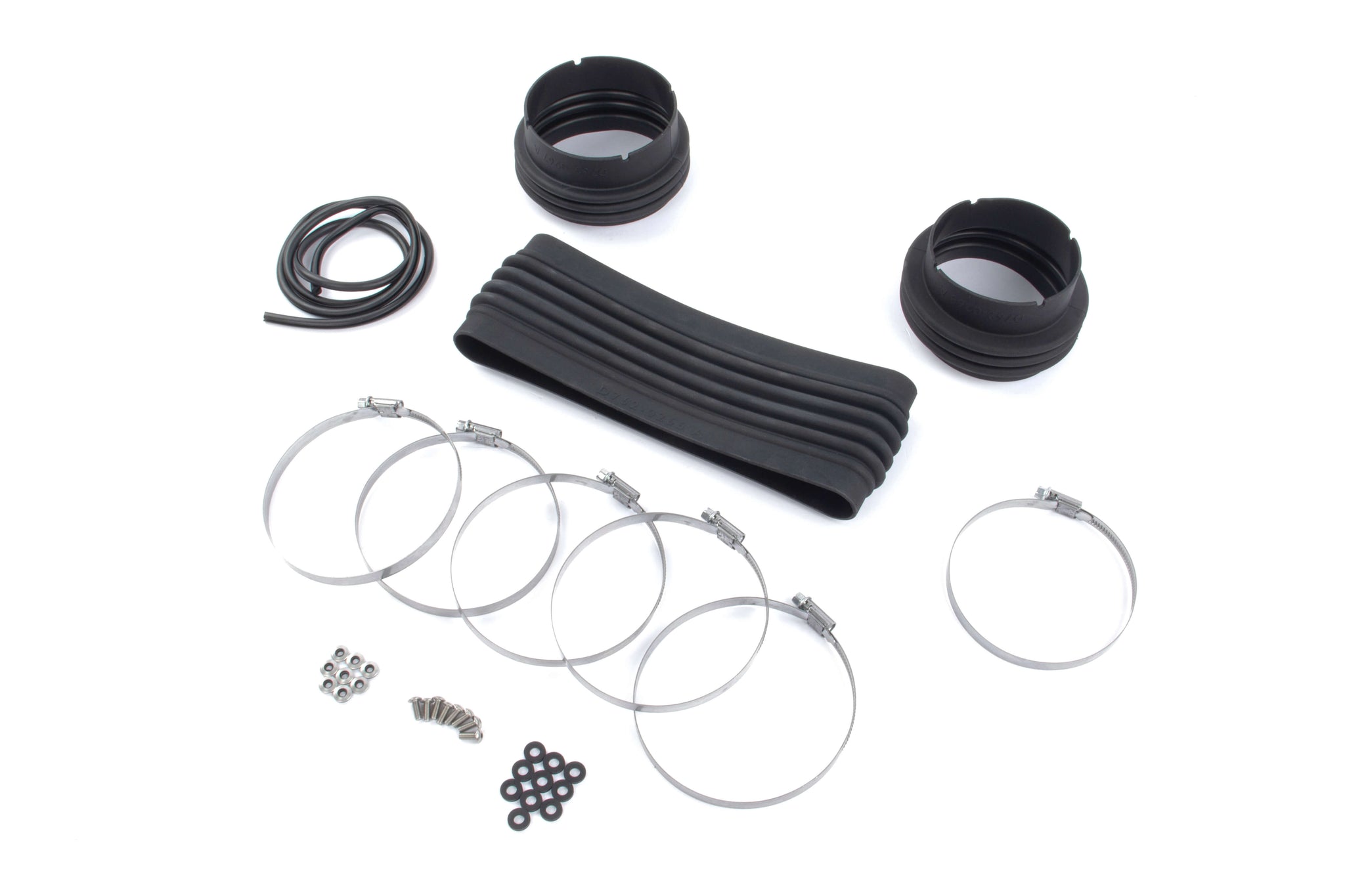

• Bolt-on installation.


Product Description

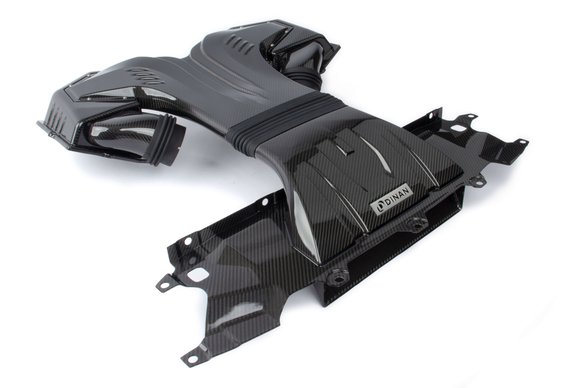

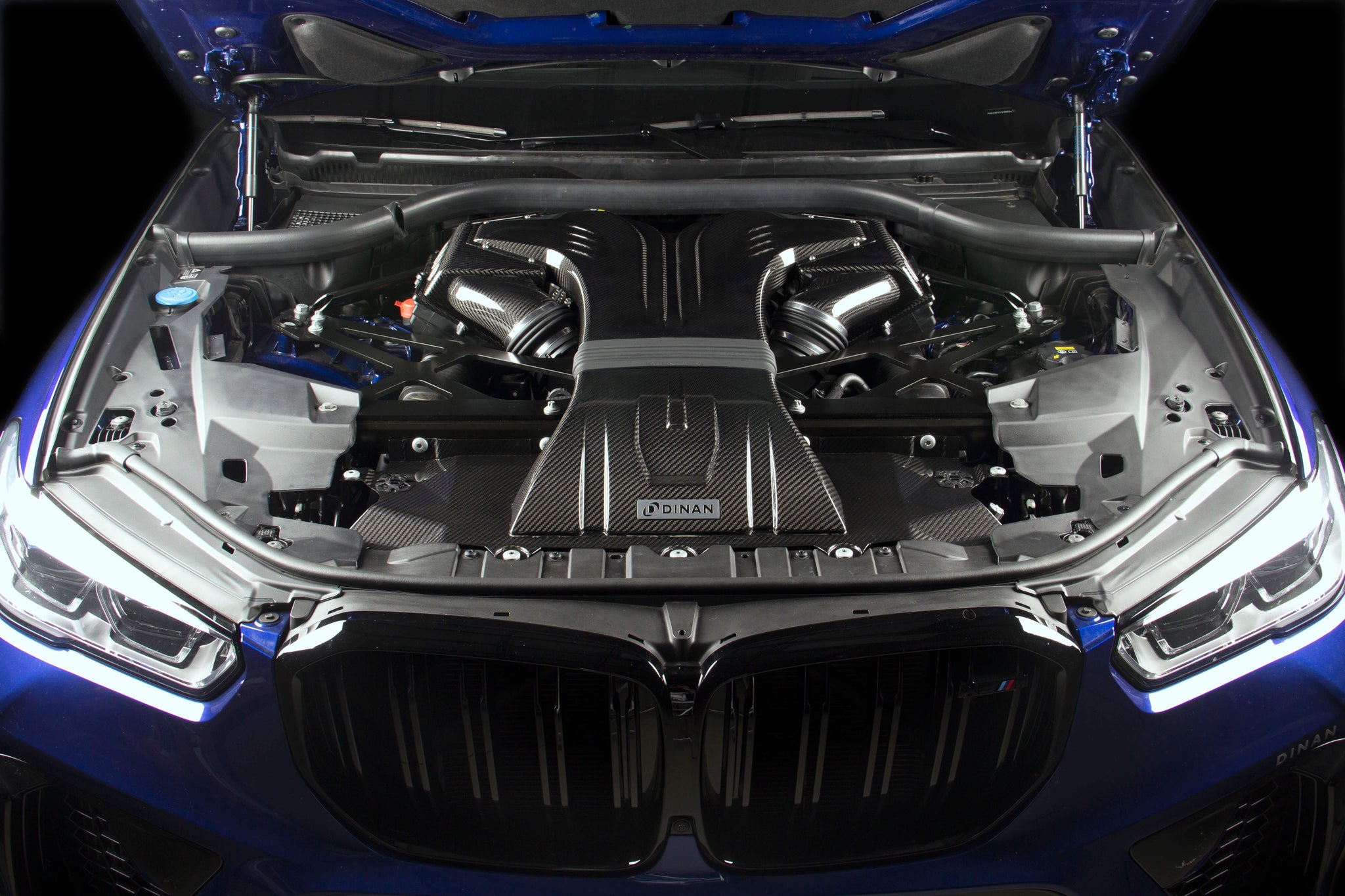

Being the quintessential performance SUV in the marketplace, the X5M is the perfect canvas to showcase a work of art for the entire enthusiast community to see. Creating an indelible mark upon the vehicle, and in particular the engine bay, the Dinan carbon fiber cold air intake is not just a work of art but a piece worthy of bearing the label of "masterpiece." With gloss UV coated carbon fiber stretching from the front of the engine compartment to the rear it's hard not to be impressed by the sheer volume of carbon. The majority of it comprised of a fully functional secondary air inlet which doubles as an ornate engine cover. As such, signature BMW engine cover design elements signifying the cylinder count are integrated into the design for factory like continuity and a nod to a long history. The cosmetic beauty of the system does not solely derive from the presence of carbon however. The immense central passage also purposefully bisects the engine compartment to ensure the factory bracing, which is impressive on its own, is visible. With both OEM and Dinan elements showcased simultaneously the overall engine bay retains symmetrical harmony and commands attention at all corners. Beyond outward appearances and upon closer inspection details emerge which showcase the level of care taken in the intake systems design beyond simply aesthetics. For instance, the secondary air source is deriving its contents from an unobtrusive central hood scoop located behind the front grilles that feeds into the newly formed inlet hump at the front of the engine bay.

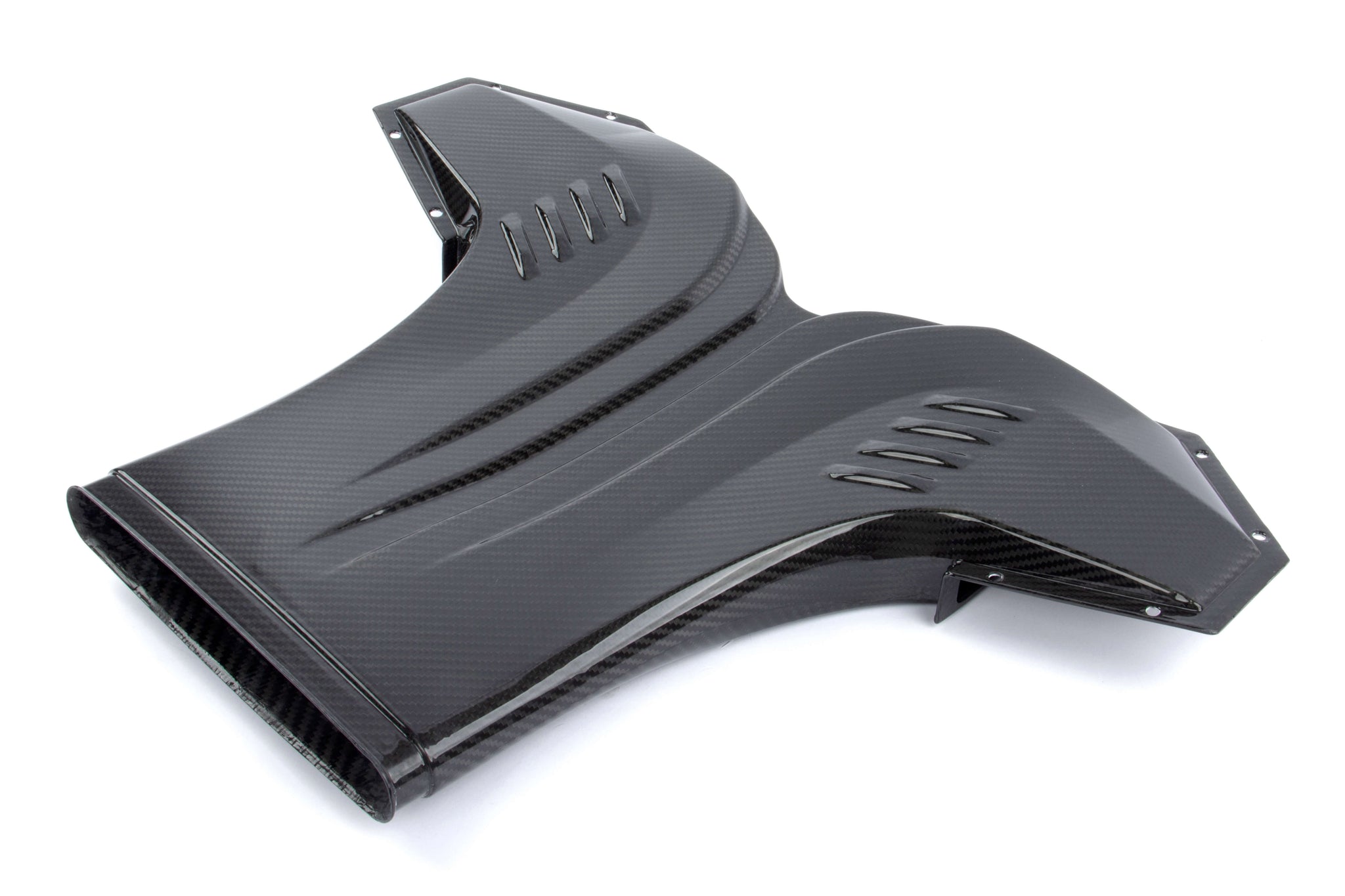

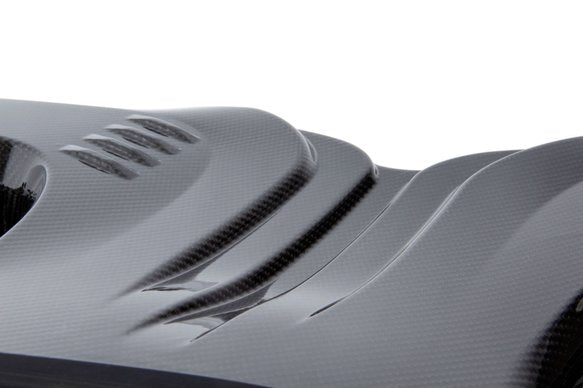

Through constant CFD analysis, the design of the scoop and secondary inlet continually underwent improvements in order to meet the demand of an even and un-agitated air supply to each air box. In its final form, accents in the carbon both provided a visual embellishment as well as created the outward manifestations of the runners used to direct and smooth the secondary air flow. The additional air flow ultimately supplements the factory inlet locations on both the left and right air boxes with ambient air from outside of the engine compartment. These air boxes have been enlarged and equipped with massive filters to handle this increased volume and together with the rest of the system allow the intake to flow as efficiently as possible. While the stock intake system is adequately suited to support up to stage 1 power levels that does not mean there is no performance benefit when upgrading to the Dinan system. Besides its jaw dropping appearance the biggest advantage of the system, by virtue of additional and optimized flow, is the reduction of the pressure depression in the stock system. This equates to the turbo having to work less in order to achieve targeted power. With the turbo working more efficiently this also means a lower pre-turbine backpressure, lower turbocharger shaft speeds, lower turbocharger compressor discharge temperatures, and for the ability to achieve higher boost pressure levels. Paired with the natural improvement to throttle response, a bump to the acoustics, and an unequalled visual appeal the Dinan F9x X5M/X6M carbon fiber intake system can wear the self-appointed moniker of "masterpiece" without trepidation.
