Upgrade your 3rd Gen Toyota 4Runner cooling system with CSF's 2-row, 42mm all-aluminum radiator, engineered for increased cooling capacity during daily driving, towing and demanding off-road use.
Fitment Information
- Toyota 4Runner 3rd Gen N180 with 3.4L V6 5VZ-FE engine (1996, 1997, 1998, 1999, 2000, 2001, 2002)
- Toyota 4Runner 3rd Gen N180 with 2.7L 4-cylinder 3RZ-FE engine (1996, 1997, 1998, 1999, 2000)
- Fits automatic and manual transmission models
Fitment Note
- The 2.7L application ends with the 2000 model year.
- The 3.4L V6 application continues through the 2002 model year.
- The built-in transmission cooler connects to the factory cooler lines on automatic-transmission models.
- Transmission cooler fittings remain unused on manual-transmission applications.
- Designed as a true drop-in replacement using the factory mounting locations, inlet, outlet and fan shroud.
Specs and Features
- CSF part number: 7210
- 2-row, 42mm ultra-high-performance aluminum core
- CSF B-Tube cooling technology

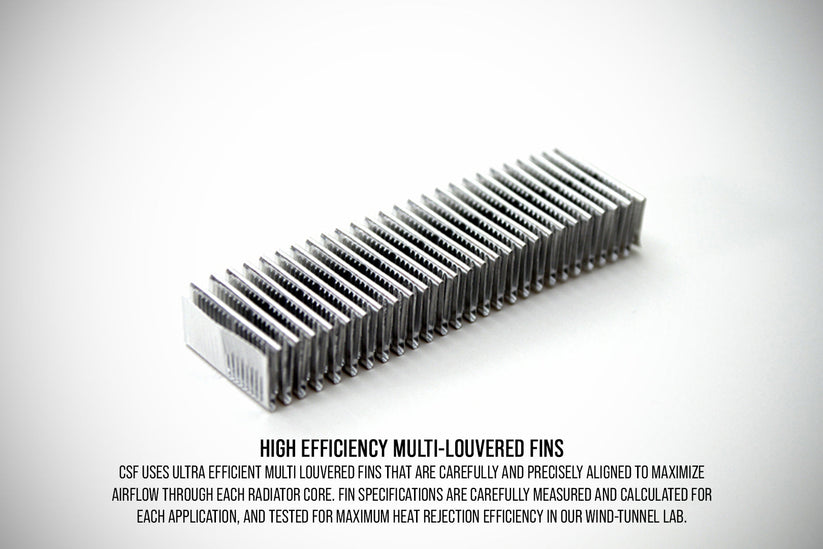

- 6.5mm multi-louvered fins for increased surface-area contact

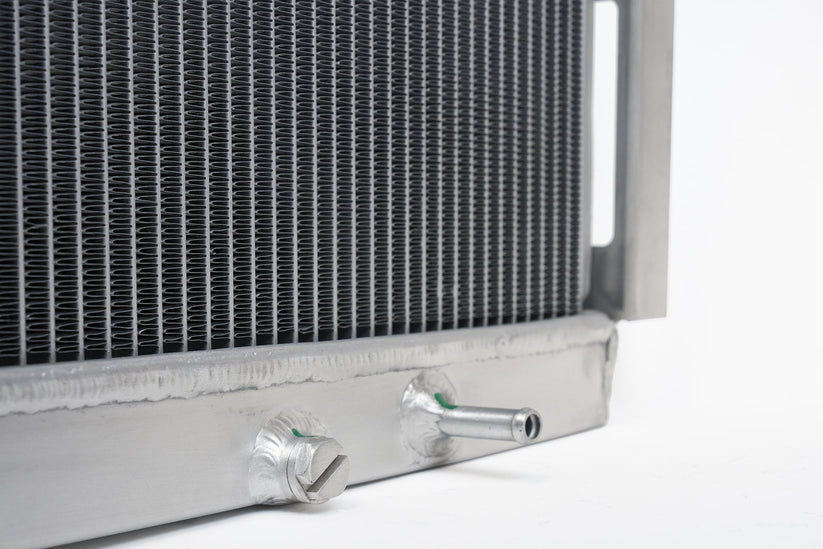

- Built-in heavy-duty 5-plate transmission oil cooler in the lower tank
- 100% all-aluminum construction

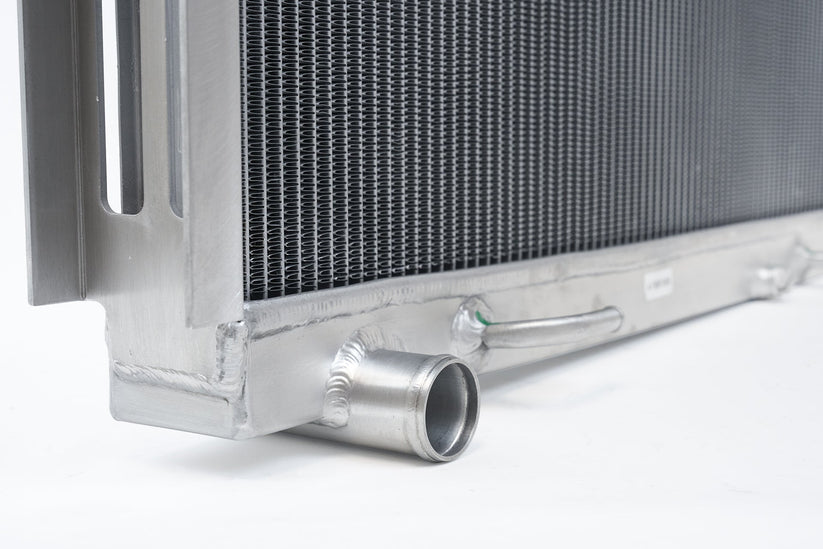

- TIG-welded aluminum end tanks
- CNC-machined mounting brackets
- OEM-style inlet and outlet locations
- Smooth satin aluminum finish
- True plug-and-play installation with no cutting, trimming or permanent modifications required
- Pre-cut double-sided foam strips included to help seal the factory fan shroud against the radiator
- Individually leak and pressure tested
- 2-year limited CSF warranty
- Designed for automatic and manual transmission models
Product Description

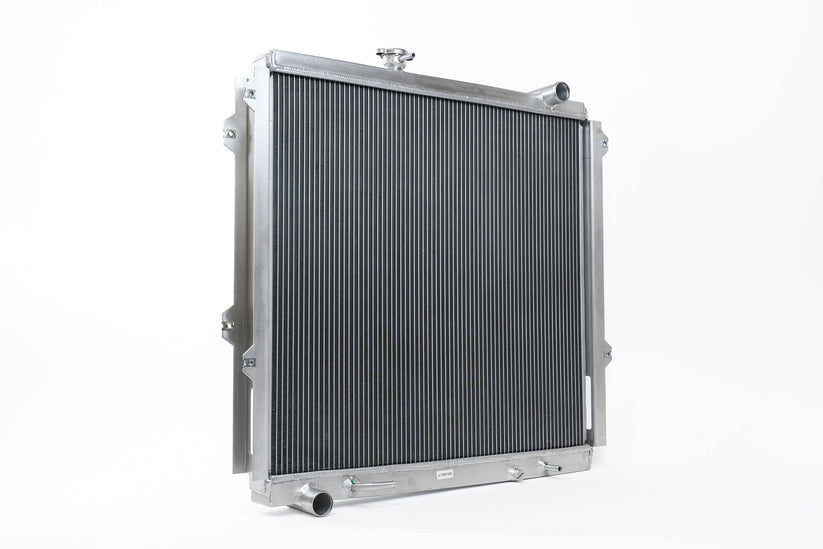

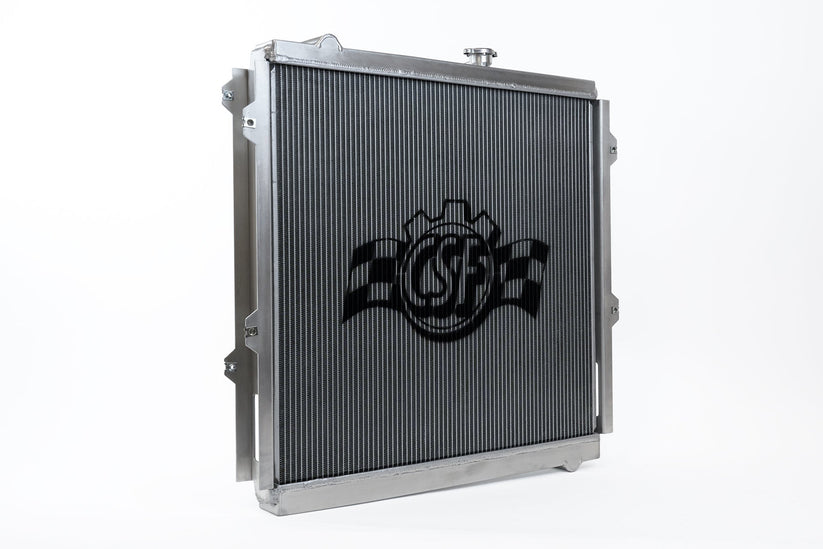

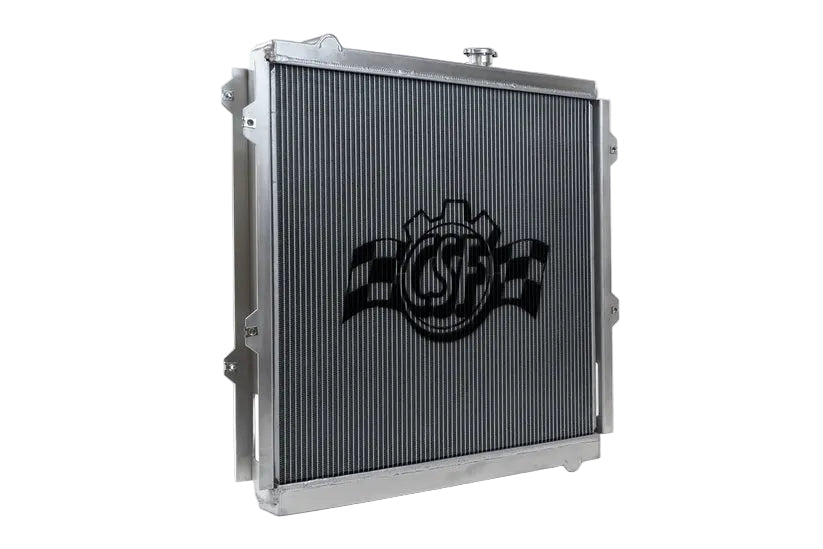

The CSF 7210 is a heavy-duty all-aluminum radiator developed specifically for the 3rd Gen Toyota 4Runner. Its 42mm, 2-row core increases coolant capacity and heat-transfer area compared with the factory-style plastic-tank radiator.

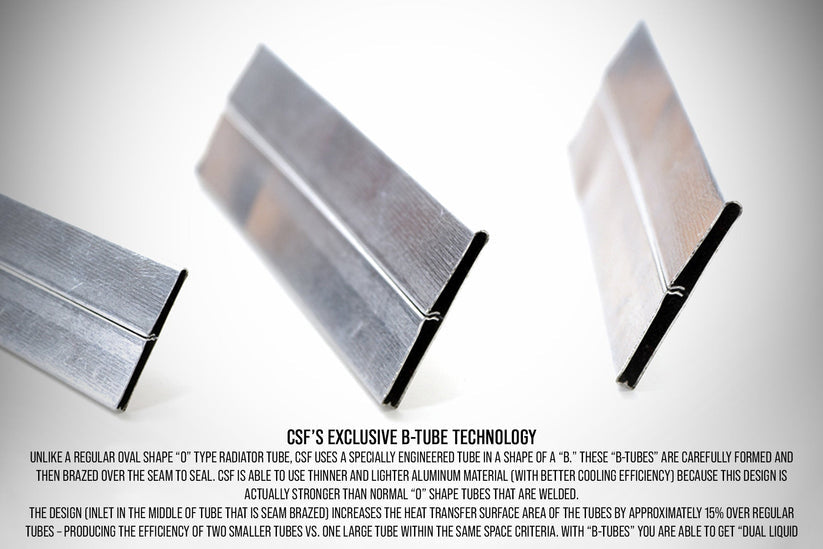

CSF's B-Tube design uses tubes formed and brazed with an internal center seam, creating additional surface area for improved heat transfer. Multi-louvered fins help move heat from the tubes into the air passing through the radiator while maintaining efficient airflow through the core.

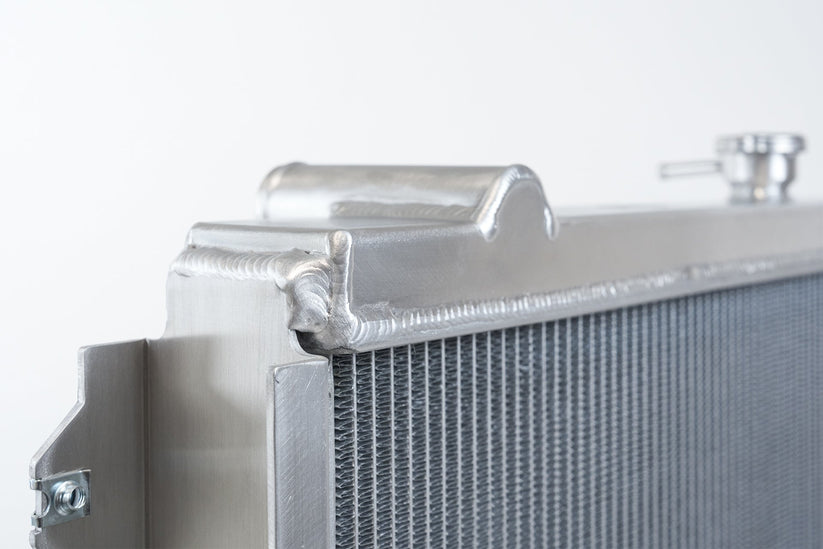

The aluminum end tanks are TIG welded to the core, eliminating the crimped plastic-tank joints found on the original radiator. Factory-style mounting points and hose locations allow the CSF radiator to install without cutting or modifying the vehicle.
Built for Towing and Off-Road Use
Oversized tires, low-speed trail driving, steep climbs and towing can place additional load on the engine and transmission. The CSF 7210 combines its larger aluminum core with a built-in 5-plate transmission cooler to help manage the additional heat generated under these conditions.
This radiator is also suitable for daily-driven 4Runners that need a durable replacement for an aging or leaking factory radiator.
Installation Notes
- Inspect the upper and lower radiator hoses, clamps, thermostat and fan clutch while the cooling system is drained.
- Flush old or contaminated coolant from the system before installing the new radiator.
- Connect the factory transmission cooler lines on automatic-transmission models.
- Install the supplied foam strips between the radiator and factory fan shroud to help prevent air from bypassing the core.
- Refill with the coolant specified for the vehicle and bleed all trapped air from the system.
- Check for coolant and transmission-fluid leaks after the engine reaches operating temperature.
OEM Part Number Cross References
- 16410-AZ011
- 16400-75180
- 16400-75160
- 16410-YZZAJ
Pairs Well With
- HPS Silicone Radiator Hoses for Toyota 4Runner 3.4L V6 (1996-2002)
- HPS Silicone Heater Hoses for Toyota 4Runner 3.4L V6 (1996-2002)
The related HPS hose kits listed above fit the 3.4L V6 application only. Verify the hose kit's transmission and rear-heater requirements before ordering.
About CSF
CSF specializes in automotive cooling products for street, performance and off-road applications. Its high-performance radiators combine application-specific mounting provisions with upgraded cores, all-aluminum construction and individual pressure testing.
