CSF Oil Cooler for BMW E36 323i 323is 325i 325is 328i 328is / M3 (92–99) Z3 E36/ 7/ E36/ 8 (97–02) Race-Spec Dual-Pass All- Aluminum 8240

Fitment Information

• BMW 323i / 323is / 325i / 325is / 328i / 328is E36 (1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999)
• BMW M3 E36 (1995, 1996, 1997, 1998, 1999)
• BMW Z3 Roadster E36/7 (1997, 1998, 1999, 2000, 2001, 2002)
• BMW Z3 Coupe E36/8 (1999, 2000, 2001, 2002)
• BMW M Roadster E36/7 (1998, 1999, 2000, 2001, 2002)
• BMW M Coupe E36/8 (1999, 2000, 2001, 2002)

Fitment Notes

• Designed for S54 swap vehicles retaining factory air conditioning (A/C).

• Compatible only when used with CSF #7211 S54 Swap Radiator.

• Uses OEM S54 oil cooler line connections.

• CSF recommends using Euro-Spec E36 M3 oil cooler lines for S54 swap applications.

• OEM E46 M3 S54 oil cooler lines may also be used but may require minor bending and adjustment during installation.

• CSF #8241 Adapter Fitting Kit can be used to secure OEM S54 oil cooler lines and provides compatibility with custom -10 AN oil line setups.
• Reference Part Numbers:
  • BMW E46 M3 Oil Cooler Lines: 17222283209
  • BMW E36 Euro-Spec M3 Oil Cooler Lines: 17212227235

Specs & Features

• Unique Top/Bottom Dual-Pass Design for Maximum Surface Area and Flow

• Fully TIG-Welded Extruded End Tank Design for Superior Reliability & Durability

• Turbulated Heavy-Duty Bar/Plate Design for the Most Reliable & Durable Oil Cooler Available

• 8 Rows of Maximum Cooling with a High Density Multi-Louvered Fin Pitch Design

• Designed to Work with CSF's S54 Swap All-Aluminum Radiator (CSF #7211)

• Motorsport Silver Finish

• Accepts Factory Oil-Line Connections

• For S54 Swap Vehicles with Air Conditioning (A/C)

• For S54 Swap Vehicles without Air Conditioning (A/C) see CSF #8032

Product Description

The S54 is arguably one of the greatest BMW motors of all time. Power delivery, balance, and sound are top notch. While it doesn't compare in power potential to newer turbo powered inline 6 motors, many enthusiasts still love and crave the NA power delivery that BMW was and still is famous for. Despite not being the most powerful option, the S54 Swap has become increasingly popular in the BMW community for the E36 Chassis.

Even though the swap is an easy "fit", the S54 swap does require quite a bit of work to get working an older BMW chassis. CSF has seen the struggle with the cooling system adaptations and now has a solution. Enter the CSF BMW S54 Swap Radiator and Oil Cooler for the E36 Chassis.

Design & Engineering

CSF's industry-leading reputation and deep knowledge of high-performance BMW cooling systems offered an edge when designing such a unique cooling system. Combining the experience from producing the best cooling systems for the E36 and E46, CSF was able to design and produce an innovative solution that covers the widest range of S54 swap customers possible.

Any who has ever tracked an E46 M3 or even just driven one hard knows how quickly the oil temperatures can climb. For the E46 M3, CSF developed the Dual Pass Race Spec Oil Cooler (CSF #8032) with Rogue Engineering. This has been the go to solution for the E46 M3 community and will work on S54 Swaps when paired with this radiator. Why are there two oil coolers then you might ask? Because of the chassis differences, the CSF #8032 will not allow owners to retain air conditioning with their S54 Swap.

Enter the new CSF S54 Swap Race Spec Oil Cooler. This new oil cooler is shorter on the right hand side allowing owners to run the A/C lines in the OEM path. Even though the #8240 is slightly smaller than the #8032, you can expect similar performance levels as they both feature a dual pass design with 8 cooling rows and are the same turbulated heavy-duty bar/plate construction.

Both oil coolers utilize the S54 OEM oil line connections. However, CSF also offers a fitting kit with -10 AN hookups (CSF #8241) for customers looking to run custom oil lines.

Fitting Adapters

CSF offers a fitting adapter kit for -10 AN Oil Lines (CSF #8241). AN lines are a very popular and common upgrade for engine swaps. Offering this fitting makes the installation process easier and provides additional options for customers and installers.

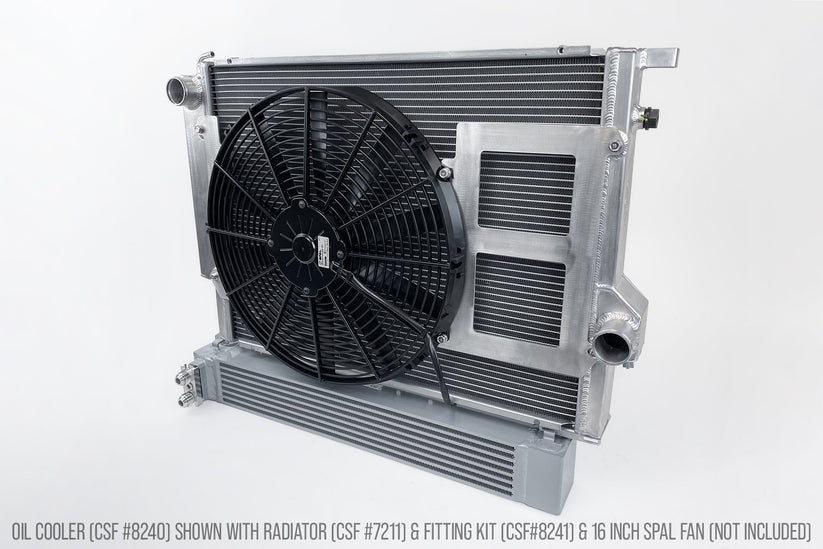

Note: Image is a representation of the quality and design of the CSF radiator. Your application will look different due to your OEM radiator style.
