Fitment Information
- Universal
Specs & Features
- All-In-One Solution: Designed to solve the common problem of insufficient fan wiring, especially when powerful electrical fans are installed on chassis originally equipped with mechanical fans.
- Weatherproof Relay/Fuse Box: Includes a small, durable relay/fuse box with an easy-to-adapt mounting bracket for hassle-free installation.
- Fireproof Sleeving: Equipped with fireproof sleeving for enhanced safety and durability.
- Clear Labeling: Yellow labels on each lead eliminate guesswork, making installation straightforward.
- High-Quality Wiring: All wires are TXL thin jacketing wire for superior performance.
- Thermo-Switch Included: Comes with a 1/8 NPT thermo-switch for accurate temperature control.
- Compatibility: Fits Chase Bays Tucked Radiators (2018-on) with (2) 1/8 NPT ports; can be adapted to other radiators with a 1/8 NPT female weld-on.
- Grounding Made Easy: "GND" wire is easily grounded to a clean surface with a non-painted steel or stainless steel bolt.
- Versatile Power Connection: Main power wire ("battery") can be connected directly to the battery, alternator, or starter, or to a switched 12V source for flexible installation options.
- Proper Wiring Gauge: Fan and relay power wires are 14awg, ensuring sufficient power delivery.
- Certified Crimping: All wires crimped with a certified Mil-Spec pneumatic crimper for secure connections.
- Nickel-Plated Terminals: Terminals are nickel-plated for reliable and durable connections.
- Deutsch Connectors: High-quality Deutsch connectors used for fan connections, ensuring robust performance.
Product Description

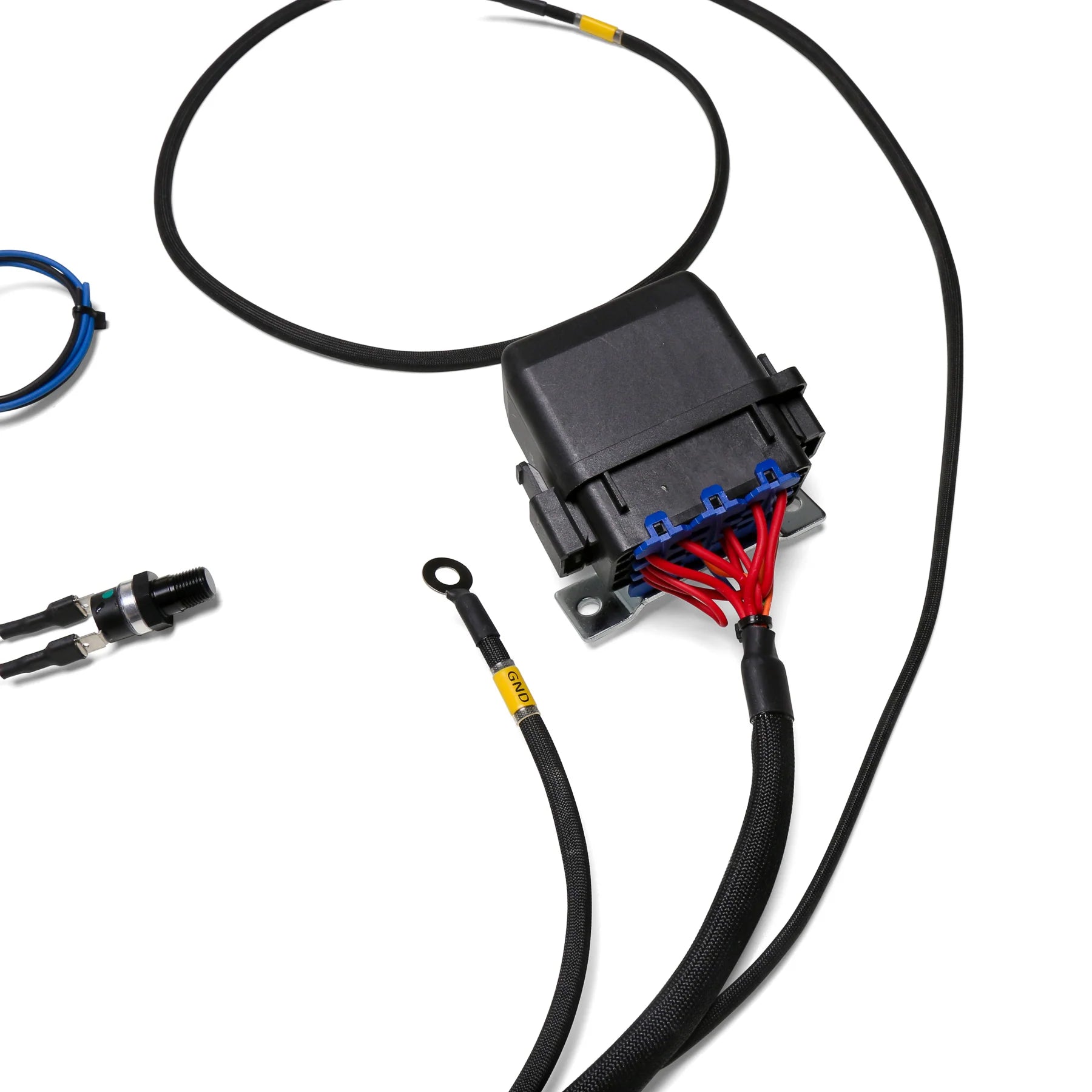

Chase Bays's Radiator Fan Wiring Kit addresses a common problem: insufficient wiring for powerful electrical fans in vehicles originally equipped with mechanical fans. Factory A/C relays with small gauge wiring or a single relay powering two fans lead to underpowered fans and rising temperatures. Chase Bays's solution is a Dual Fan Relay Wiring Kit that's easy to install and looks great. Unlike other kits that come with basic components, this kit features a weatherproof relay/fuse box, fireproof sleeving, and clearly labeled TXL thin jacketing wires. Installation is straightforward: connect the "thermosw" wires to the included 1/8 NPT thermo-switch, the "fans" wires to the fans, ground the "GND" wire to a clean metal surface, and connect the "battery" wire to the battery, alternator, or starter for continuous fan operation. For switched operation, connect the battery lead to a switched 12v source. The kit uses proper 14awg wire crimped with Mil-Spec pneumatic crimpers, nickel-plated terminals, and Deutsch connectors for reliable, high-quality connections. Chase Bays's wiring kit ensures full-powered fans and stable engine temperatures with a professional, easy-to-install design.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.More in this category
Chase Bays Fan Relay Wiring Harness
