BOOST Products DCV800 High-Performance Oil Catch Can Kit -12 AN

The BOOST Products DCV800 is a 0.8-liter, -12 AN oil catch can kit for high-flow crankcase ventilation on street, circuit, and drag-racing builds.

Fitment Information

• For custom engine builds using -12 AN crankcase-ventilation plumbing
• Suitable for closed, recirculating catch-can systems or open vent-to-atmosphere configurations

Fitment Note

This is a build-specific crankcase-ventilation component, not a vehicle-specific kit. It does not include vehicle-specific hoses, hose ends, mounting brackets, or installation hardware. Confirm engine-bay space, mounting location, routing, and the required emissions configuration before ordering.

Specs and Features

• Catch Can Details
  • BOOST Products DCV800 high-performance oil catch can kit
  • Manufacturer part number: CC-OIL-02
  • Capacity: 0.8 liters, 27 fl oz, 0.85 quart
  • Matte black anodized finish
  • UPC: 4250815864564

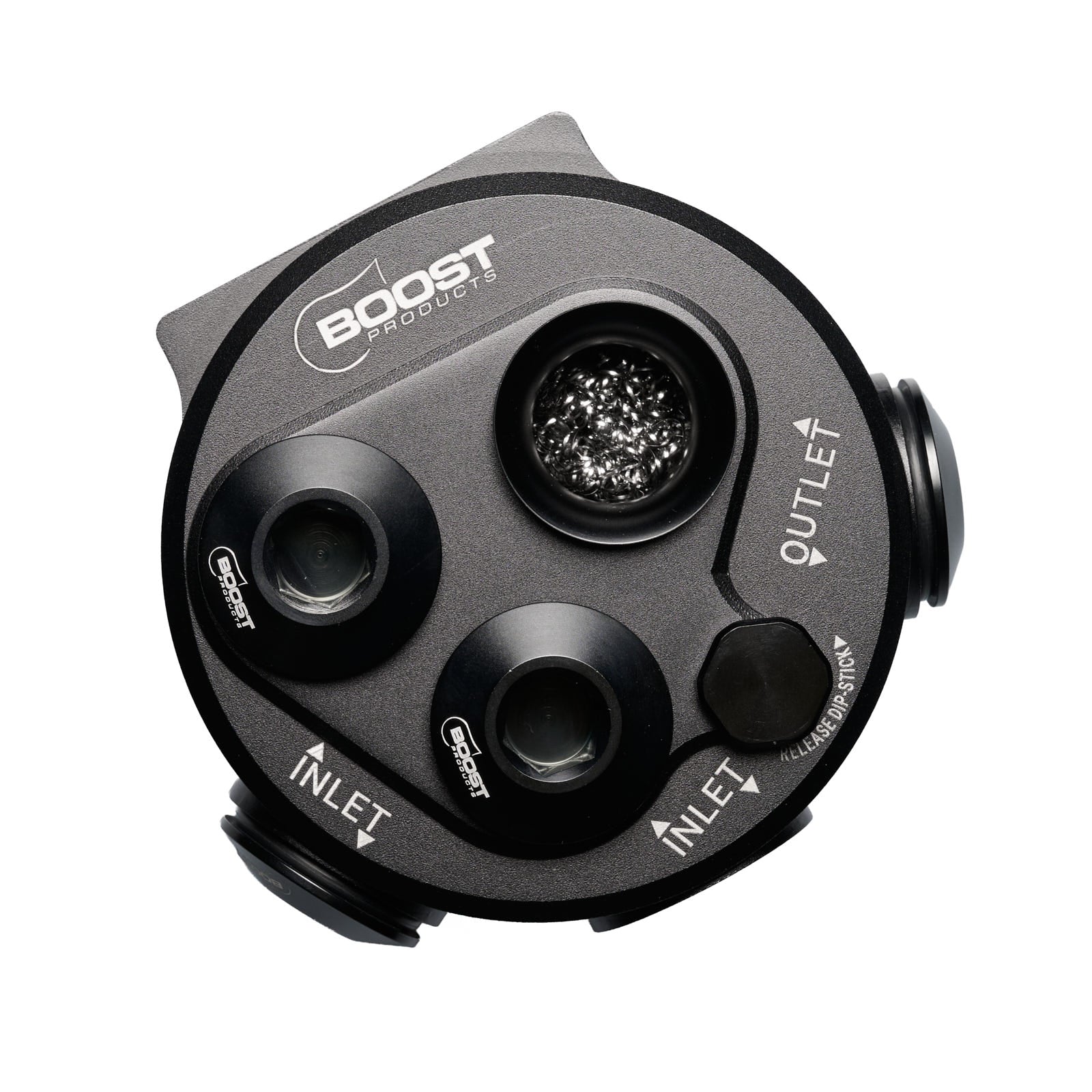

• Ports and Routing
  • Four -12 AN inlets
  • Two -12 AN outlets
  • Can be configured as a closed recirculating system or an open vent-to-atmosphere system
  • Integrated 1/8-inch NPT bottom drain provision
• Separation and Serviceability

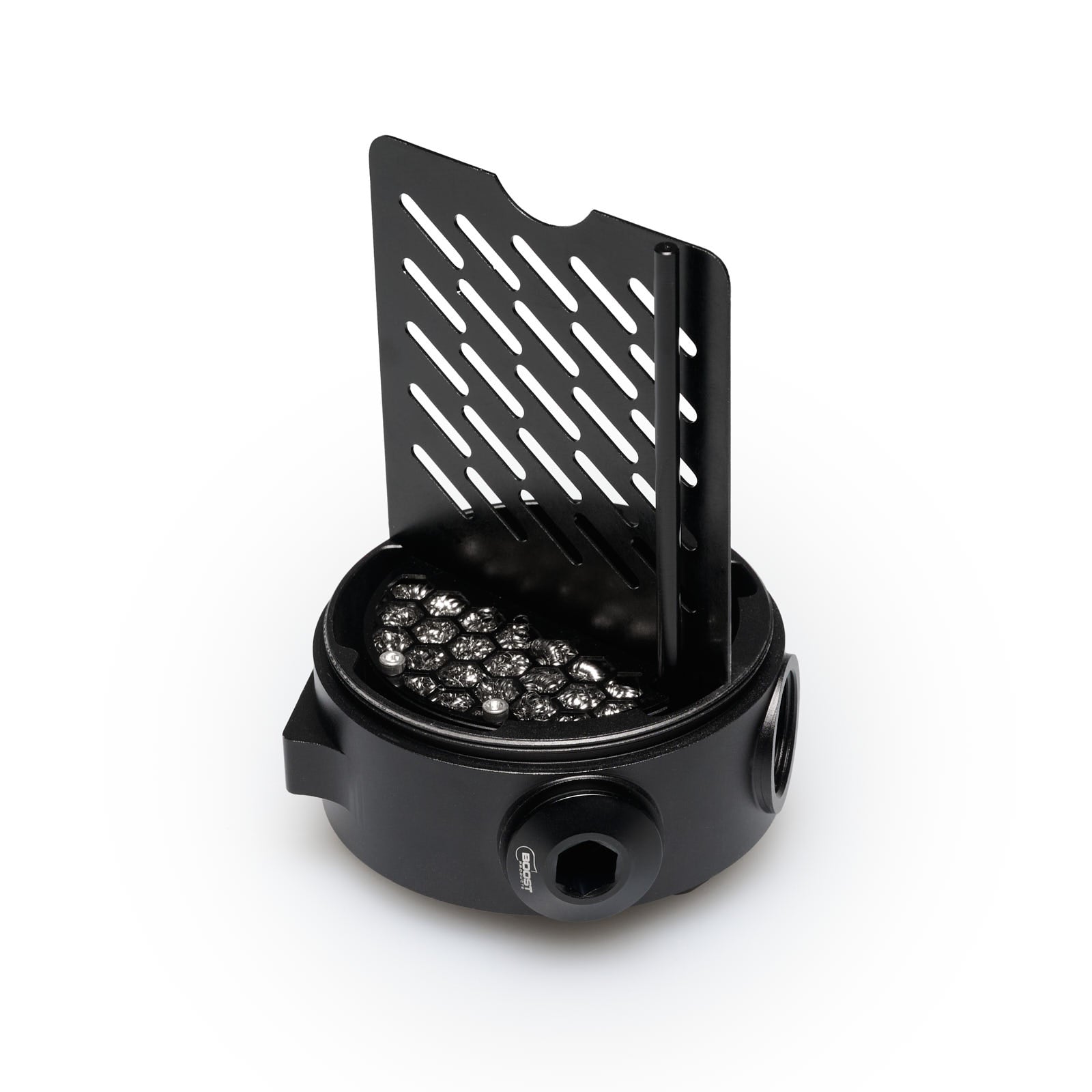

  • Internal baffle plate helps limit oil re-ingestion into the intake system
  • Stainless-steel wool in the inlet section for oil-vapor separation
  • Integrated dipstick for quick oil-level checks
  • Fully disassemblable for cleaning
  • Replacement internal components are available separately from BOOST Products
• Mounting and Included Components
  • Two integrated M8 mounting points
  • One DCV800 oil catch tank
  • Four -12 AN Slimline plugs
  • One 1/8-inch NPT bottom-drain plug
  • One -12 AN male atmospheric trumpet

Product Description

The DCV800 is made for engines that need more crankcase breathing capacity than a small two-port catch can can provide. Its 0.8-liter tank, four -12 AN inlets, and two -12 AN outlets give a custom build the flexibility to route multiple valve-cover, breather, or crankcase connections into one serviceable catch-can system.

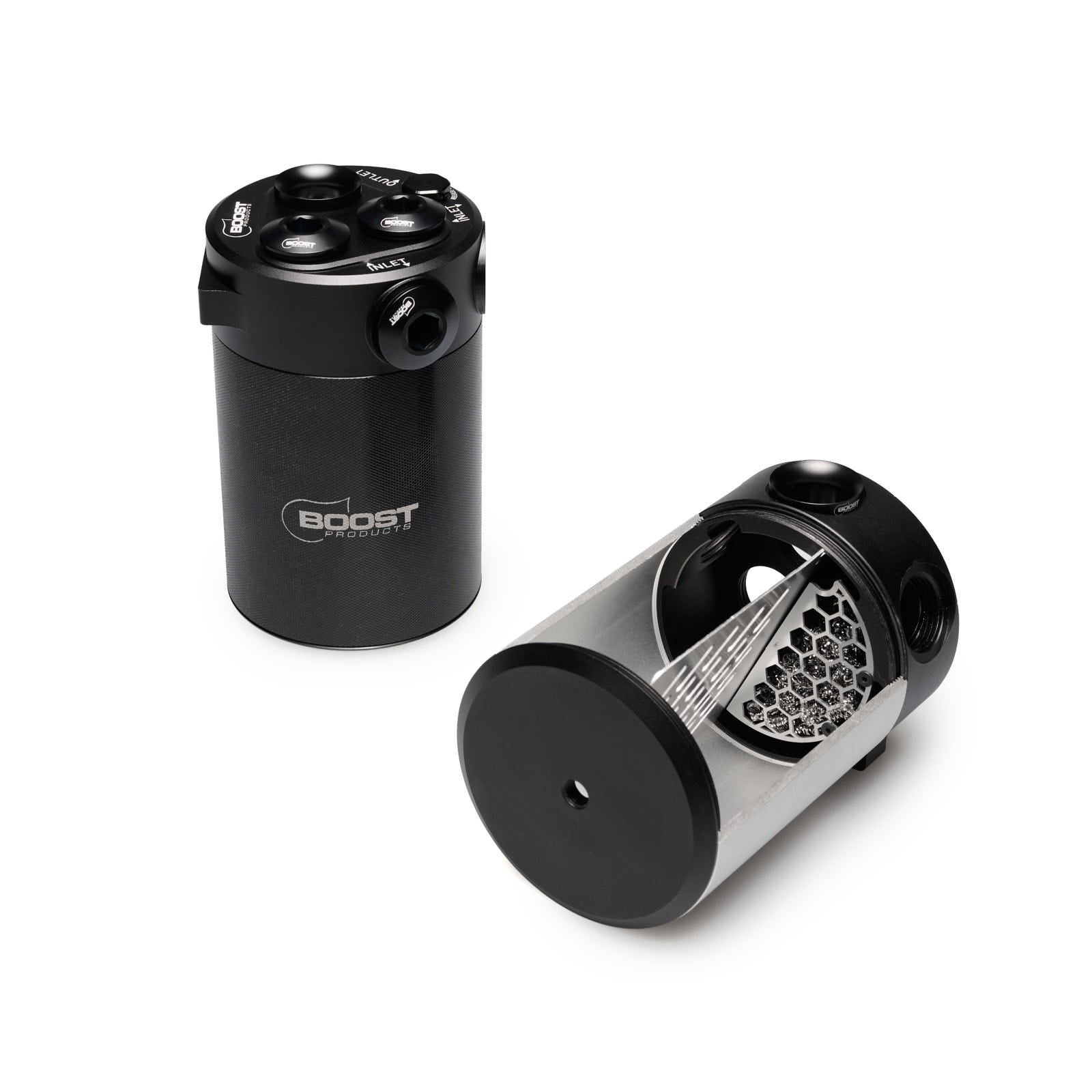

Inside, the DCV800 uses a baffle plate and stainless-steel wool to separate oil vapor before it reaches the outlet side of the system. The integrated dipstick makes it easy to inspect the collected oil, while the fully serviceable design lets you clean the tank and replace internal parts as needed.

Before You Buy

Plan the plumbing before ordering. This kit includes the catch tank, plugs, and an atmospheric trumpet, but not the -12 AN hose, hose ends, vehicle-specific brackets, or mounting hardware. An open vent-to-atmosphere configuration may not be legal for public-road use in all areas. Check applicable emissions regulations and use a closed recirculating setup where required.
