BMR Sway Bar Mount Ford Mustang Shelby GT500 (07-14) 1.375" Poly Bushings SMK010

Fitment Information

• Ford Mustang Shelby GT500 (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014)

NOTE:

• This product was designed for use with aftermarket front radiator supports. To mount this product you must acquire 3/8" Socket Cap (Allen Head) Bolts with matching nuts and washers.

Specs & Features

• Designed for street performance, drag race, and handling applications

• Replaces any 1 3/8-inch sway bar bushing and saddle (See images for bolt hole spacing)

• Designed to be used with aftermarket front radiator supports

• Internally fluted for efficient lubrication

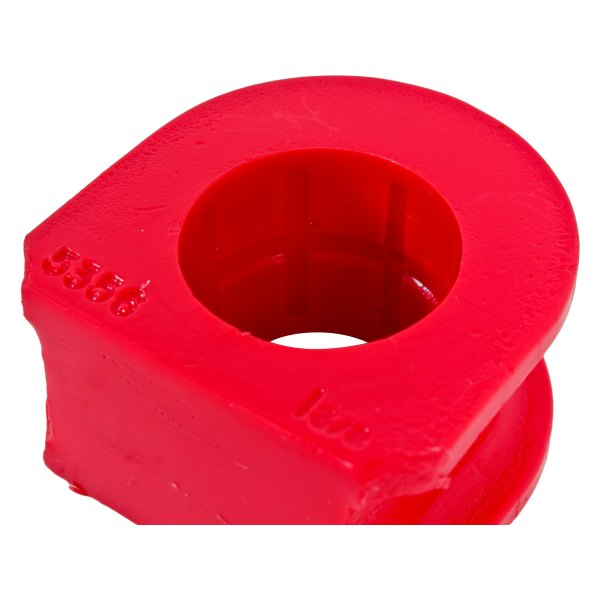

• Polyurethane bushings

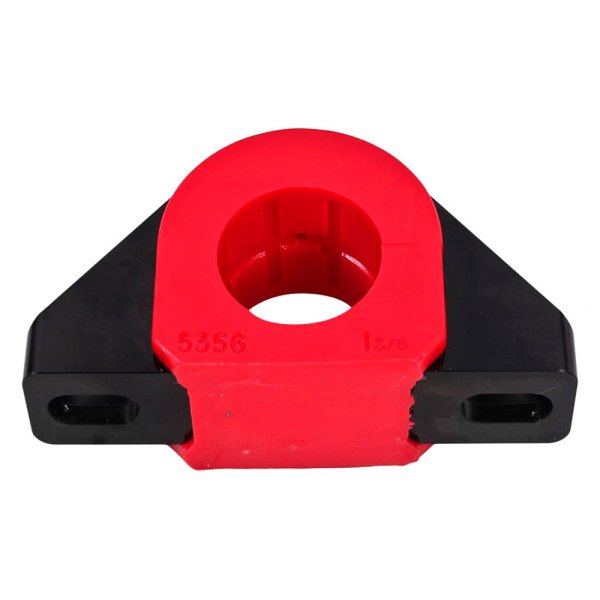

• CNC-machined billet aluminum sway bar saddles

• Grease fittings with internal grease passages

• Decreases body roll
• Proudly designed in the U.S.A.

• Proudly made in the U.S.A.

Product Description

If you've installed one of BMR Suspension's 1 3/8-inch sway bars or Xtreme Anti Roll Bars and want to improve its level of body roll control, upgrade the sway bar mounts and bushings with a Billet Aluminum/Polyurethane Sway Bar Mounting Kit from BMR Suspension. Most BMR sway bars come with formed steel sway bar mounts with polyurethane bushings. This gives you an effective sway bar mounting solution that works great for limiting the amount of wasted sway bar rate due to sway bar bushing deflection. Under extreme loads, slight bushing saddle deflection can absorbs sway bar rate and allow for slight amounts of body roll. BMR designed its Billet Aluminum/Polyurethane Sway Bar Mounting Kit to reduce saddle and bushing deflection. Reducing this deflection will reduce body roll and increase handling and launch consistency.

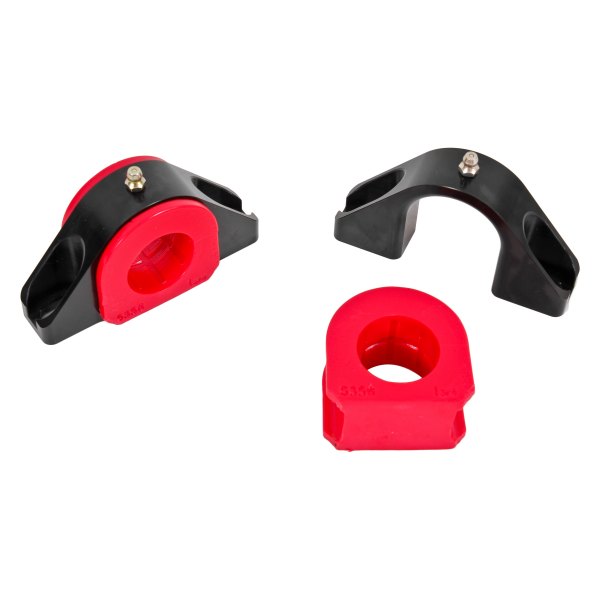

Designed for street performance, drag race, and handling applications, BMR's Billet Aluminum/Polyurethane Sway Bar Mounting Kit replaces the formed saddle and poly bushing assembly with CNC-machined billet aluminum saddles and gives you a new set of polyurethane bushings. This design eliminates the small amount of deflection seen in the formed saddles when extreme loads are applied. The saddles are CNC-machined, giving you a perfect fit, and the strength to withstand any form of performance driving. BMR's polyurethane bushings are also greasable for smooth operation and long life.

BMR Suspension's SMK010 Sway Bar Mount Kit is available in black with zinc-coated hardware. Installation time is about 1 hour. Proudly made in the U.S.A.!
