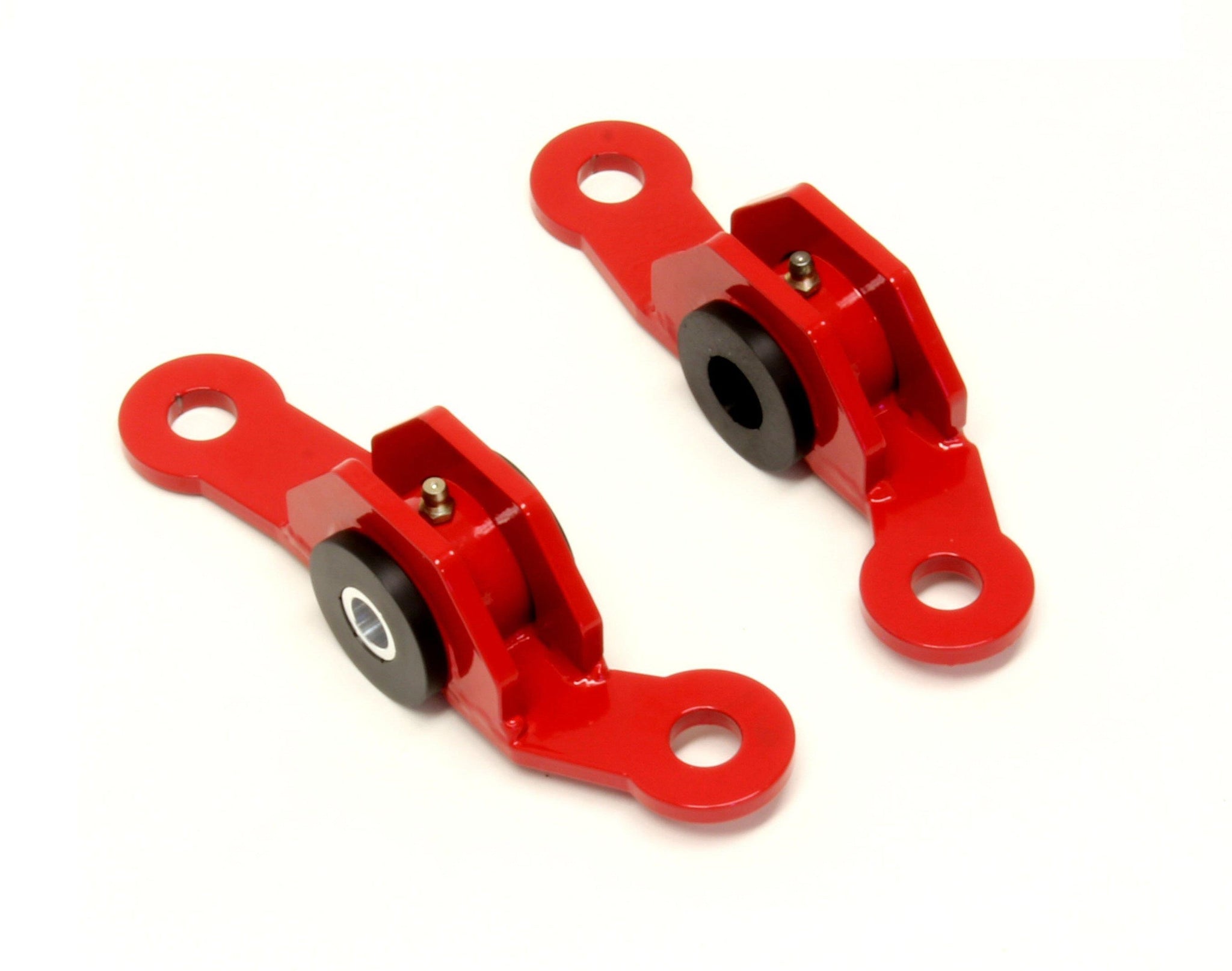

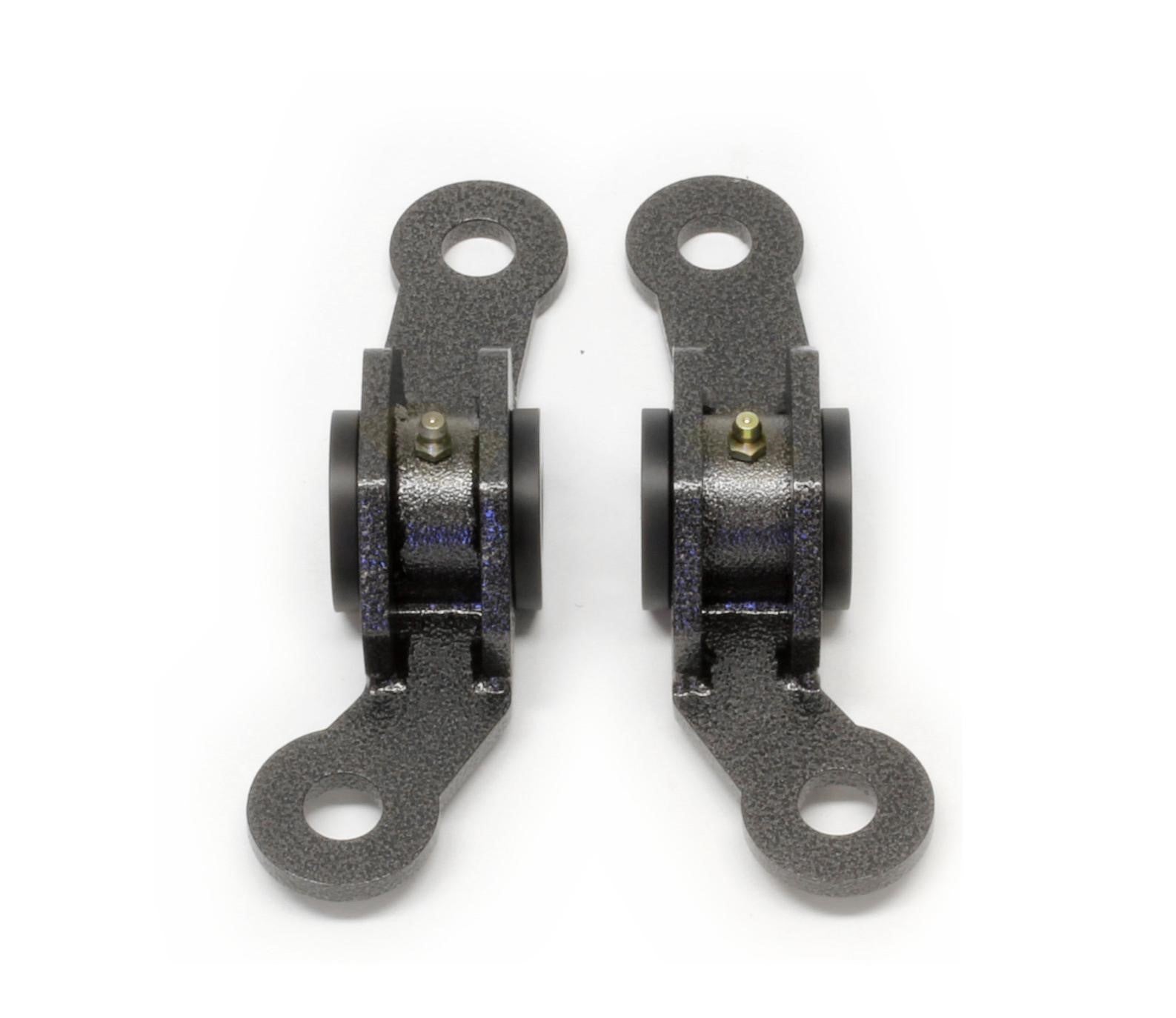

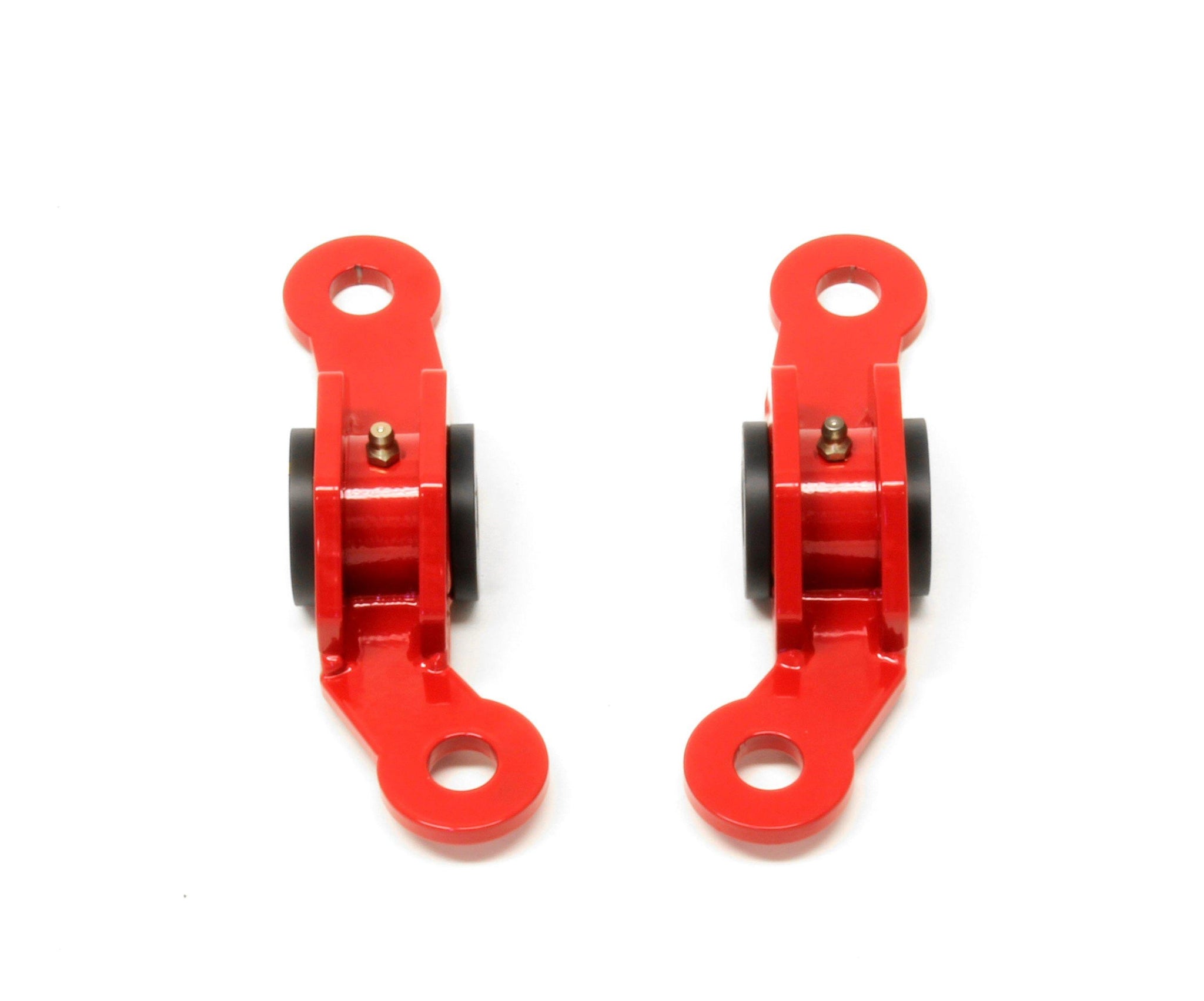

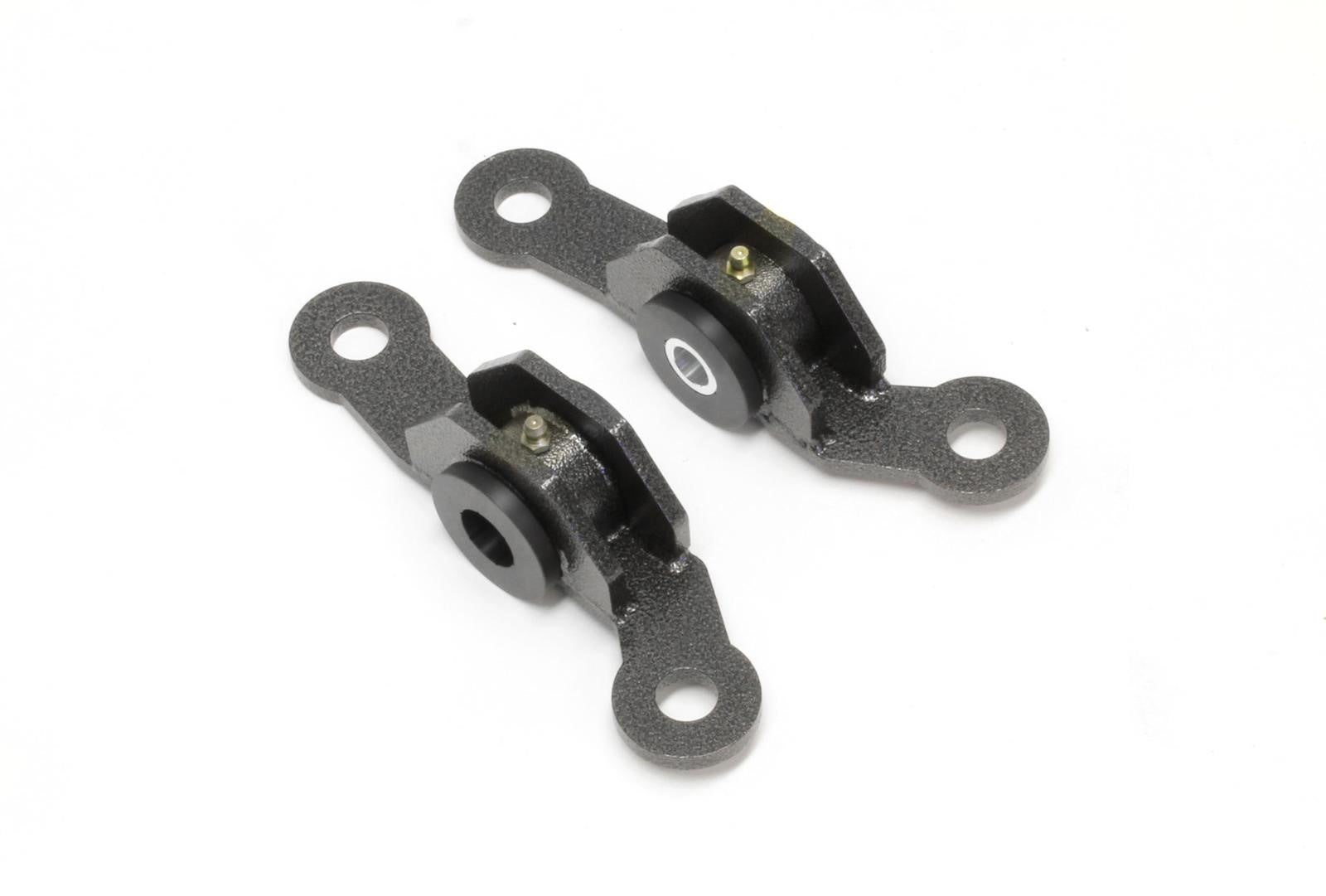

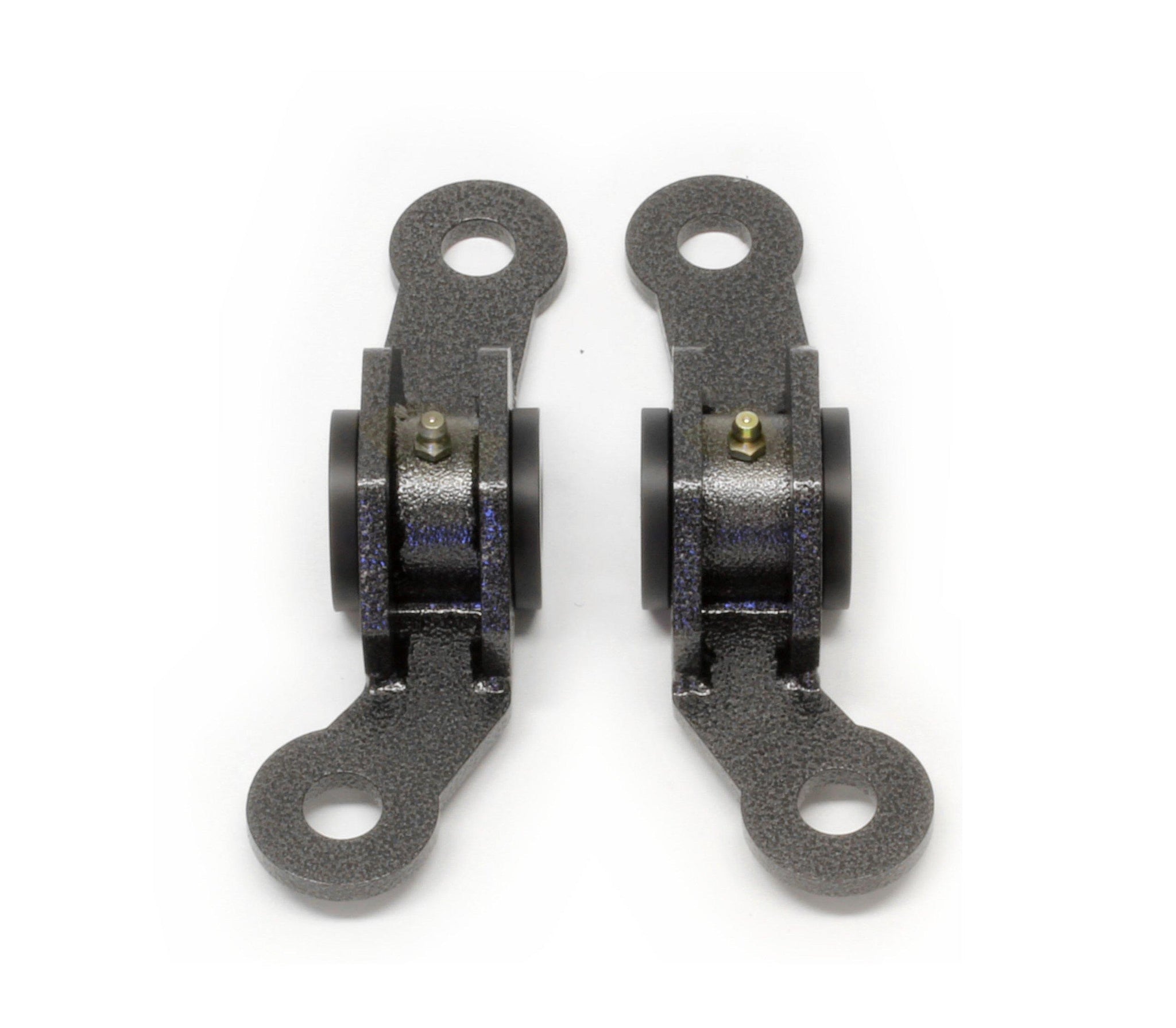

BMR Rear Upper Control Arm Bushing Chevy Camaro (10-15) Black Hammertone or Red Delrin

Fitment Information

• Chevrolet Camaro LS, LT, SS, ZL1, Z28 - V6 / V8 - RWD - Coupe / Convertible (2010, 2011, 2012, 2013, 2014, 2015)

Fitment Notes

• Chassis: 5th Generation Chevrolet Camaro (Alpha Platform)
• Compatible with V6 and V8 (LS3 / LS7 / LSA / LT1) engine configurations. Engine type does not affect bushing fitment.

Specs & Features

• Designed for street performance, drag race, and handling applications

• Replaces the factory rear upper A-arm bushing and saddle

• Internally fluted for efficient lubrication of the inner sleeve and bushing thrust surface

• Machined Delrin bushings

• Fully TIG welded saddles

• Grease fittings with internal grease passages

• 7075 aluminum sleeves

• Decreases wheelhop & Increases traction
• Proudly designed in the U.S.A.

• Proudly made in the U.S.A.
• Replaces the factory rear upper control arm (A-arm) outer bushing and saddle ONLY. Does NOT replace the inner upper control arm bushing — that is a separate BMR product (BK017).
• Replaces the factory rear upper A-arm bushing and saddle. Internally fluted design for efficient lubrication of the inner sleeve and bushing thrust surface. Grease fittings with internal grease passages included for smooth operation and long service life.
• CNC-machined Delrin (acetal) bushings. Delrin eliminates deflection under high-load conditions without the need for petroleum-based lubricants that degrade rubber bushings over time.
• 7075 aluminum sleeves. Fully TIG-welded saddles for perfect fit and strength to withstand any form of performance driving.
• Reduces spindle movement, dynamic rear alignment changes, and wheelhop under hard acceleration. Increases rear traction and handling consistency.
• Note: Delrin bushings will increase NVH (Noise, Vibration, Harshness) compared to factory rubber bushings. Not recommended for buyers sensitive to increased road noise or vibration.
• Designed for street performance, drag race, and road racing applications.
• Installation time: approximately 2-3 hours. May vary depending on stock bushing removal technique. Professional installation recommended.
• Sold as a complete bushing kit for one side. Two kits required for a full rear installation.
• Part Number: BK039H (Black Hammertone) / BK039R (Red)

Product Description

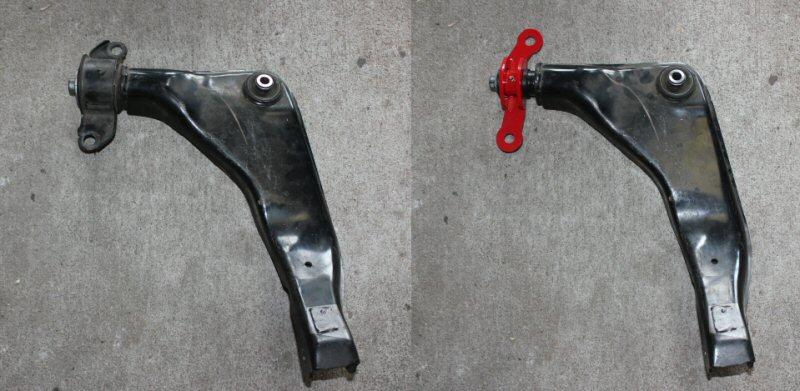

Reduce spindle movement and dynamic rear alignment changes with a Delrin upper control arm bushing from BMR Suspension. The factory upper A-arm has a bearing at the front of the A-arm and a large rubber bushing at the rear, which allows for a large amount of unwanted movement. This allows for excess spindle movement, which absorbs power when transferring it to the tires. This counter-rotation leads to uncontrollable wheelhop and inconsistent braking and traction tendencies.

Designed for street performance, drag race, and handling applications, BMR's Delrin bushing kit eliminates the large bulky factory bushing by replacing the entire saddle assembly and utilizing Delrin bushings that eliminate the deflection seen in the stock bushings. The saddle is completely TIG-welded, giving you a perfect fit, and the strength to withstand any form of performance driving. BMR's Delrin bushings are also greasable for smooth operation and long life.

BMR Suspension's BK039 Differential Busing Kit is available in black with zinc-coated hardware. Installation time is about 2-3 hours and may vary depending on stock bushing removal technique. Proudly made in the U.S.A.!
