BMR Fixed Camber Link Ford Mustang S550 (2015-2023) Polyurethane or Delrin

Fitment Information

• Ford Mustang S550 (2015, 2016, 2017, 2018 ,2019, 2020, 2021, 2022, 2023)

Specs & Features

• Fits all 2015-2023 S550 Ford Mustang

• Designed longer than factory length to correct suspension geometry on lowered S550s

• High-durometer internally fluted polyurethane or Delrin greasable bushings

• CNC-machined 6061-T6 billet aluminum

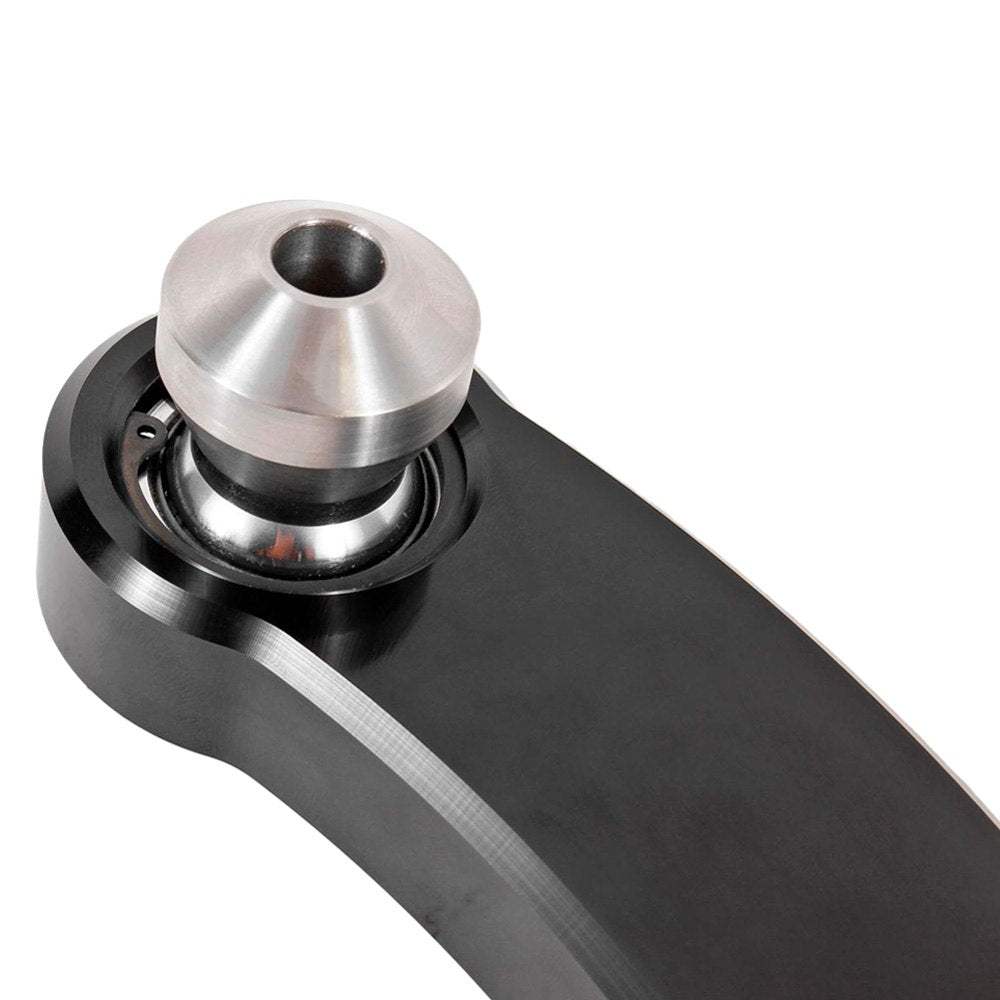

• Spherical Bearings

• All 304 stainless steel rod end spacers

• Greatly reduces bushing deflection

• Improved Performance with zero increase in NVH

• Designed for street performance, drag race, and road race applications

• Durable anodized finish

• 3 hour installation time

• Proudly designed in the U.S.A.

• Proudly made in the U.S.A.

Product Description

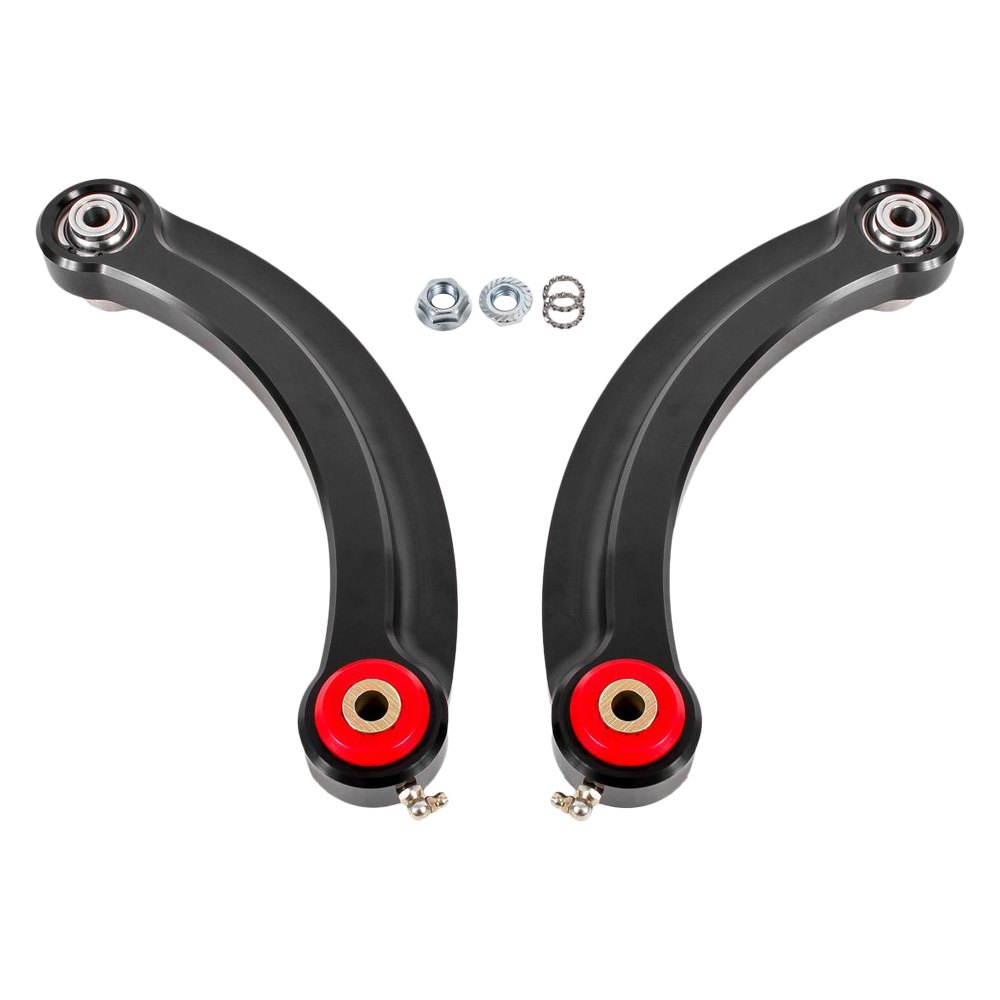

Polyurethane:

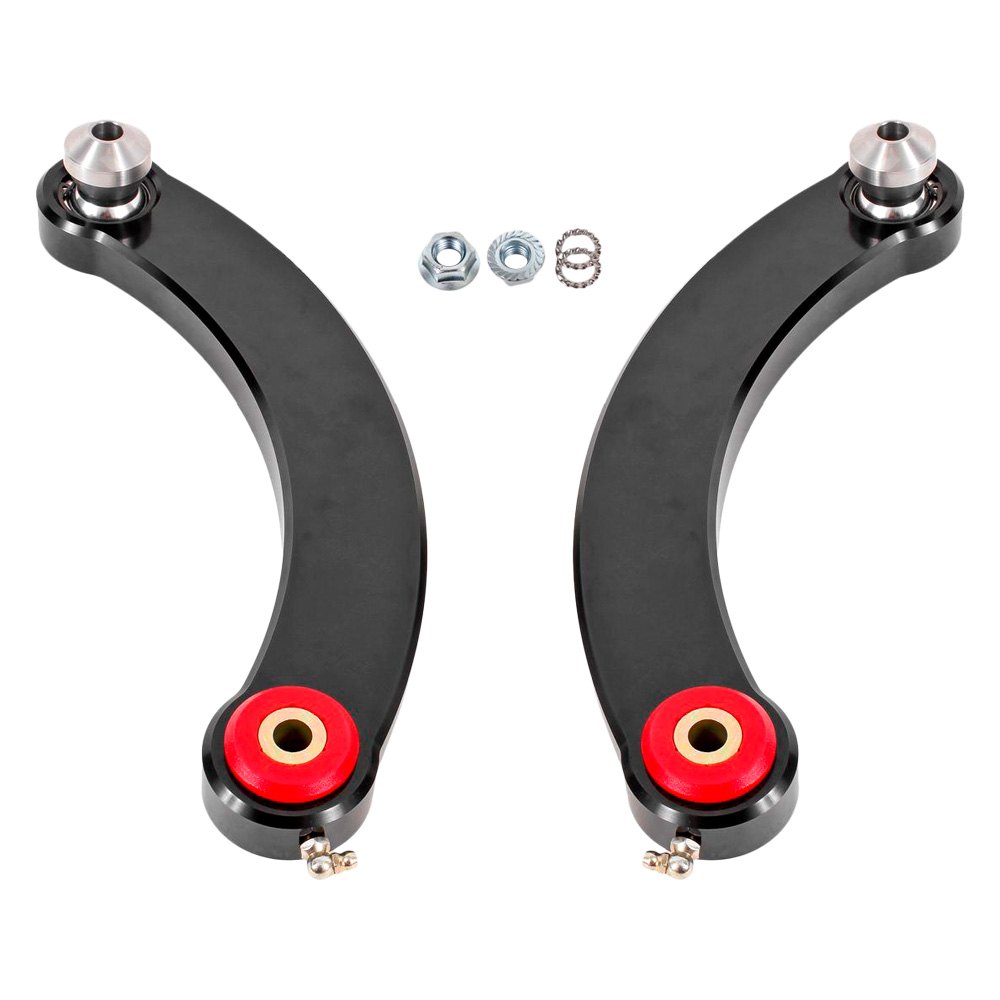

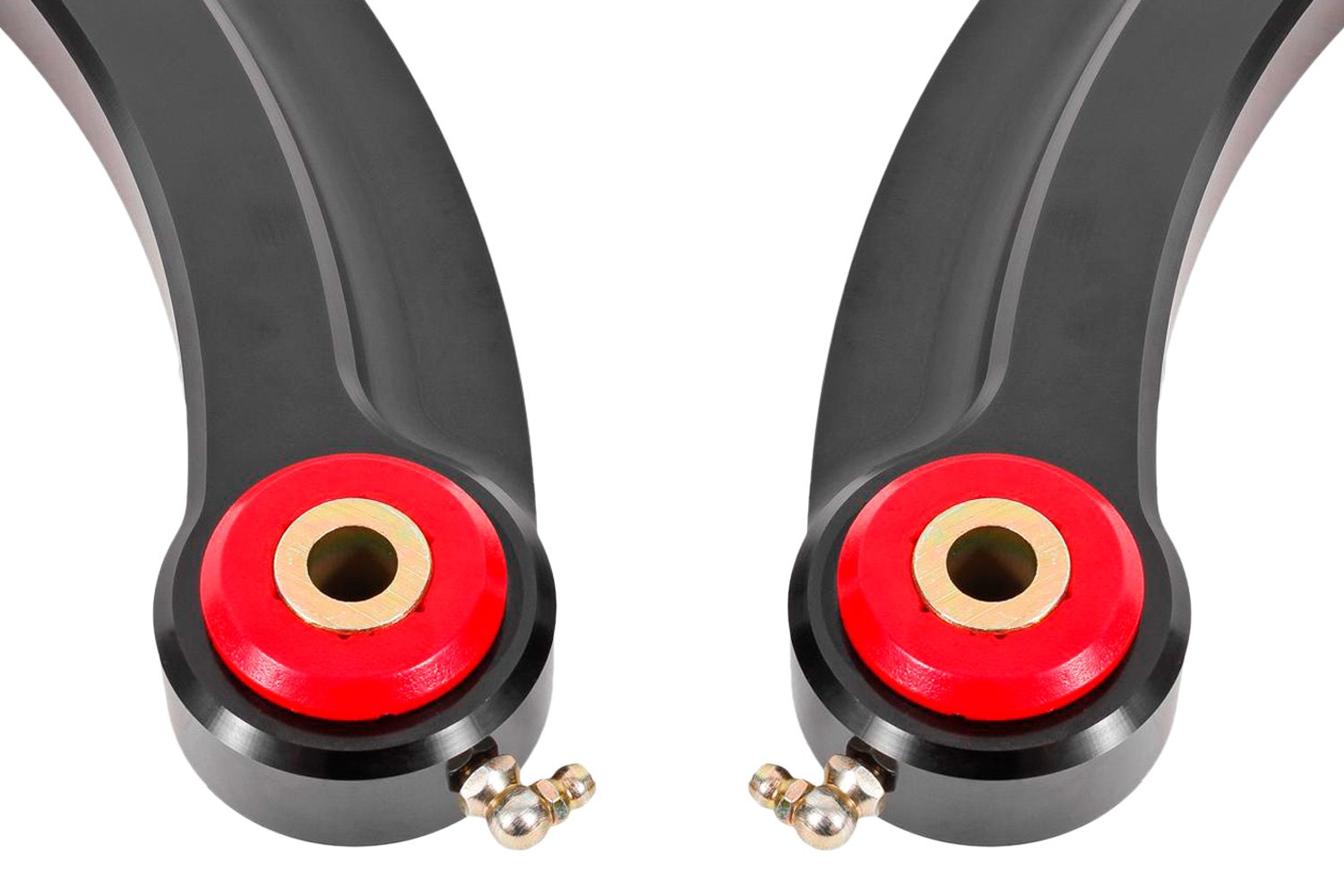

Launch harder, increase cornering stability, and correct rear suspension geometry on your lowered 2015-newer S550 Mustangs with spherical/polyurethane upper control arms from BMR Suspension. Stock upper control arms with soft rubber bushings deflect under load and absorb power instead of transferring it to the tires. The factory arms also don't allow for proper camber correction on lowered vehicles. BMR's polyurethane, non-adjustable control arms for Mustangs (UTCA057) are CNC-machined from 6061-T6 billet aluminum. This design gives you an incredibly strong control arm that greatly improves performance. Greasable, high-durometer bushings add a solid, more responsive feel over the stock rubber bushings. BMR's bushings are internally fluted, which allows grease to evenly coat the inner sleeve. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings.

BMR Suspension designed the UTCA057 to work well in street performance, drag race, and handling applications. The stock control arm bushings deflect excessively under cornering loads giving you inconsistent handling characteristics. BMR's polyurethane bushings are designed to be compliant enough to give you a comfortable ride and absorb NVH, while remaining firm enough to stand up to high loads of any performance environment. The UTCA057's heavy-duty construction and strong polyurethane bushings give you much improved repeatability on the street, starting line, or in the corners. The UTCA057s are primarily designed for lowered cars that are looking to remove the camber gained from lower than stock ride height vehicles. These are designed longer than factory arms, give you the ability to correct the camber setting on lowered S550s. ALL lowered cars will benefit from these parts IF you are looking to remove negative camber. For those looking to GAIN negative camber, these are not the correct choice. With a 1.2-inch drop, the most negative camber you can get will be approximately -2.0 degrees. These work very well for drag racers who have lowered ride heights, and are looking for ZERO camber. BMR's heavy-duty spherical bearings are designed to solidly link the spindle to the upper control arm, eliminate deflection and wheel alignment changes. Our spherical bearings will stand up to high loads of any performance environment, offering all of the bind-free suspension articulation needed for great handling. Also, these arms save over 4 pounds compared to the OEM set (2.35lbs per side). On stock height cars, you cannot exceed -0.50 camber. BMR's S550 upper control arms add no noticeable NVH. These are the perfect upgrade for the enthusiast looking to improve performance at an affordable price, while maintaining acceptable NVH levels and ride quality. When performance is a must, rely on BMR Suspension!

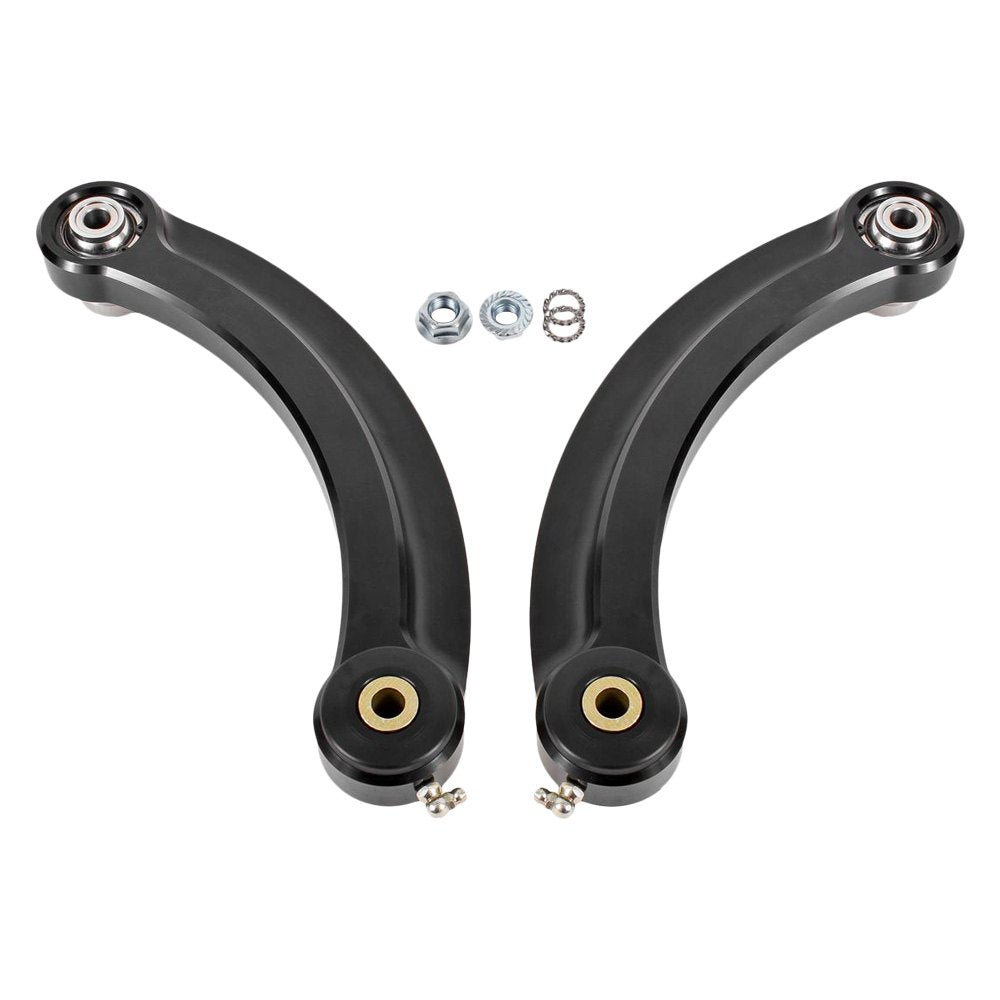

Delrin:

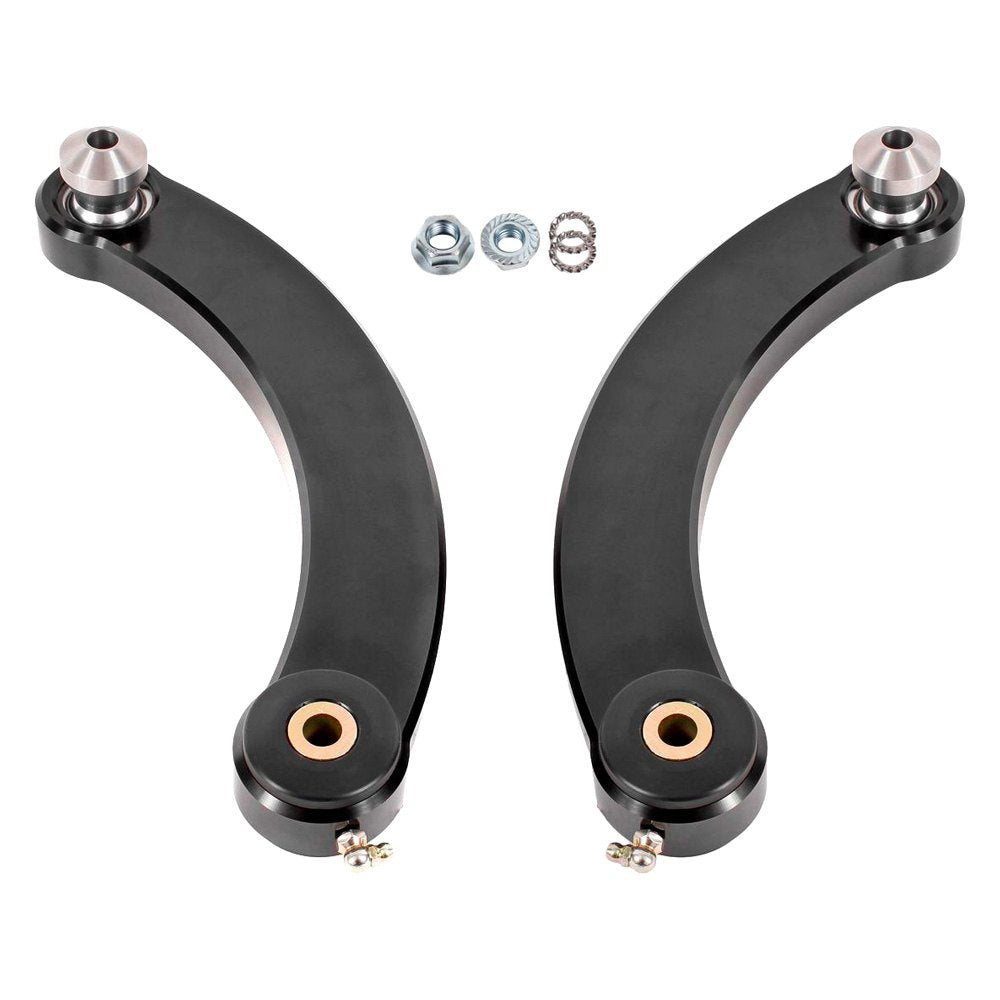

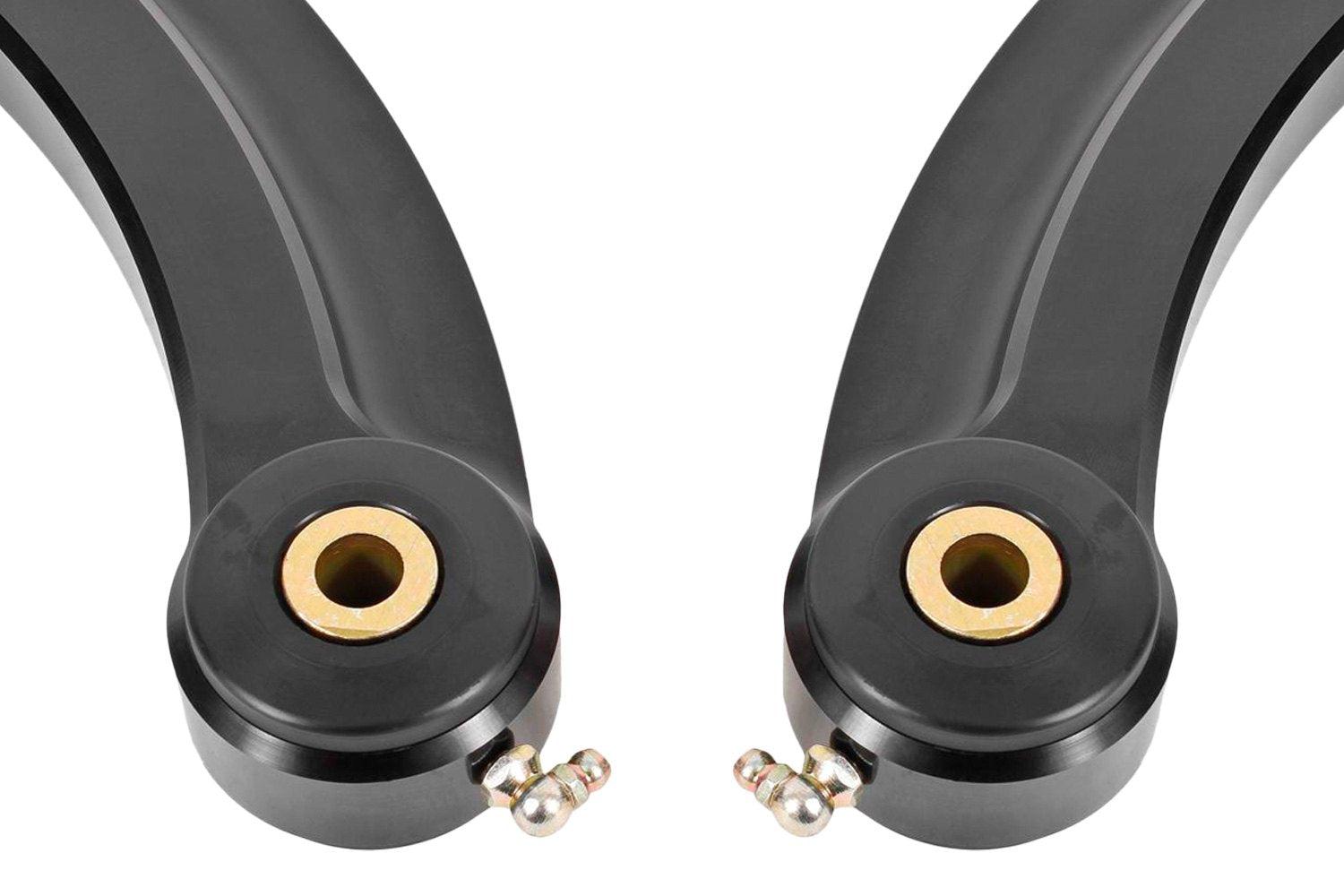

Launch harder, increase cornering stability, and correct rear suspension geometry on your lowered 2015-newer S550 Mustangs is easy with upper control arms from BMR Suspension. Stock upper control arms with soft rubber bushings deflect under load and absorb power instead of transferring it to the tires. The factory arms also don't allow for proper camber correction on lowered vehicles. BMR's Delrin, non-adjustable control arms for Mustangs (UTCA064) are CNC-machined from 6061-T6 billet aluminum. This design gives you an incredibly strong control arm that greatly improves performance. Greasable, solid Delrin bushings add a solid, more responsive feel over the stock rubber bushings. BMR's bushings are internally fluted, which allows grease to evenly coat the inner sleeve. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings.

BMR Suspension designed the UTCA064 to work well in street performance, drag race, and handling applications. The stock control arm bushings deflect under cornering loads giving you inconsistent handling characteristics. BMR's Delrin bushings are designed to eliminate deflection, while being able to stand up to high loads of any performance environment. The UTCA064's heavy-duty construction and solid Delrin bushings give you much improved repeatability on the street, starting line, or in the corners. The UTCA064s are primarily designed for lowered cars that are looking to remove the camber gained from lower than stock ride height vehicles. These are designed longer than factory arms, give you the ability to correct the camber setting on lowered S550s. All lowered cars will benefit from these parts IF you are looking to remove negative camber. For those looking to GAIN negative camber, these are not the correct choice. With a 1.2-inch drop, the most negative camber you can get will be approximately -2.0 degrees. These work very well for drag racers who have lowered ride heights, and are looking for ZERO camber. BMR's heavy-duty spherical bearings are designed to solidly link the spindle to the upper control arm, eliminate deflection and wheel alignment changes. Our spherical bearings will stand up to high loads of any performance environment, offering all of the bind-free suspension articulation needed for great handling. Also, these arms save over 4 pounds compared to the OEM set (2.35lbs per side). On stock height cars, you cannot exceed -0.50 camber. BMR's S550 upper control arms add no noticeable NVH. These are the perfect upgrade for the enthusiast looking to improve performance at an affordable price, while maintaining acceptable NVH levels and ride quality. When performance is a must, rely on BMR Suspension!
