AWE Exhaust for Ford F150 2.7L / 3.5L / 5.0L (2021-2026) Dual Catback with Single Side or Split Rear Exit

Fitment Information

Specs & Features

• Proudly engineered, designed, and manufactured in-house, in the USA
• Full 3” catback exhausts with non-resonated mid-pipe - all in one kit
• Features AWE’s proprietary, patented drone-canceling solution, 180 Technology®
• Single side-exit or dual split rear-exit options available: two tips on one side, two tips straight out the back
• 5” straight-cut, double-walled tips (for dual exit configurations), and 4.5” slash-cut, double-walled tips (for single side exit configuration) available in chrome silver or diamond black
• Handcrafted from U.S.-sourced CNC mandrel-bent .065” wall T304L stainless steel
• Direct bolt-on for factory-like simplicity
• Applicable to 2.7L Ecoboost, 3.5L Ecoboost, and 5.0L V8
• Fits 145.4" & 157.2" wheelbases (except Tremor & PowerBoost)
• Less is more: clean, straight-through design maximizes performance
• Perfect fitment, guaranteed
• AWE No CEL guarantee
• Lifetime warranty on exhaust
• Resonated mid-pipe available if you ever want to turn the volume down


Product Description

Presenting the AWE 0FG Catback Exhaust Suite for the '21+ Ford F-150 V8 & Ecoboost:

The 0FG Exhaust:

Featuring a non-resonated mid-pipe and AWE’s proprietary, patented drone-canceling solution, 180 Technology®, the 0FG Exhaust delivers a unique dose of refined aggression out of your F-150, without any drone at cruising speeds.The AWE 0FG Exhaust is a rugged 3” T304L stainless steel catback configuration with a 100% straight-through design for optimal flow. Regardless of low or high gear, the 0FG Exhaust will be on the top of your playlist.

Sound Perfection: 180 Technology by AWE

As exhaust gases exit the F150’s engine and flow into an AWE 180 Technology equipped resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. By controlling the size and location of the ports and the chambers, we also control when the sound waves exit the chambers. The specific timing of when the reflected sound waves rejoin the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies. Call it science, call it magic, or call it 180 Technology® by AWE. More in the tab above.

Important 0FG Catback Exhaust important fitment notes (you should definitely read this):

• The AWE 0FG Exhaust for the ‘21+ F-150 is applicable to 145.4" & 157.2" wheelbases
• Does not fit trucks with bumper cutouts (Tremor, STX, etc.) & Powerboost models in any configuration

The AWE 0FG Resonated Mid Pipe:

The AWE 0FG Exhaust comes with an AWE Non-Resonated Mid Pipe standard. But if you ever want to change the tone of your exhaust (a little quieter), the AWE 0FG Resonated Mid Pipe is your ticket.  This Resonated Mid Pipe works as a replacement to the Mid Pipe that came with your AWE 0FG Catback and fits both V8 and Ecoboost models, side exit and dual split rear options alike.  Installation is easy - no cutting or welding is required.

Tip Options:

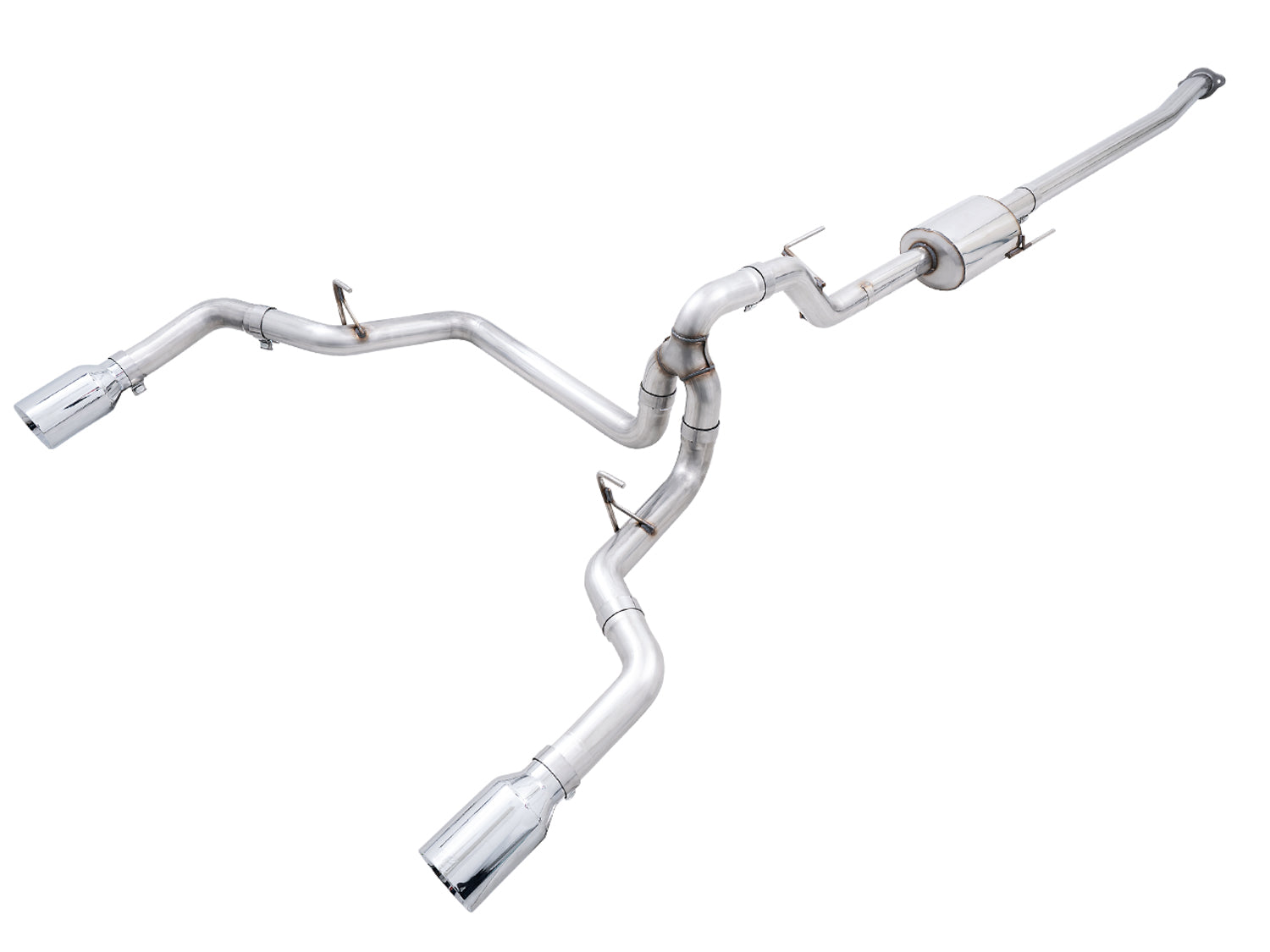

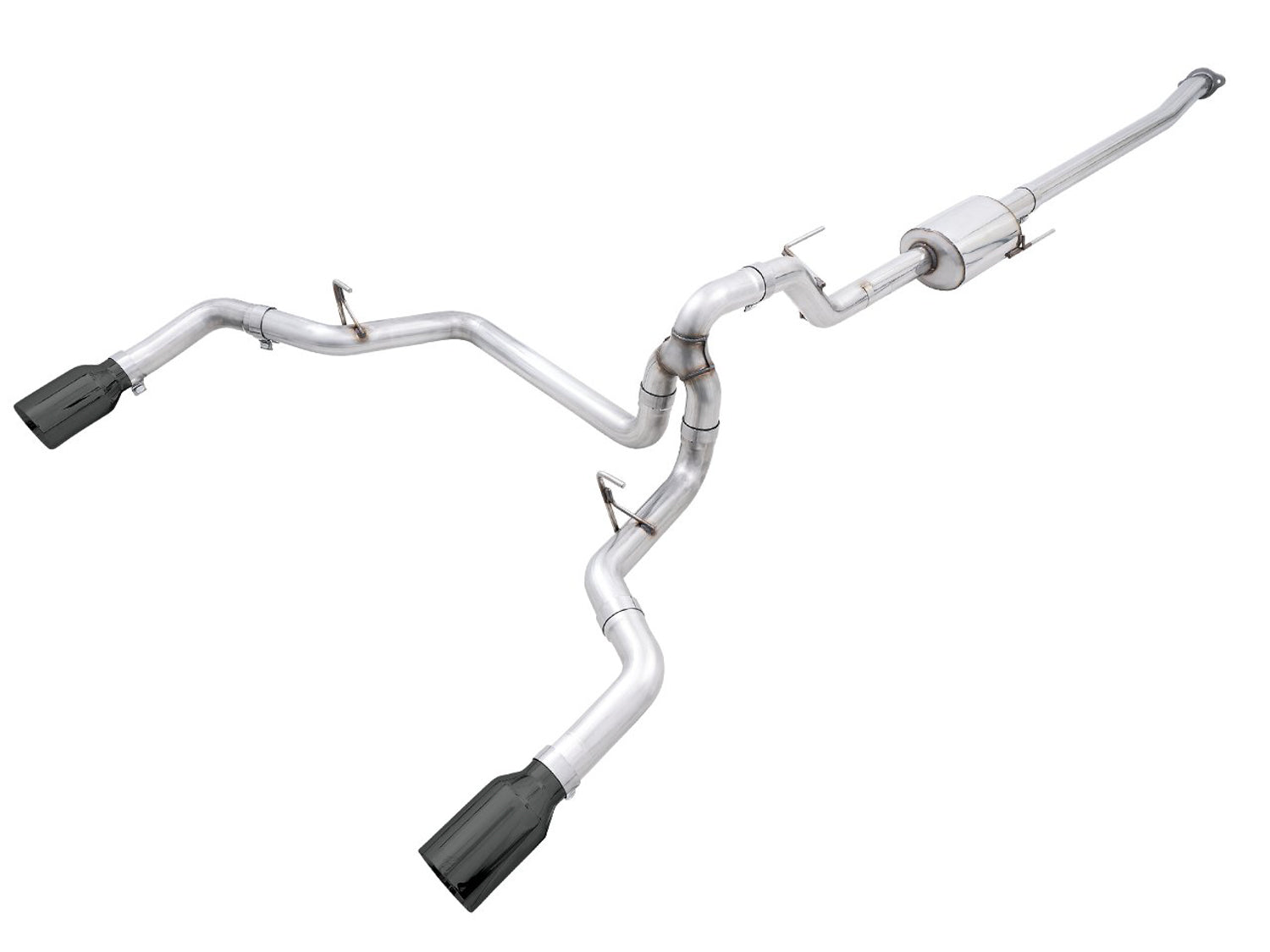

Dual Split Rear Exit

The Dual Split Rear Exit 0FG Exhaust features a unique tip outlet design for the F-150 -- dual 5” tips exiting from under the rear bumper. Tip finishes are available in chrome silver or diamond black.

Note: Each tip is individually adjustable, allowing bumper depth to be set according to your personal taste.

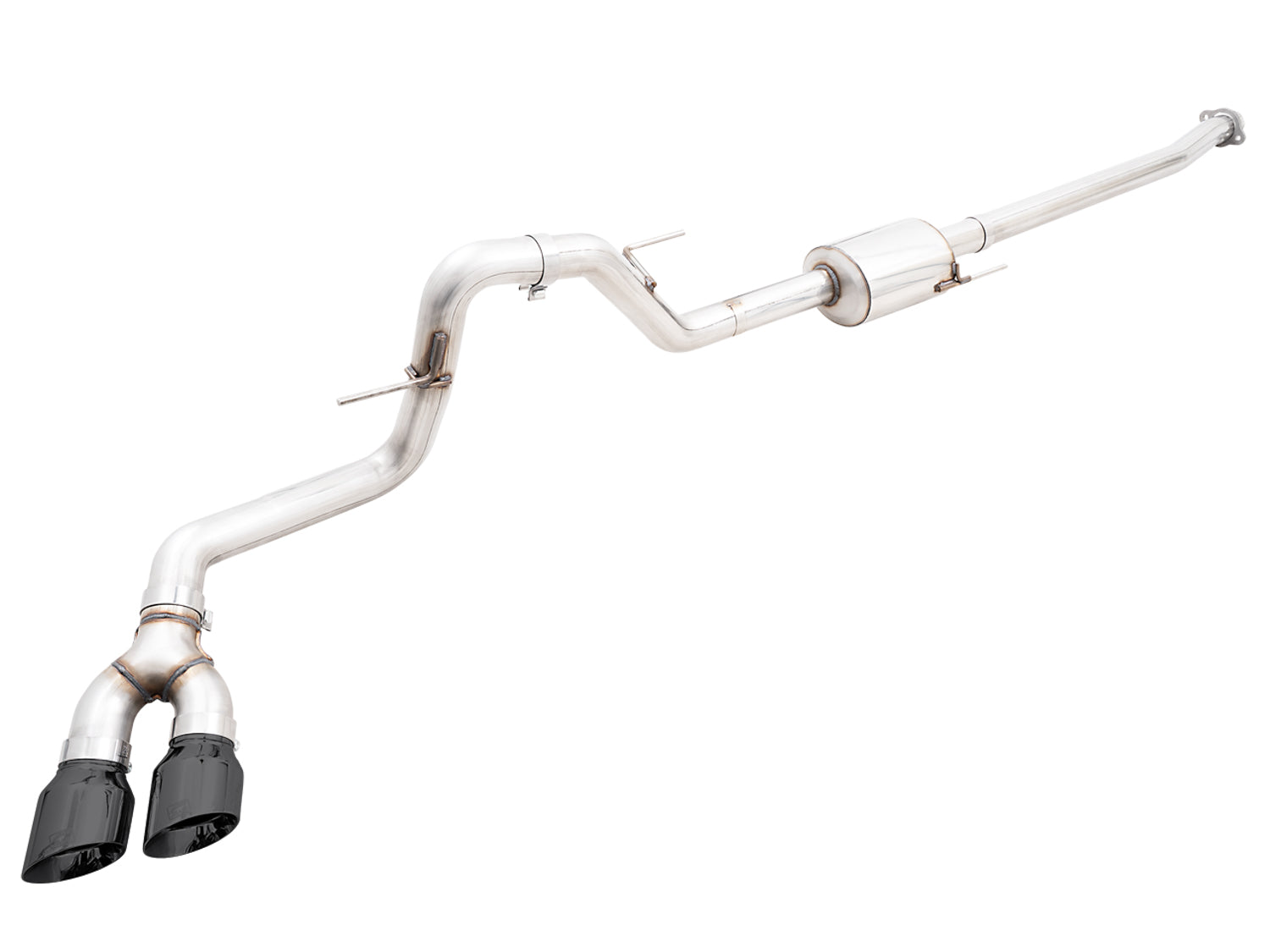

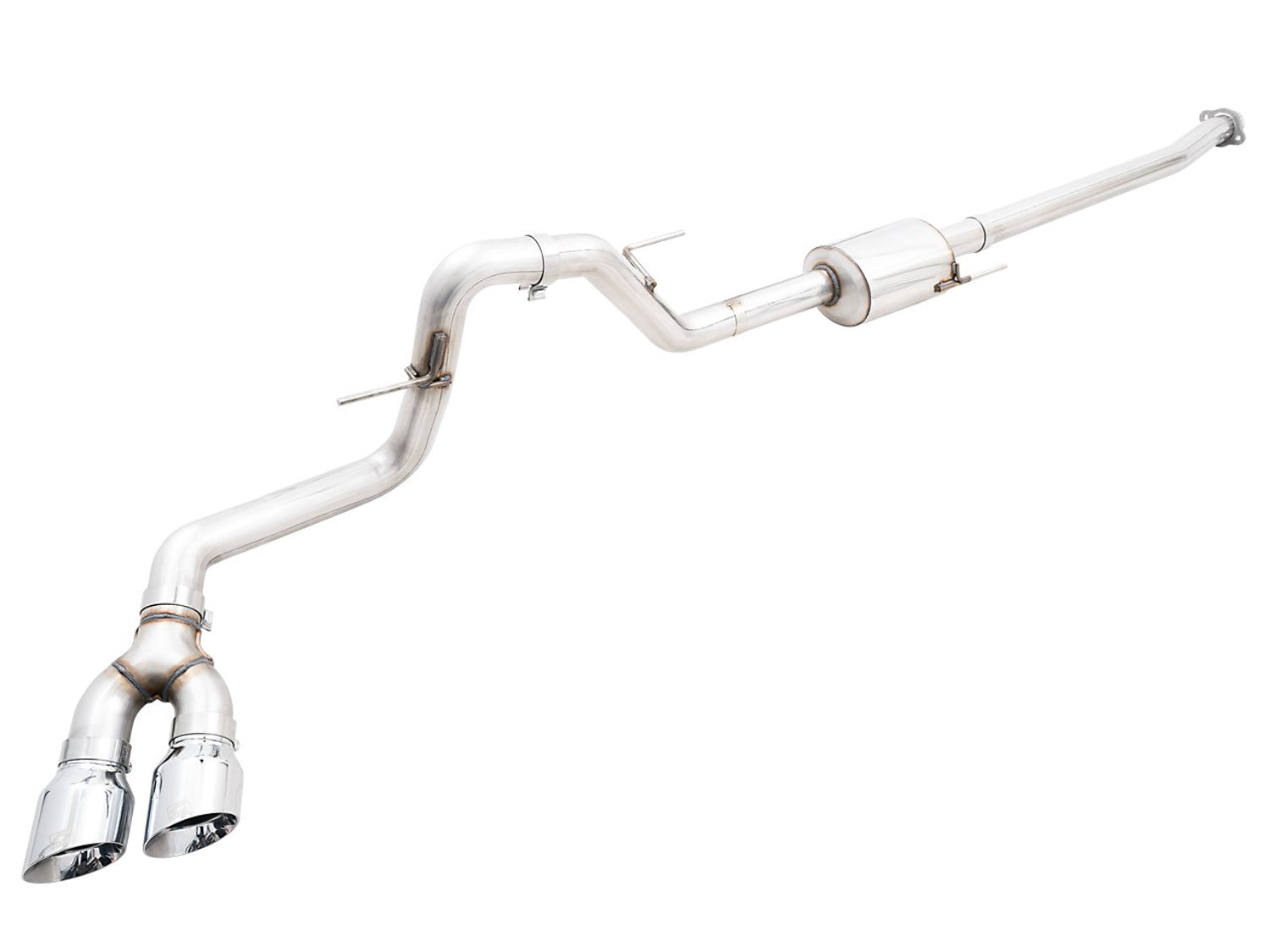

Dual Single Side Exit

The AWE Dual Single Side Exit 0FG Exhaust features two 4.5” slash-cut tips that reside behind the rear passenger-side fender. With adjustment at the tip outlet, drivers can adjust the angle of the tips to their liking (we like them parallel to the ground ourselves). These, too, are available in your choice of chrome silver or diamond black, and come with the AWE stamp of approval.

Note: Each tip is individually adjustable, allowing bumper depth to be set according to your personal taste.

What’s in the box?

Complete 0FG Catback Exhaust, two double-walled tips in chosen configuration and finish, and all necessary hardware and adapters required for installation.
