Put a brand-new T56 Magnum-F six-speed behind the 1JZ or 2JZ in your MK3 Supra with the billet bellhousing, offset shifter, crossmember, mount and wiring already matched to the A70 chassis.
Fitment Information
- Toyota Supra MK3 A70
- Supra (1986, 1987, 1988, 1989, 1990, 1991, 1992)
- Compatible engines
- Toyota 1JZ engine family
- Toyota 2JZ engine family
Fitment Notes
- This kit is made for an MK3 Supra with a 1JZ or 2JZ engine
- It does not bolt directly to the factory 7M-GE or 7M-GTE engine
- US-market MK3 Supras will require a completed or planned JZ engine swap
- The included transmission case is modified for additional A70 transmission-tunnel clearance

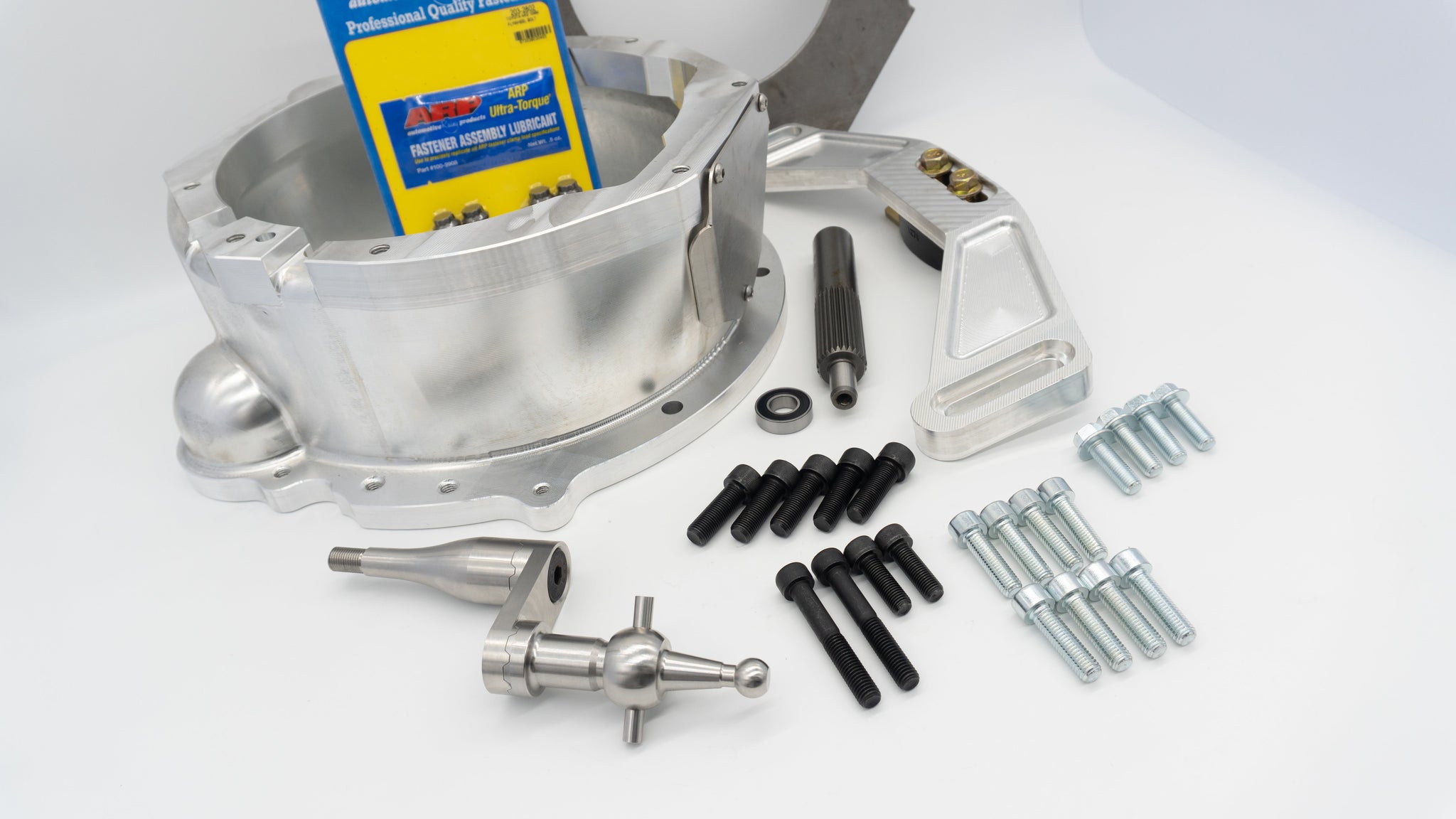

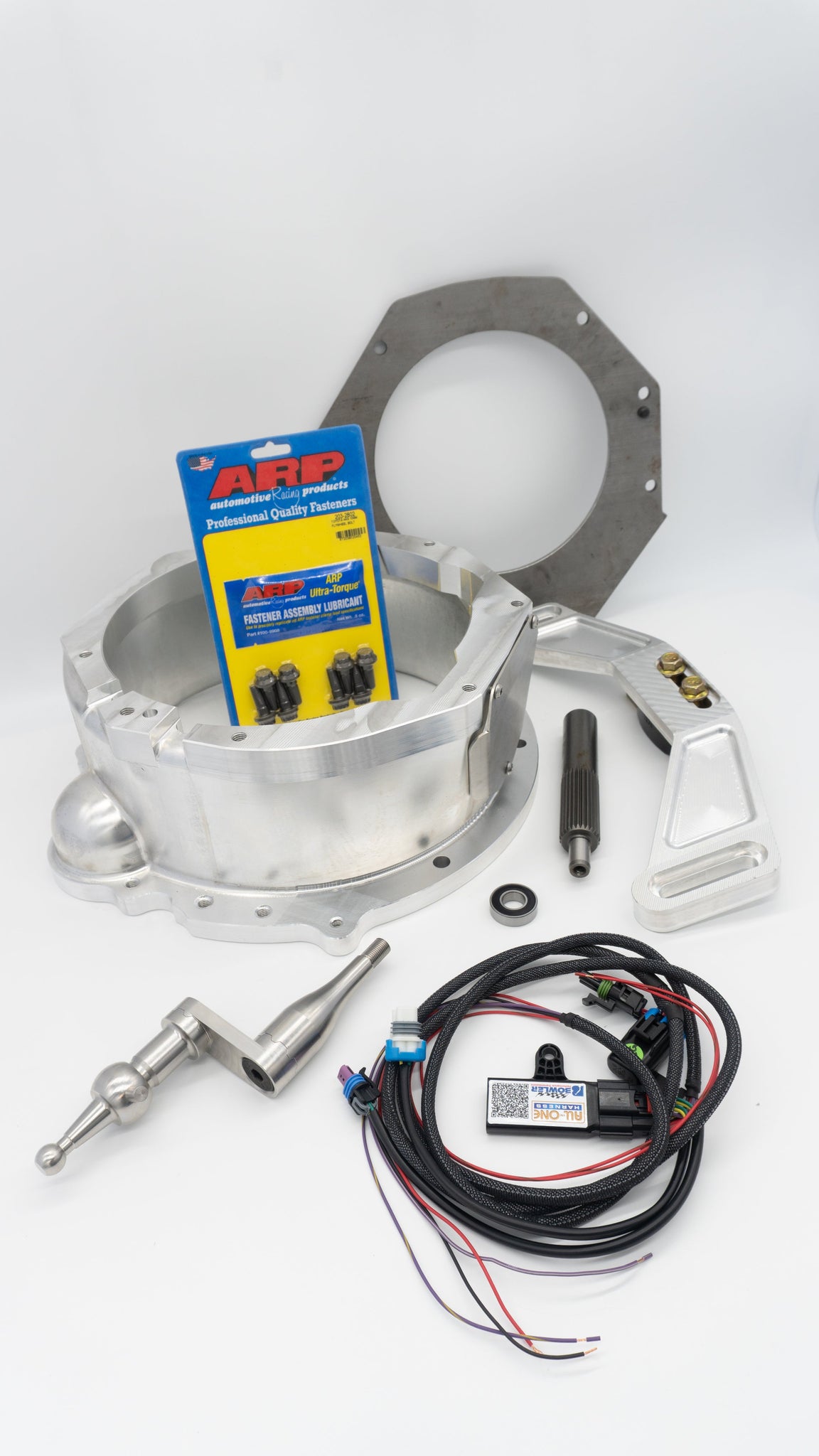

Kit Includes

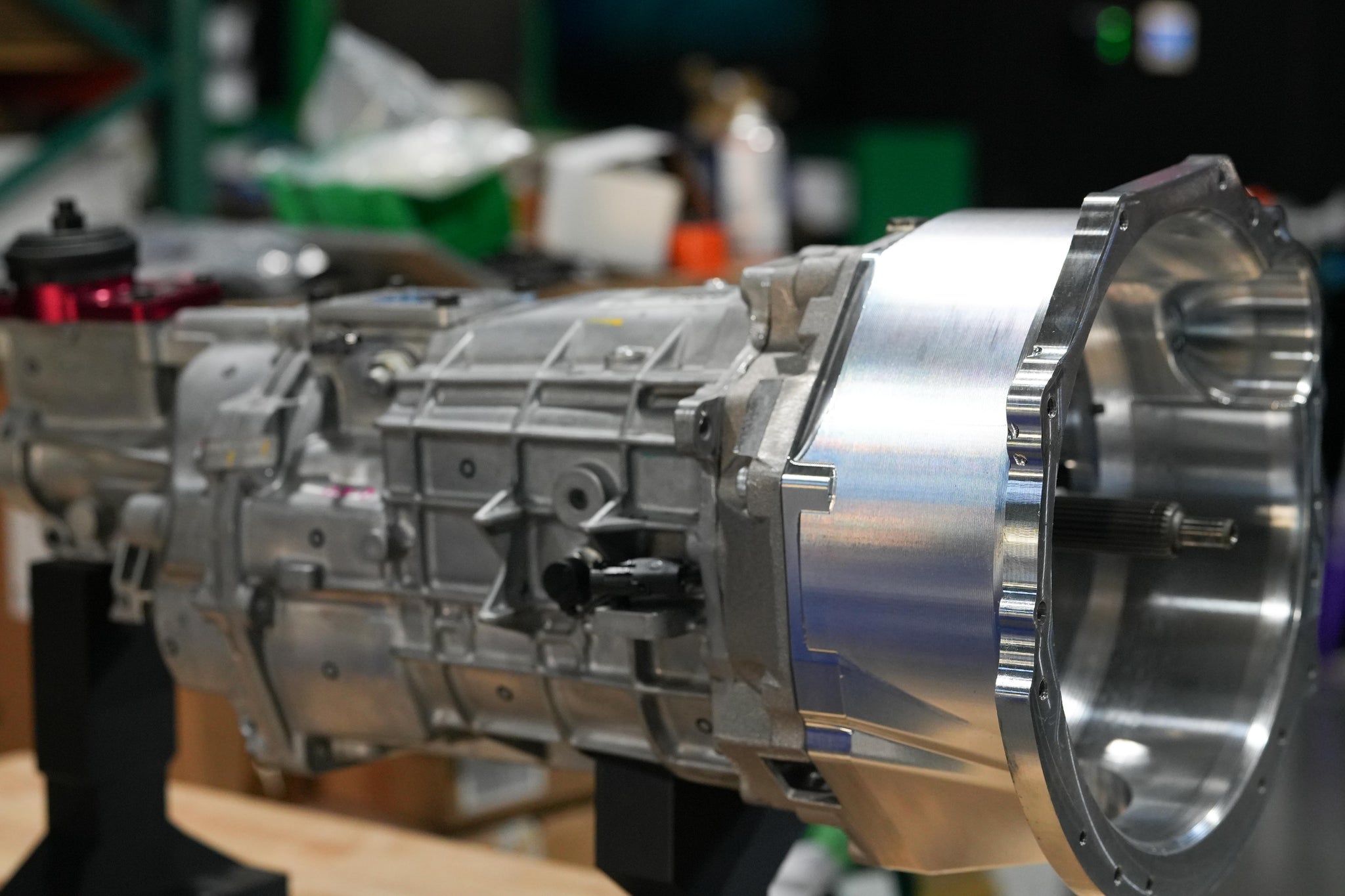

- Brand-new TREMEC T56 Magnum-F six-speed transmission

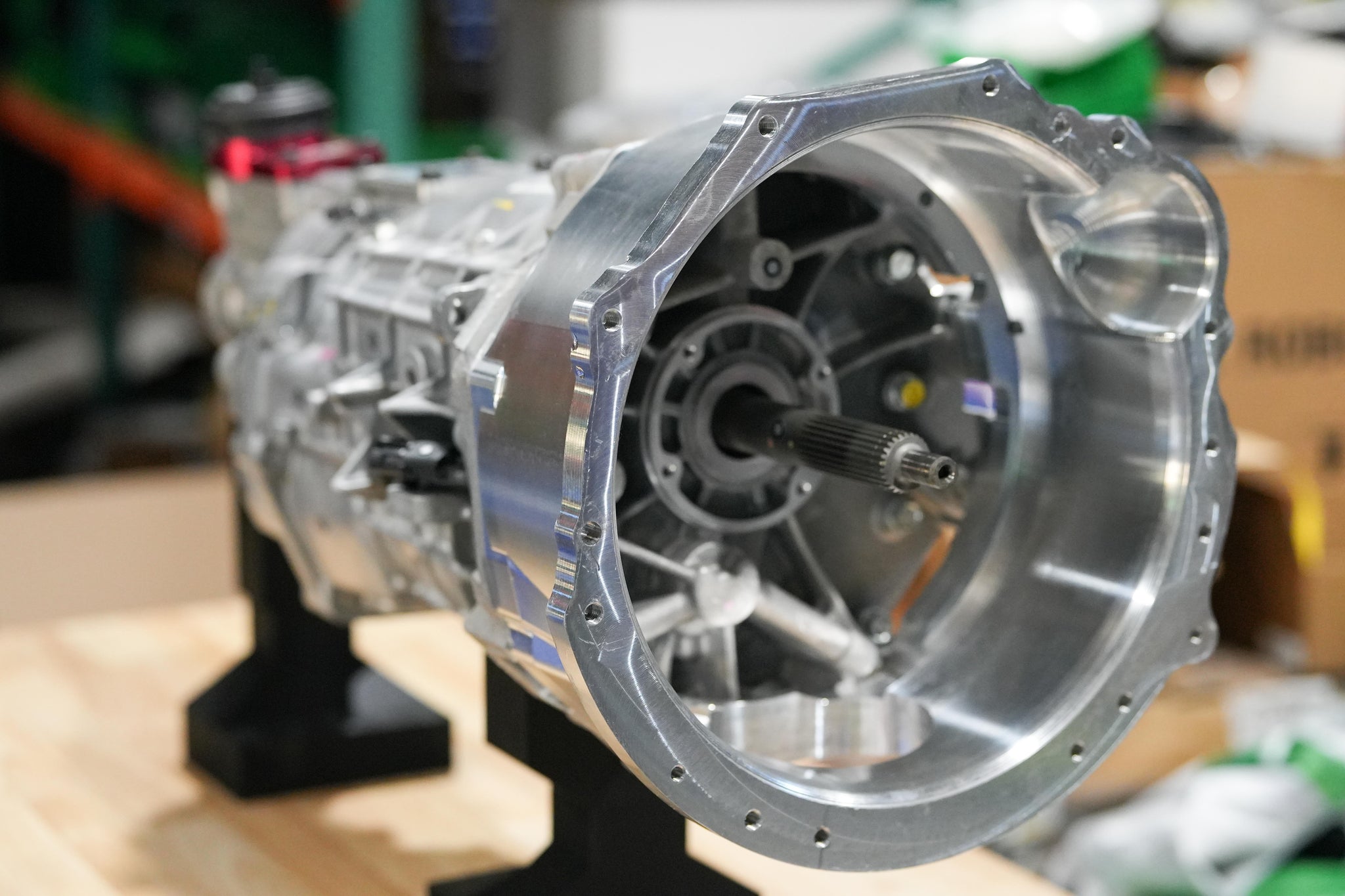

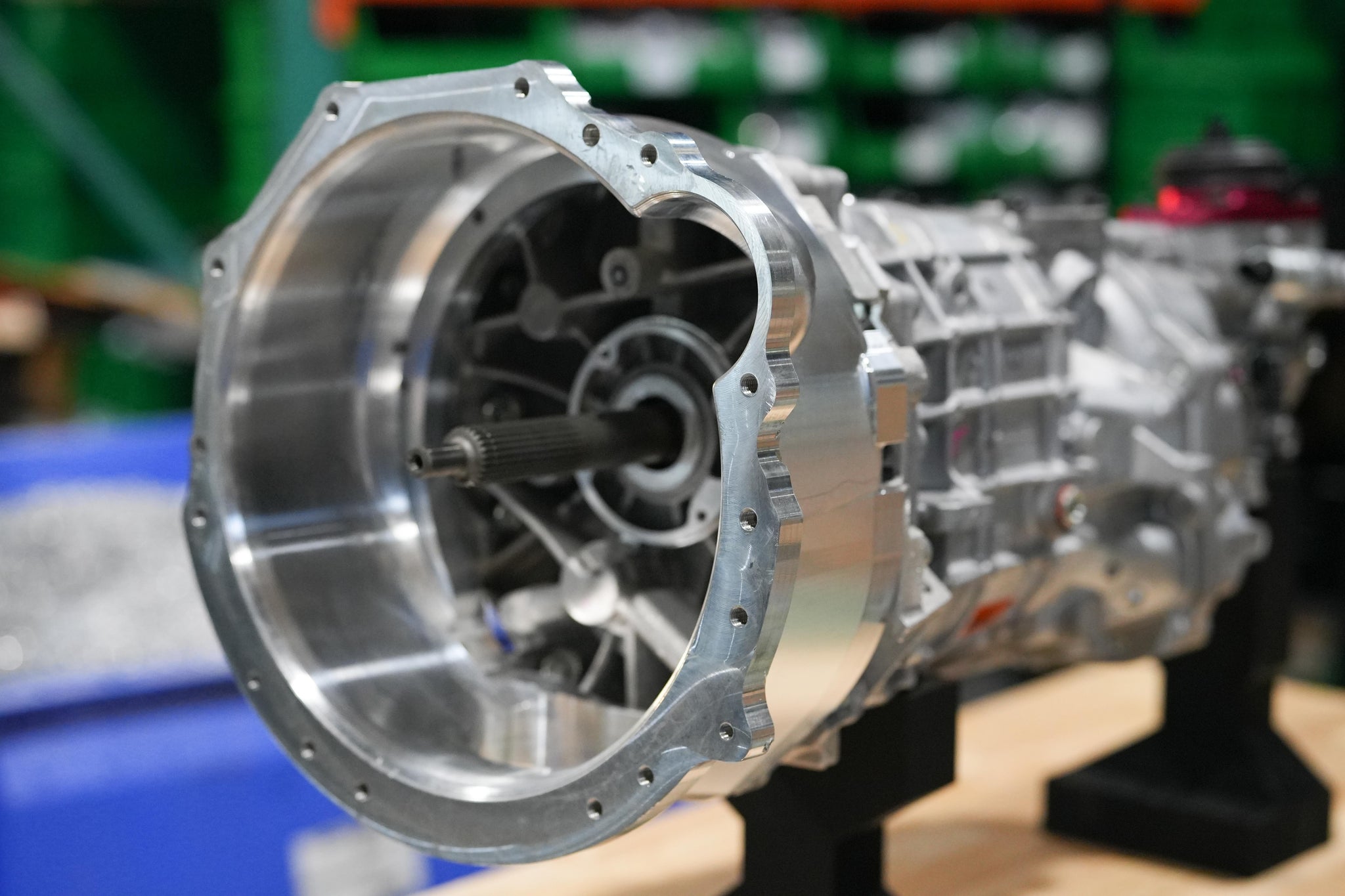

- AutoSports Engineering billet JZ-to-Magnum bellhousing
- Modified and shaved transmission case for improved tunnel clearance

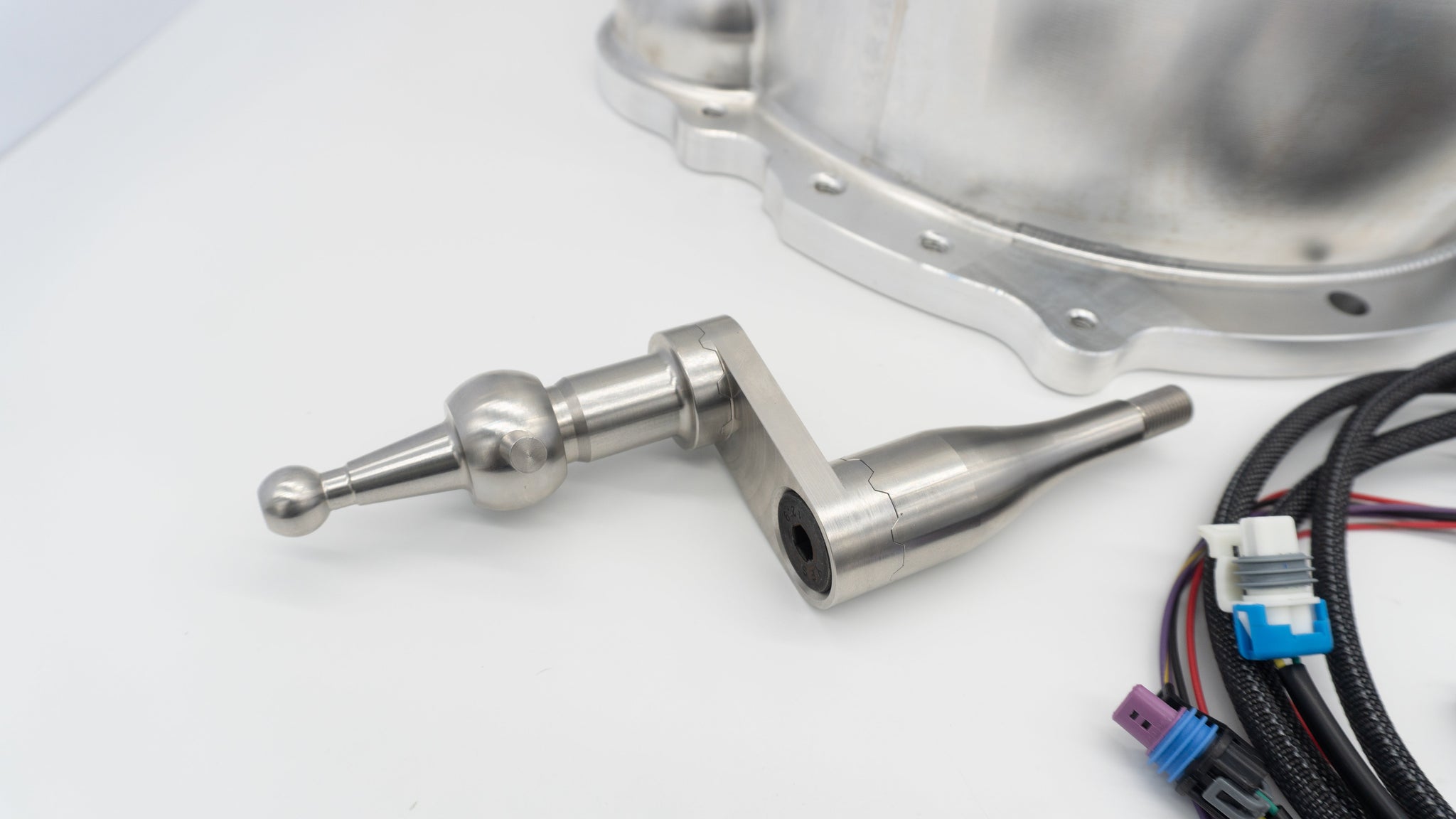

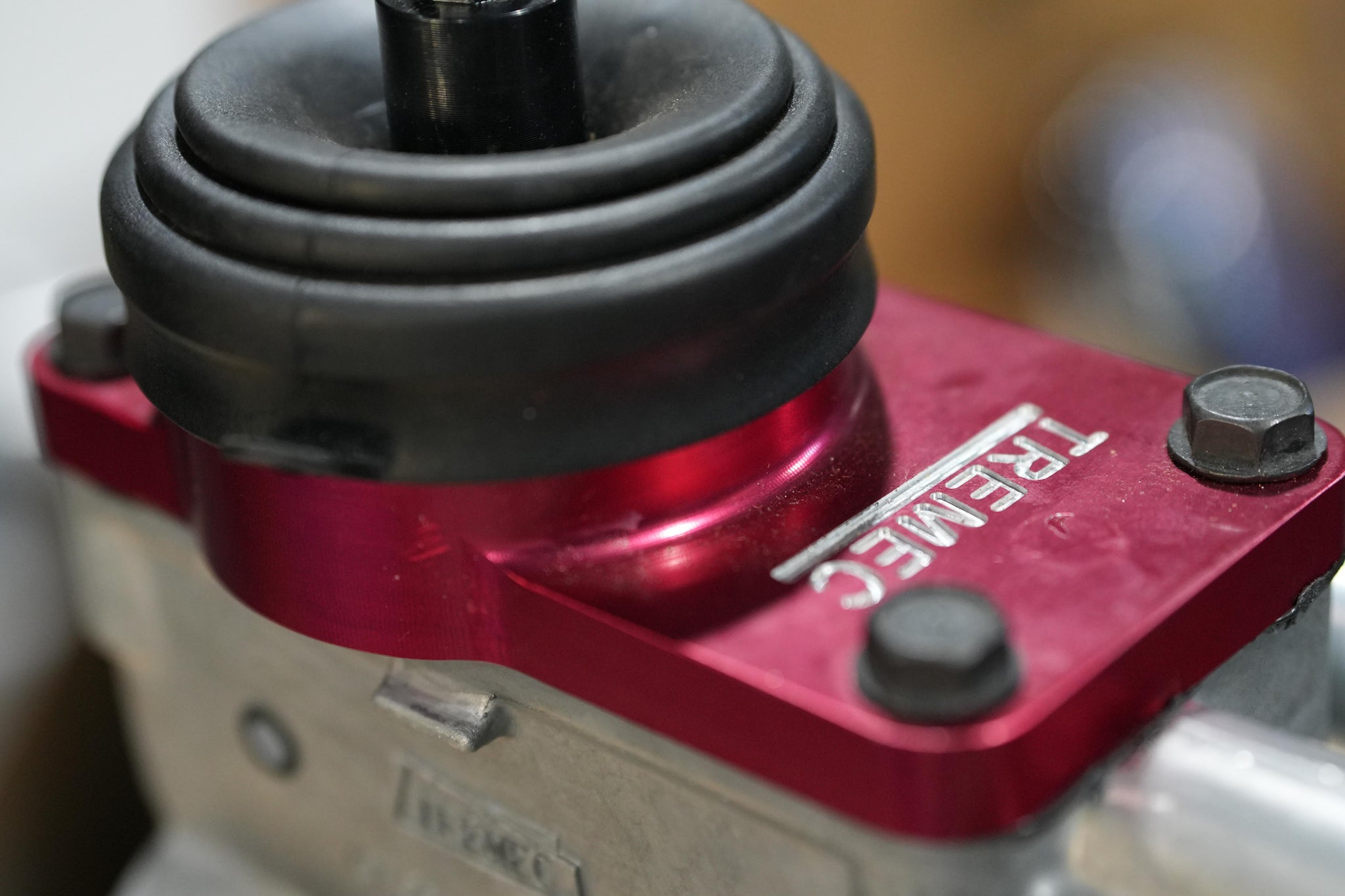

- Custom shifter with a 2-inch offset to center the shifter in the factory console
- Bowler wireless Bluetooth speed module or PNP harness for a standalone ECU

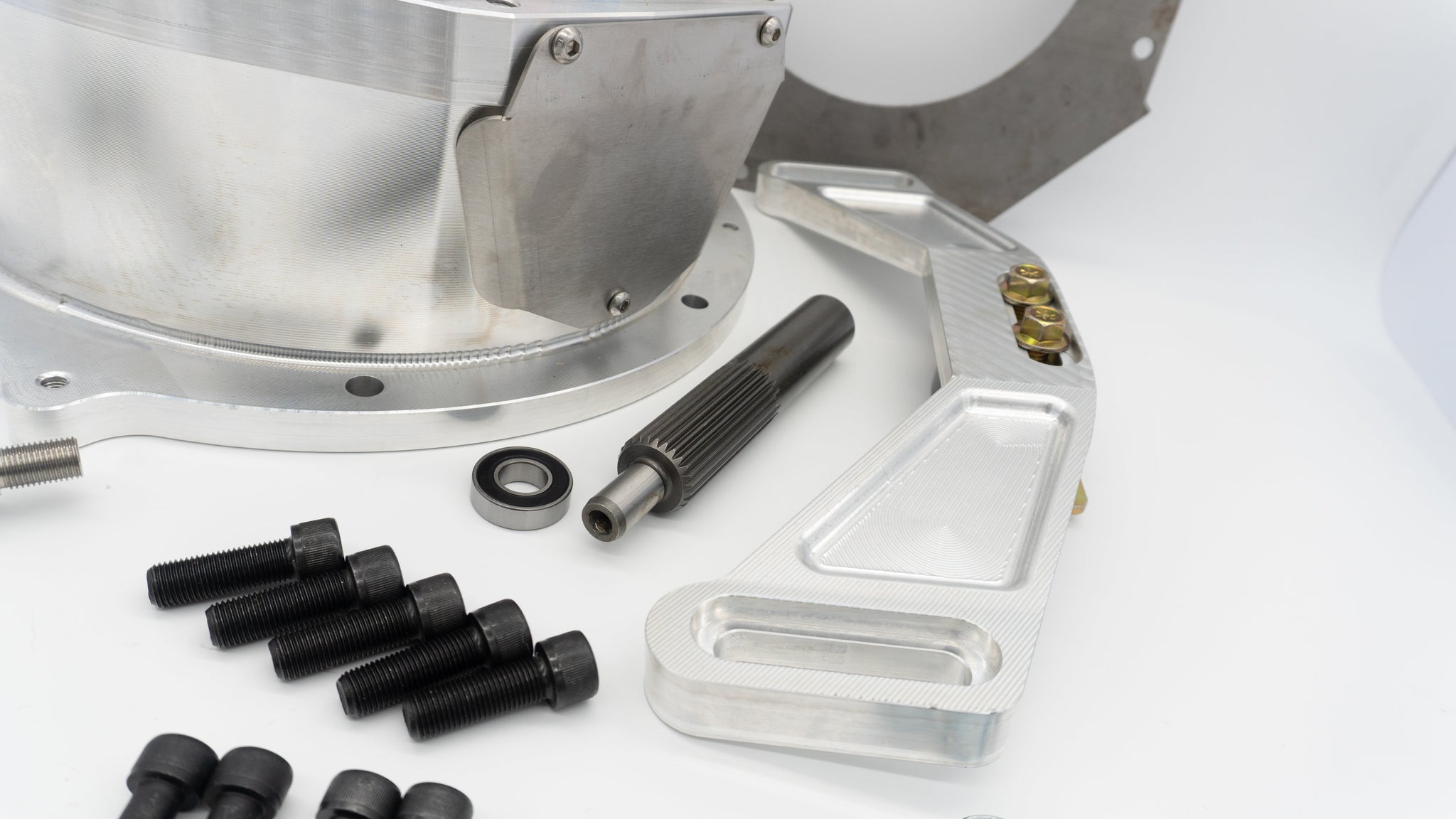

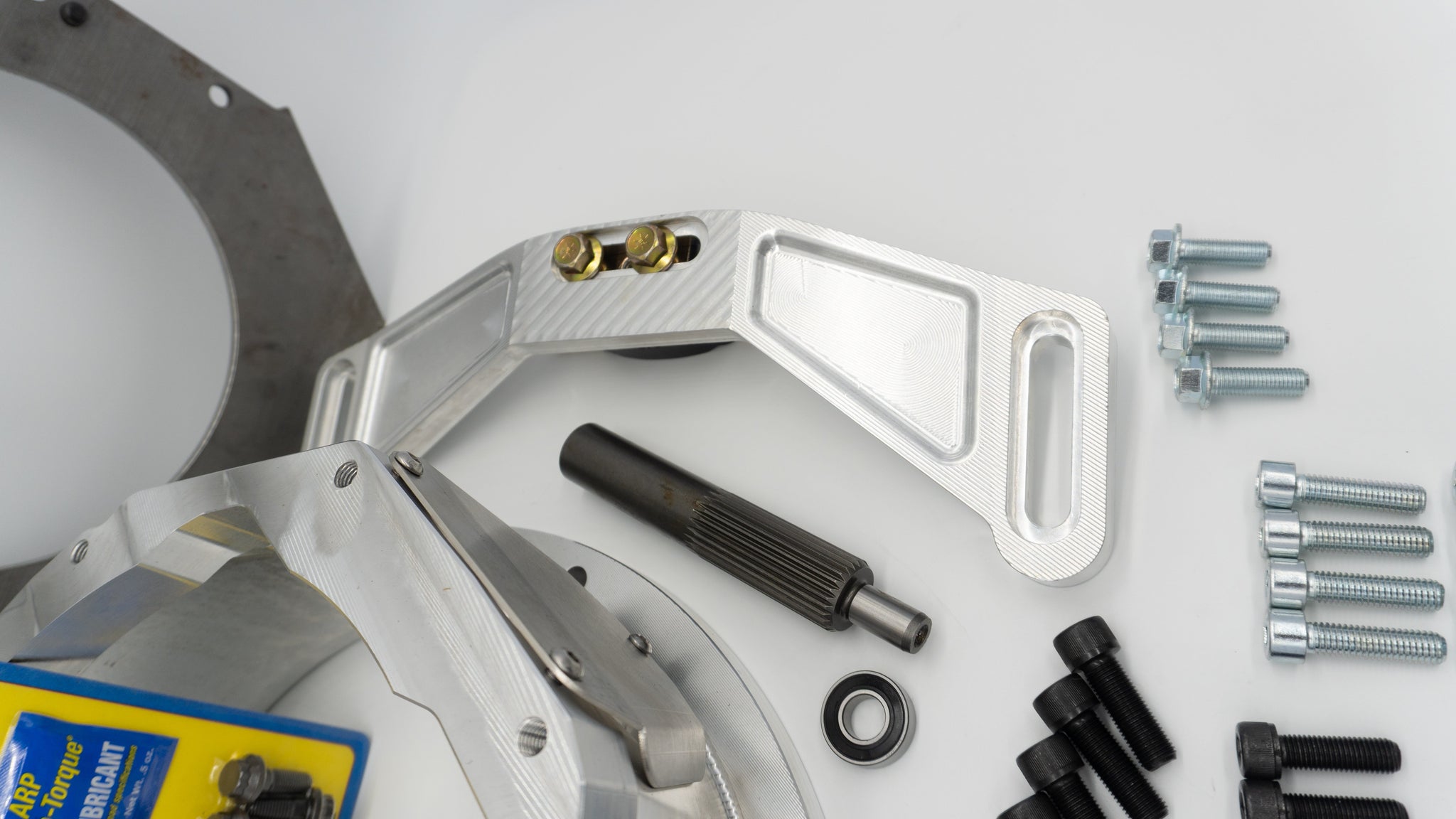

- MK3 Supra billet transmission crossmember
- Urethane transmission mount

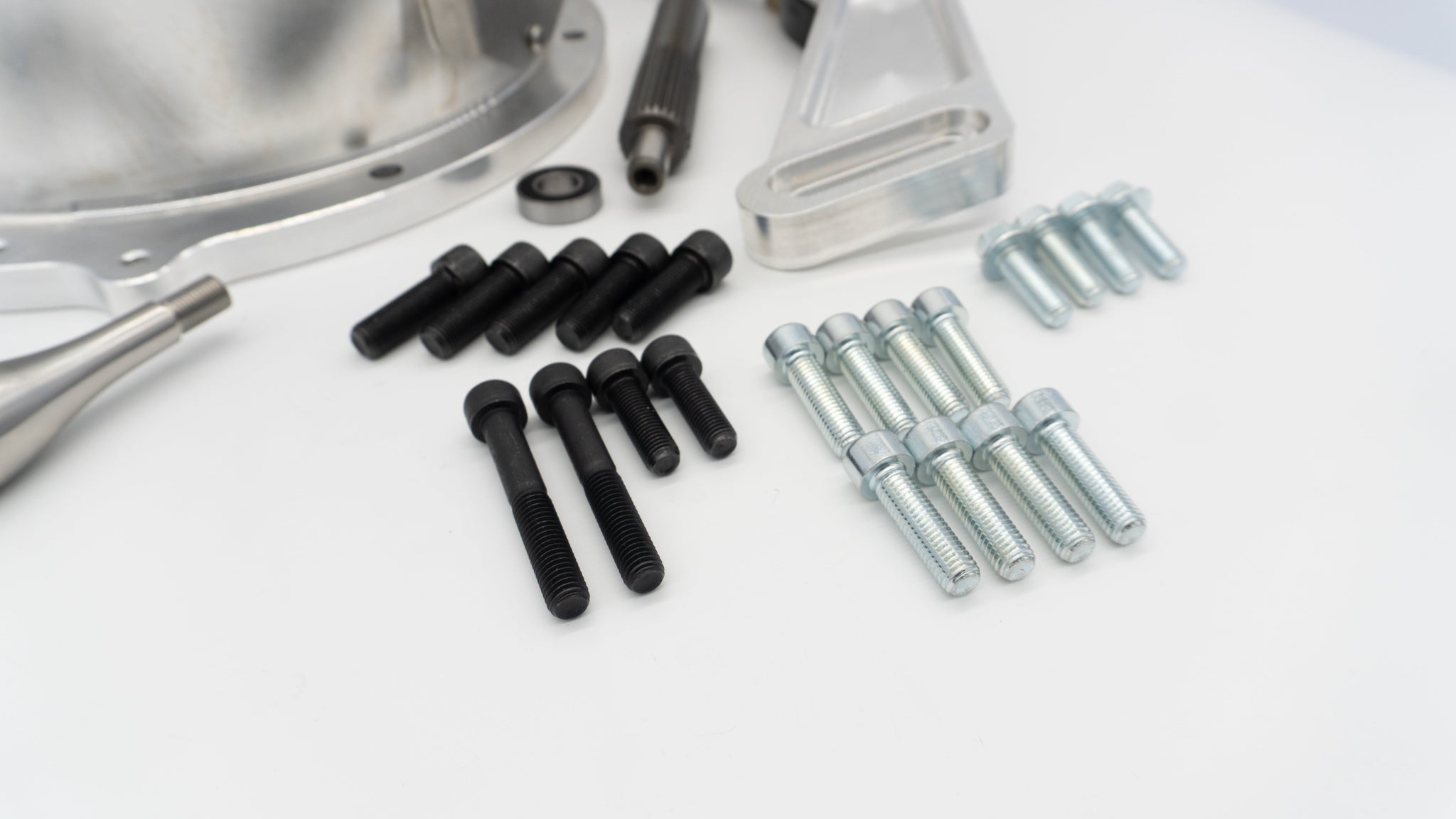

- 12.9-grade assembly and installation hardware
Transmission Options
- Close-ratio TREMEC Magnum-F TUET16362
- First: 2.66
- Second: 1.78
- Third: 1.30
- Fourth: 1.00
- Fifth: 0.80
- Sixth: 0.63
- Wide-ratio TREMEC Magnum-F TUET16363
- First: 2.97
- Second: 2.10
- Third: 1.46
- Fourth: 1.00
- Fifth: 0.80
- Sixth: 0.63
Specs and Features
- Manufacturer part number: 80002
- Six-speed manual transmission conversion
- 26-spline input shaft
- 31-spline output shaft
- Published TREMEC torque capacity: 700 lb-ft
- Double-overdrive gearset
- Electronic vehicle-speed output
- Hydraulic clutch release configuration
- Chassis-specific installation components for the MK3 Supra
Product Description
Swapping a T56 Magnum into an A70 Supra usually means piecing together a bellhousing, shifter, crossmember and wiring, then figuring out how to make everything fit the chassis. AutoSports Engineering builds this kit around the MK3 Supra and Toyota JZ engine, so the major conversion parts are already matched.
The kit starts with a brand-new TREMEC Magnum-F instead of a used T56 with an unknown history. ASE modifies the transmission case for additional tunnel clearance, then adds a two-inch offset shifter that puts the shifter in the factory console instead of leaving you to modify the interior around it.
The billet crossmember and urethane mount support the transmission in the A70 chassis. You also get a choice between the Bowler wireless Bluetooth speed module or a PNP harness for a standalone ECU, giving the swap a clean way to handle the vehicle-speed signal and reverse lockout.

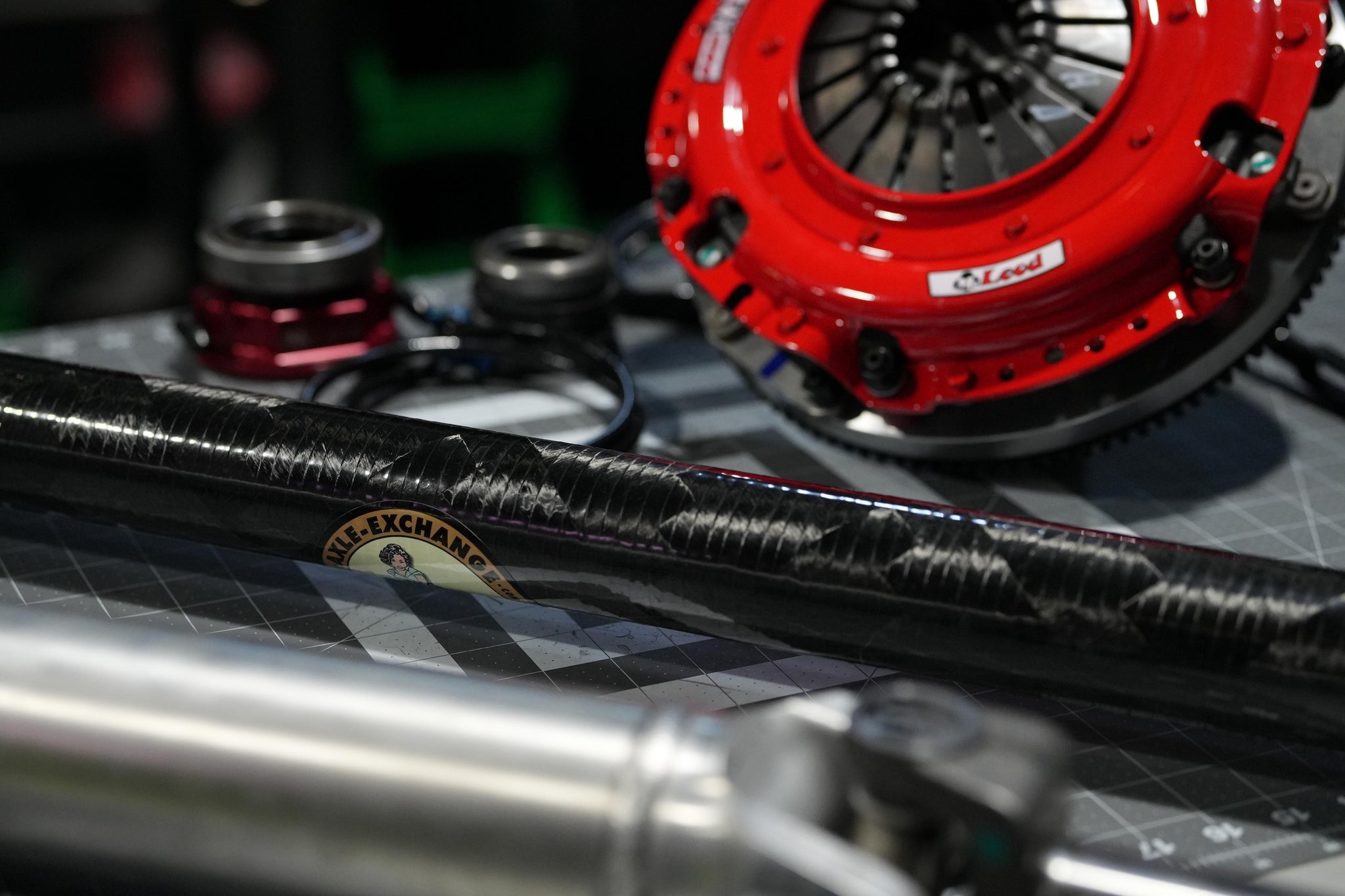

Clutch and Driveshaft Requirements
A clutch and MK3 Supra driveshaft are required and are not included with the base conversion kit. AutoSports Engineering offers aluminum and carbon-fiber driveshafts for the factory Toyota rear end or a Ford 8.8 conversion.

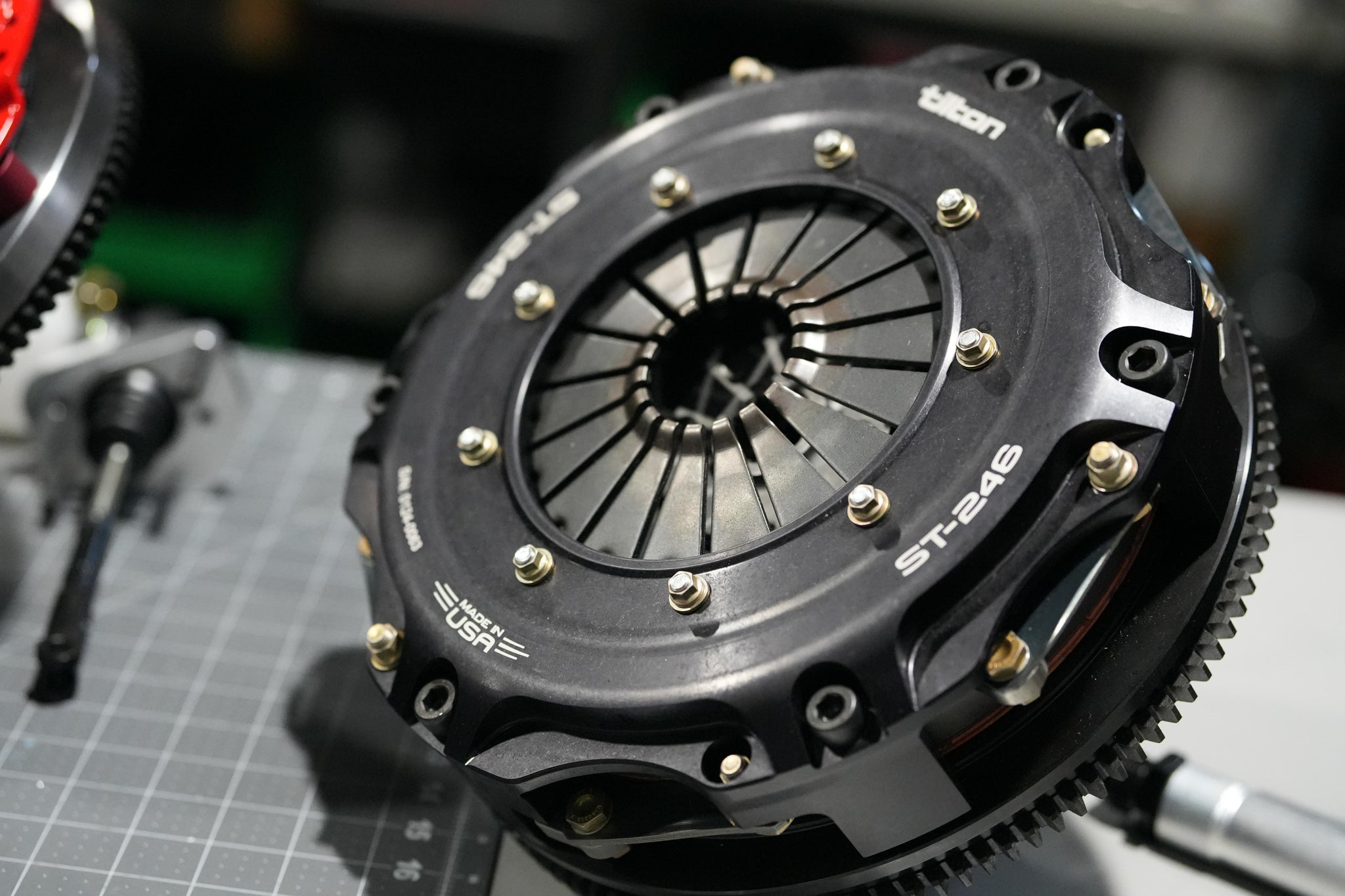

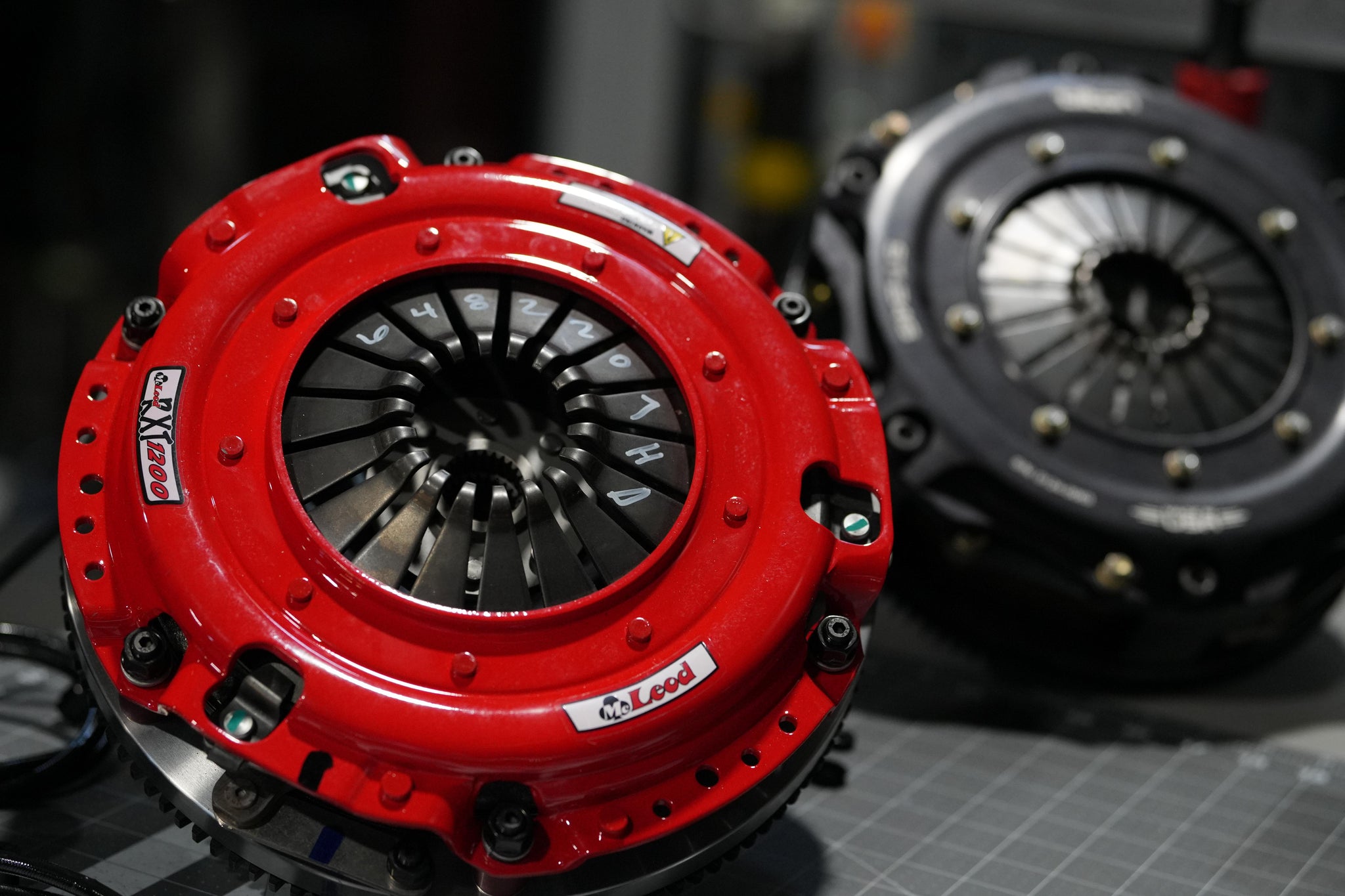

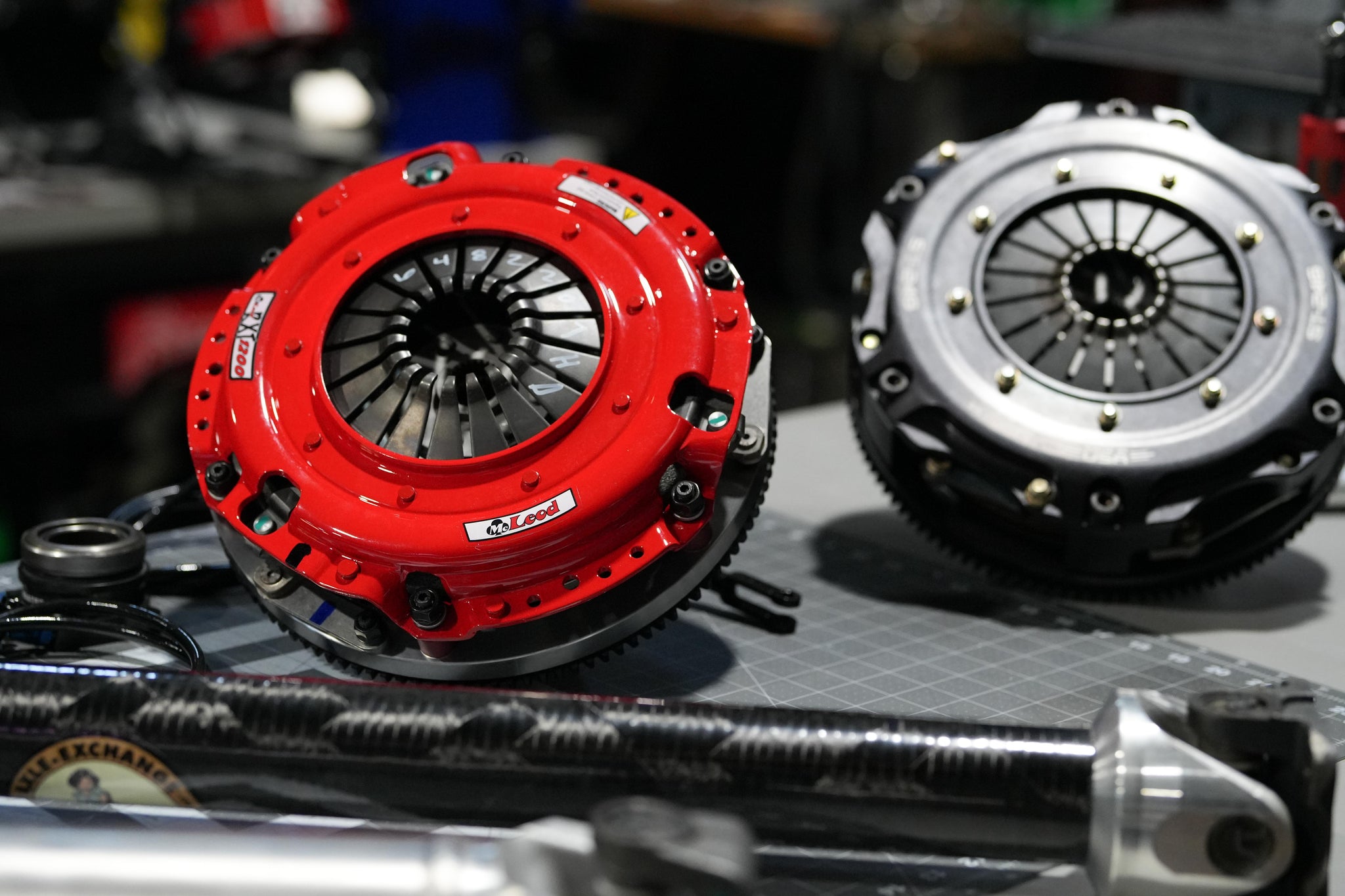

ASE also offers Clutch Masters FX1000 and Tilton ST246 twin-disc clutch setups. The FX1000 includes an adjustable hydraulic release bearing. The ST246 requires a compatible hydraulic release bearing to be purchased separately.
Before You Buy
Confirm the engine, rear differential, clutch choice, transmission ratio and wiring setup being used in the car. The crossmember, mount, offset shifter and wiring option are already included, so they do not need to be purchased separately.
Pairs Well With
- Mishimoto Aluminum Radiator for Toyota Supra MK3 - A chassis-specific aluminum radiator upgrade for the A70 Supra. JZ-swapped cars may require custom coolant-hose routing based on the engine and radiator setup.
- Dress Up Bolts Titanium Valve-Cover Hardware for Toyota 1JZ-GTE / 2JZ-GTE - Replaces the visible valve-cover hardware with Grade 5 titanium bolts and fits both VVT-i and non-VVT-i JZ valve covers.
About AutoSports Engineering
AutoSports Engineering builds drivetrain conversion, fuel-system and fabrication parts for JZ-powered Toyota and Lexus projects. Their lineup includes transmission adapters, crossmembers, driveshafts and clutch-hydraulic parts made around the combinations people actually use in swaps.
