Put a Nissan CD009 six-speed behind the 1JZ or 2JZ in your Lexus IS300 with a kit that includes the adapter plate, matched flywheel, transmission crossmember and mount.
Fitment Information
- Lexus IS300 XE10 / JCE10
- IS300 (2001, 2002, 2003, 2004, 2005)
- Compatible engines
- 1JZ-GTE
- 2JZ-GE
- 2JZ-GTE
- VVT-i and non-VVT-i applications
- Transmission
- Nissan CD009 six-speed manual transmission
Fitment Notes
- Requires a Toyota A340 automatic transmission bellhousing
- Check the bellhousing casting for the J1, J2 or J3 identification before ordering
- A J3 adapter plate can be requested after placing the order
- The Toyota A340 bellhousing is not included
- The IS300 requires the rear-mount shifter configuration
- A front-mount shifter will sit too far forward in the IS300 center console
- A vehicle-specific driveshaft is required and sold separately

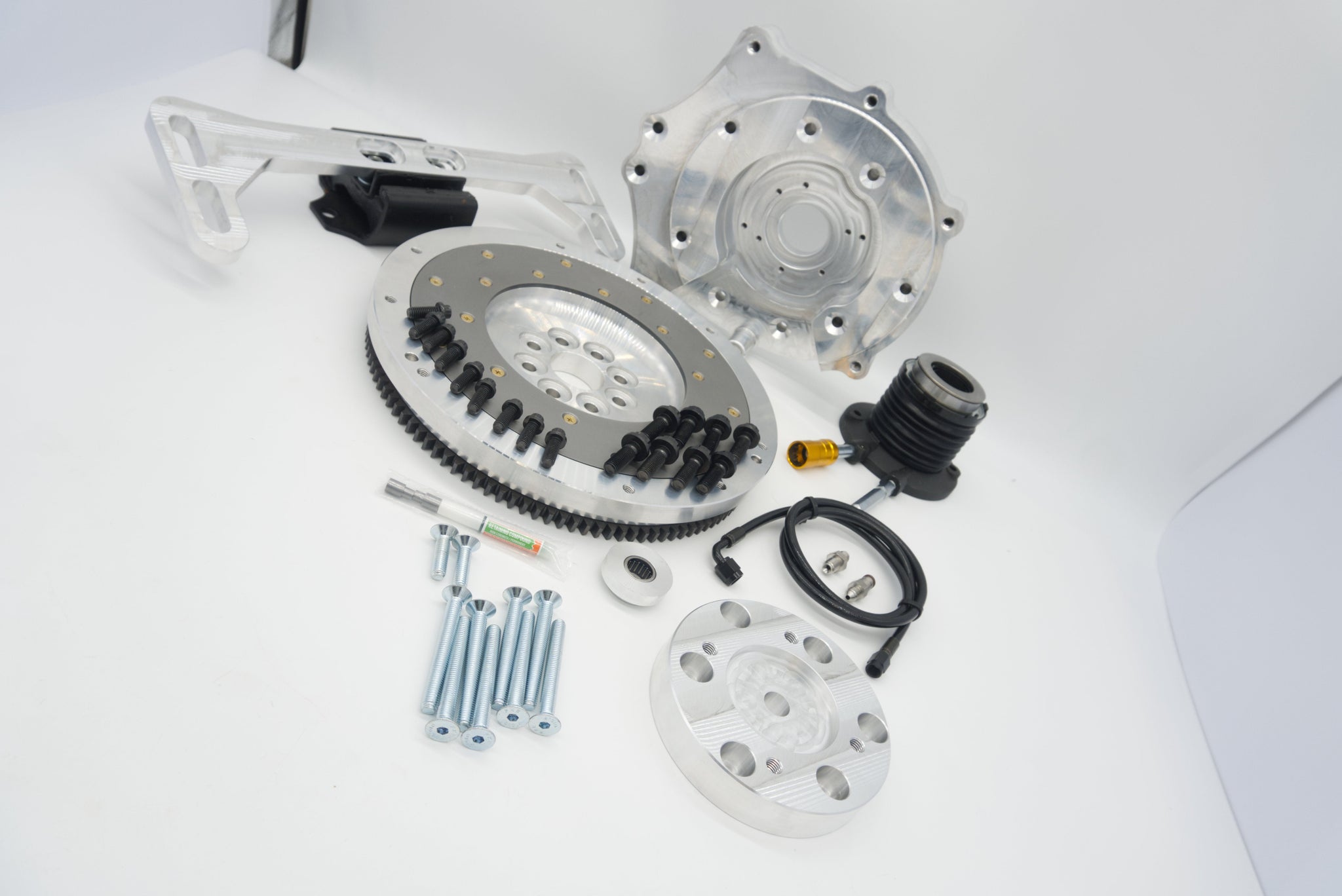

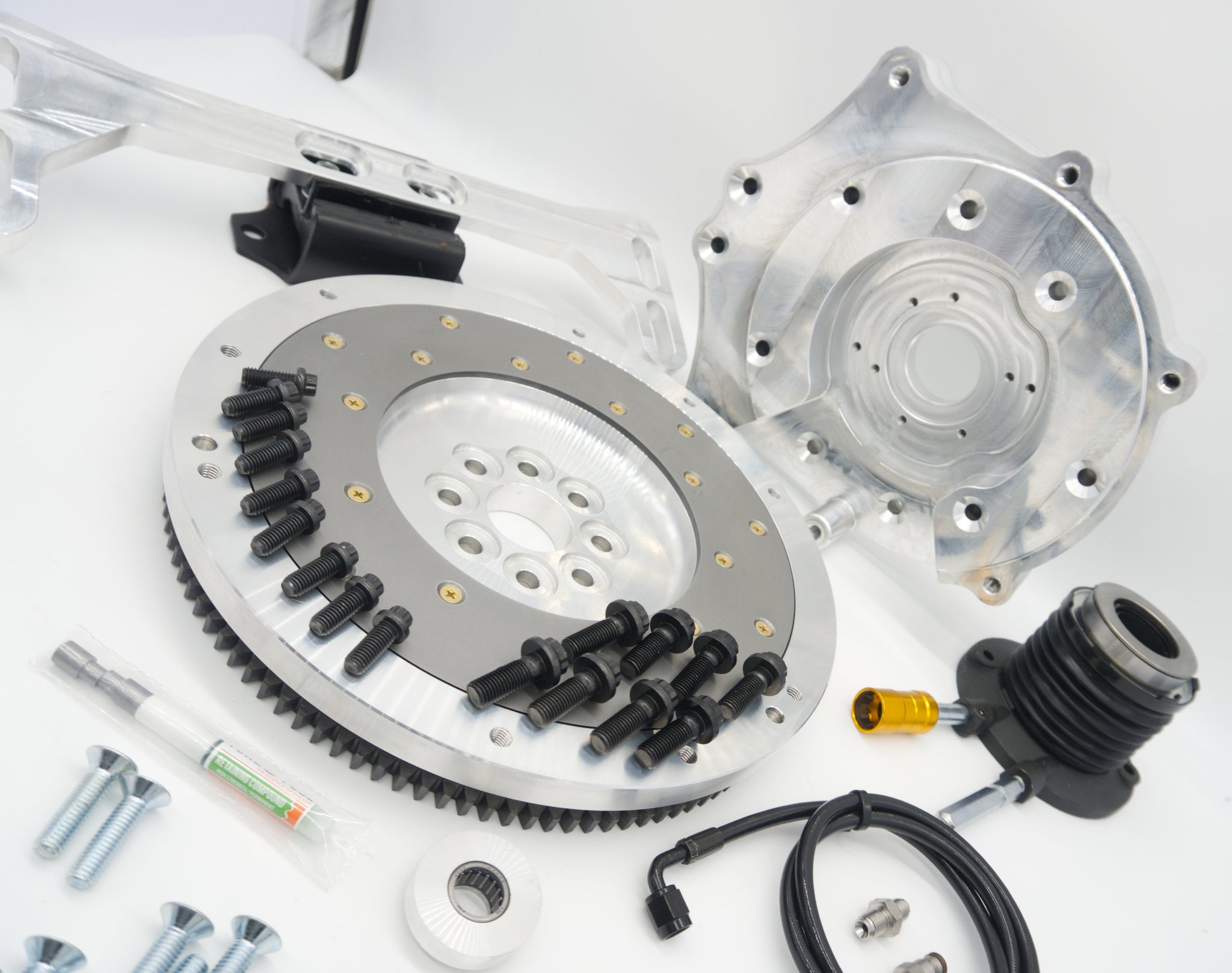

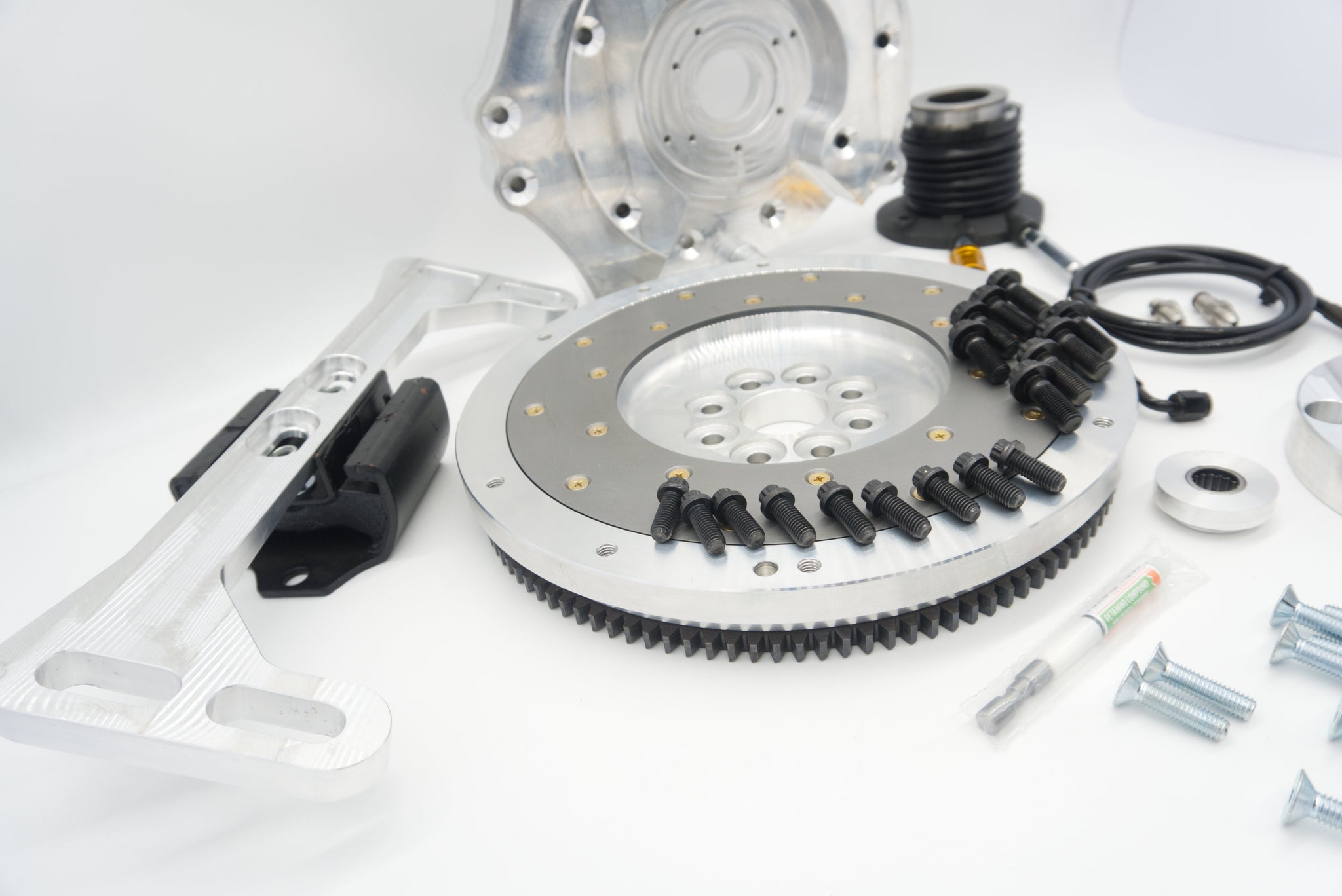

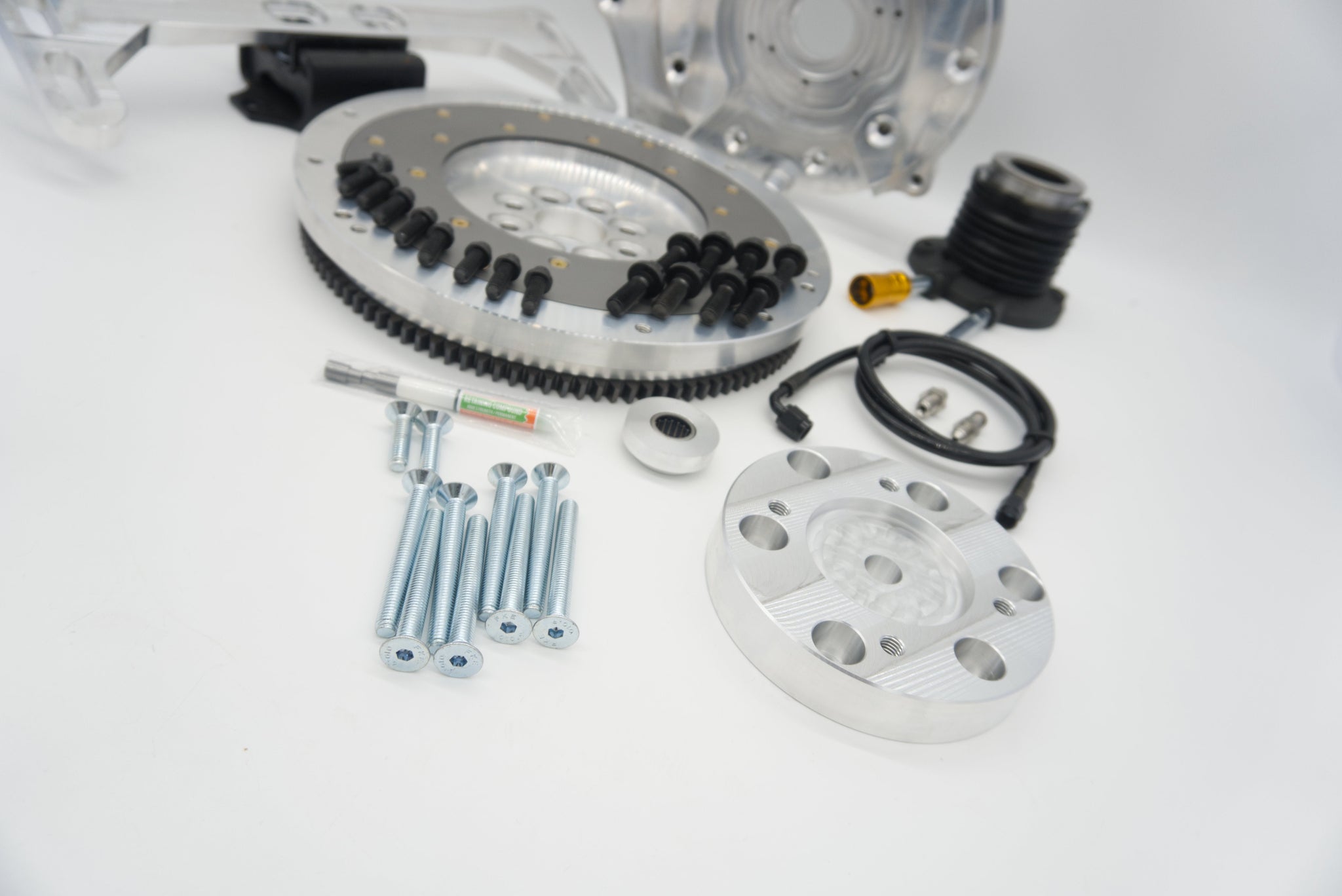

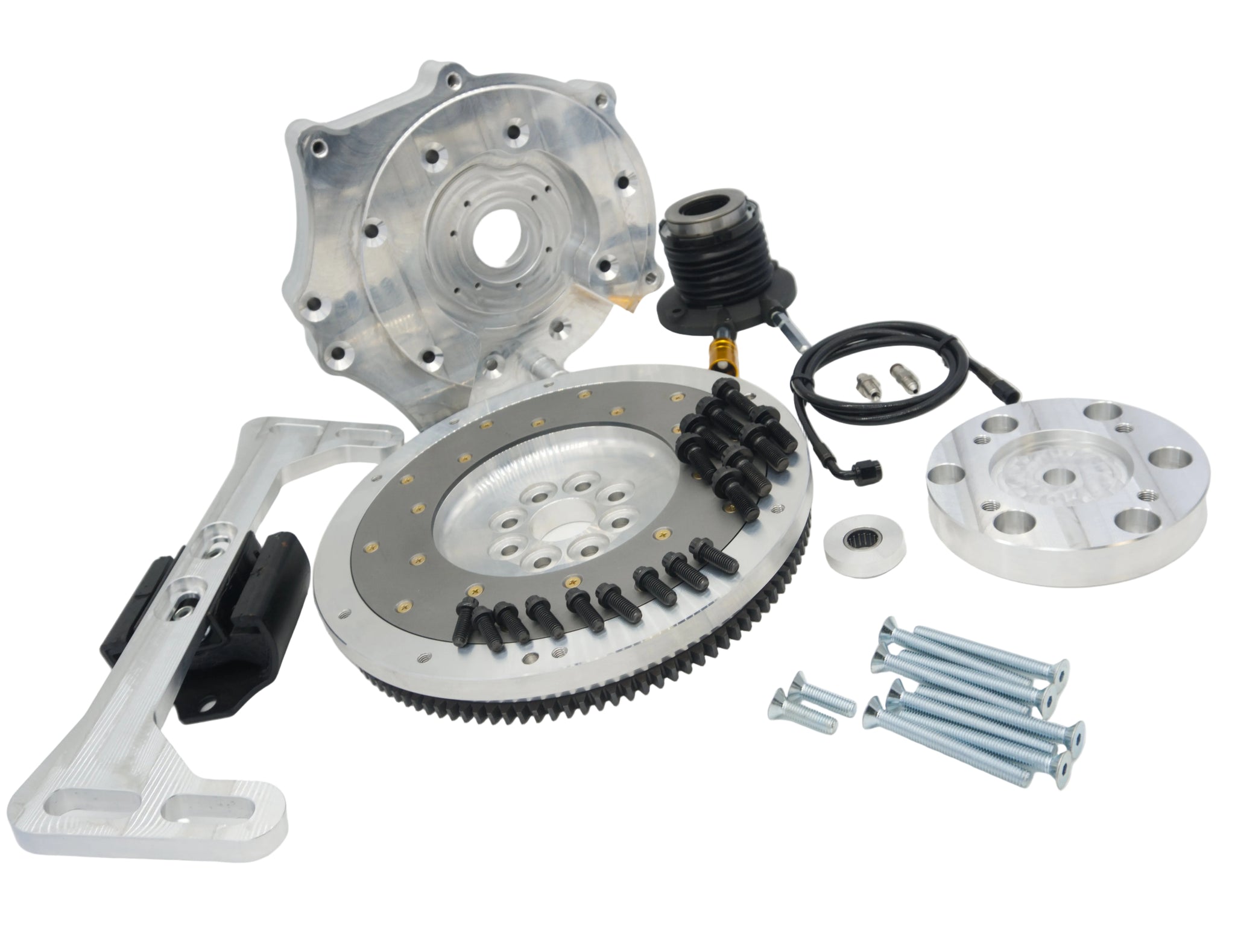

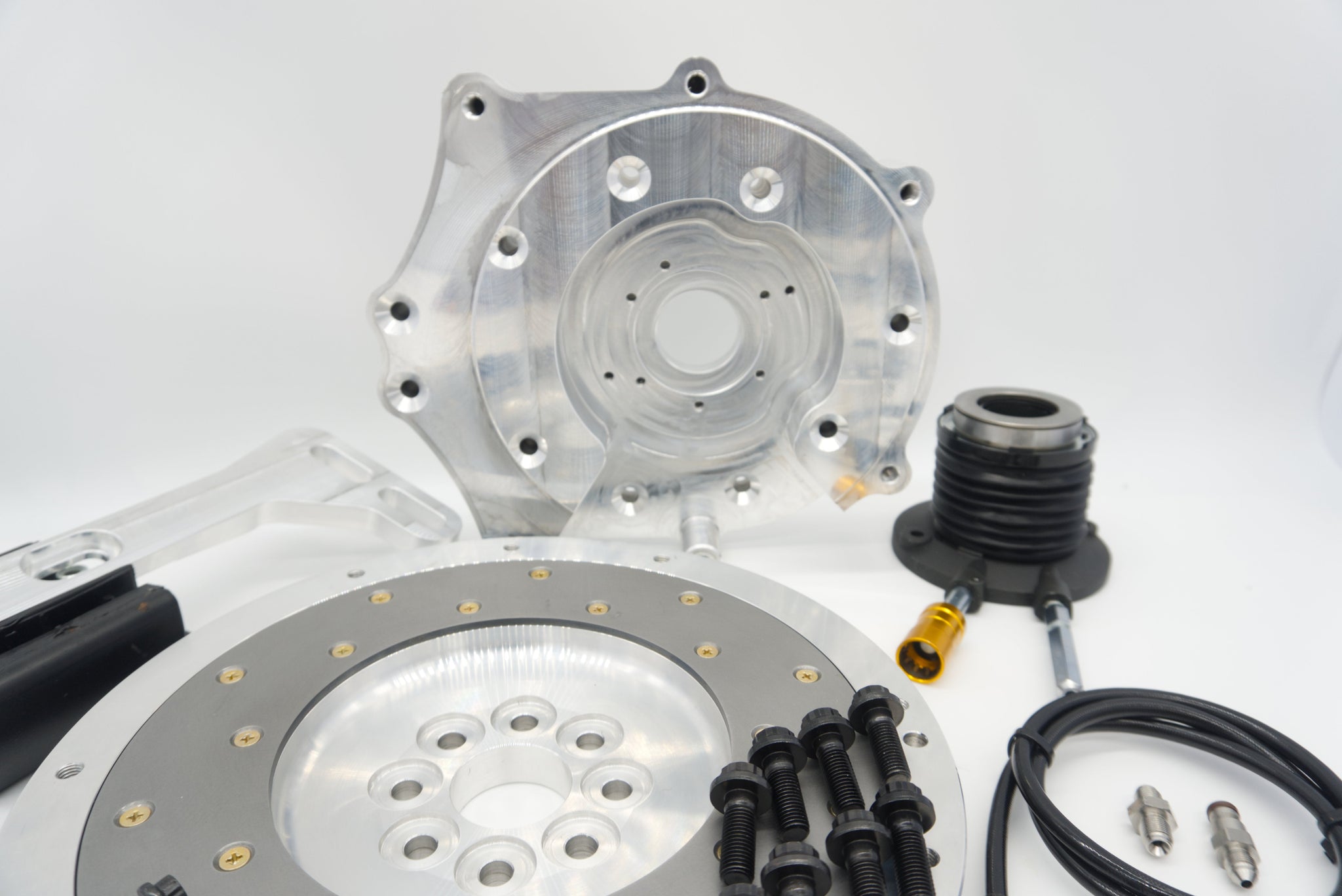

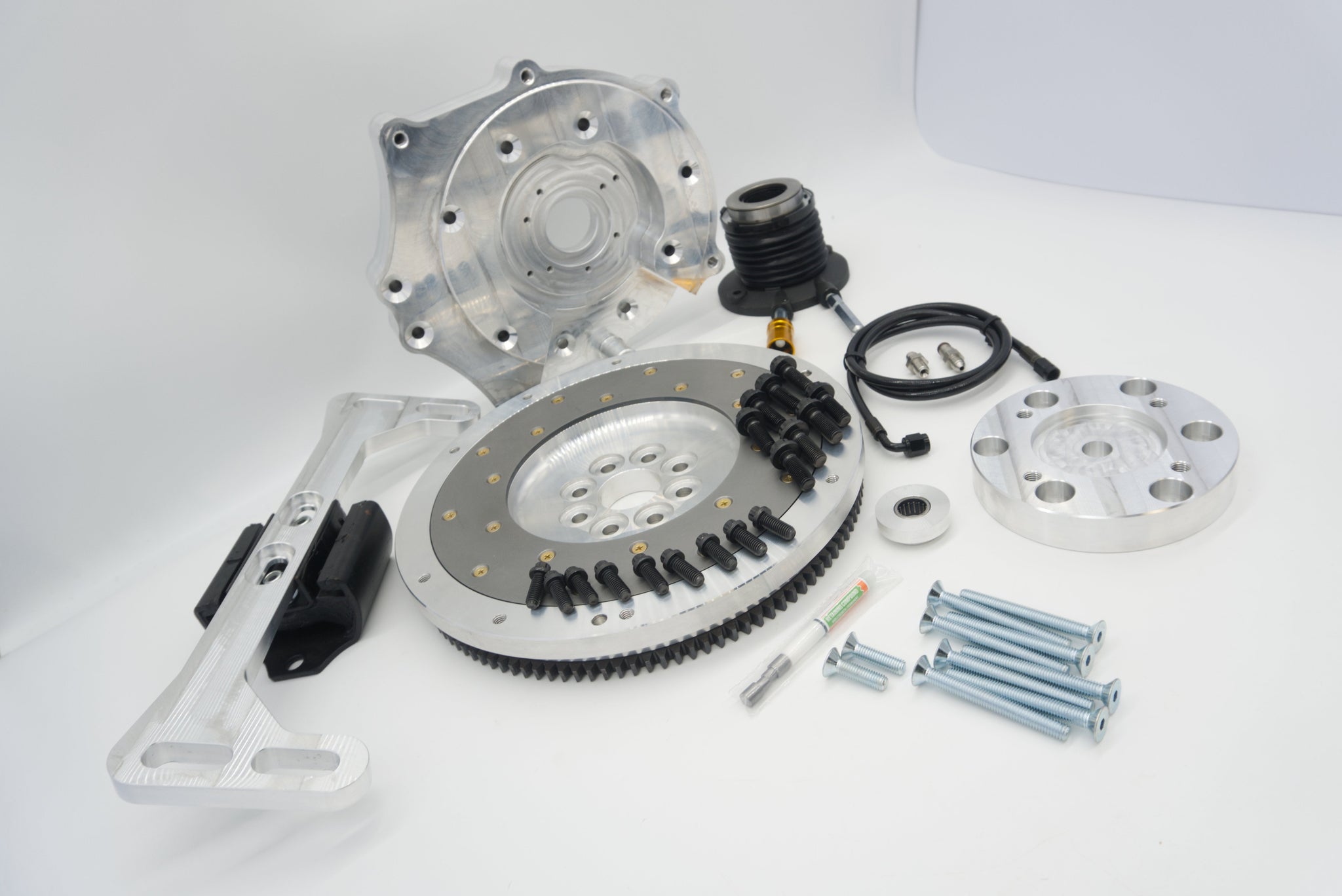

Base Kit Includes
- Billet 6061 aluminum CD009 adapter plate
- ASE custom flywheel for the CD009 conversion
- IS300 transmission crossmember and mount
- Pilot bearing and adapter bushing
- Adapter plate hardware
- Bellhousing hardware
- Flywheel hardware
- Transmission crossmember hardware
Available Options
- Kit
- Base Kit
- T56 Slave and Line Combo
- Tilton Slave and Line Combo
- Shifter
- None
- Add Rear Shifter
- Master Cylinder
- Don't Need
- LHD 3/4-inch Tilton
- LHD 7/8-inch Tilton
- RHD 3/4-inch Wilwood
- RHD 7/8-inch Wilwood
Specs and Features
- Manufacturer part number: 11540-1
- Converts a 1JZ or 2JZ engine to a Nissan CD009 six-speed transmission
- Chassis-specific crossmember and mount for the Lexus IS300
- Compatible with single-disc Nissan 350Z and 370Z clutch kits from ACT, SPEC, Competition Clutch, Clutch Masters and other manufacturers
- Uses an ASE flywheel made for the CD009 clutch setup
- Optional clutch hydraulic and rear-shifter components
Product Description
Putting a CD009 behind a 1JZ or 2JZ takes more than an adapter plate. The transmission still needs the correct flywheel, pilot bearing, chassis mount and shifter position. AutoSports Engineering puts those main pieces together in one package made around the first-generation Lexus IS300.
The billet adapter plate mates the JZ engine and Toyota A340 bellhousing to the Nissan six-speed transmission. ASE includes a matched flywheel that works with compatible single-disc 350Z and 370Z clutch kits, along with the IS300 crossmember and mount needed to support the transmission in the chassis.
You can also add the correct rear-mount shifter, slave-cylinder setup and clutch master cylinder based on how the car is being built. This makes it easier to put together the full IS300 CD009 swap without trying to match unrelated conversion parts from different manufacturers.
Before You Buy
Check the identification stamped into your Toyota A340 automatic bellhousing and confirm whether it is a J1, J2 or J3 before ordering. The transmission, A340 bellhousing, clutch kit and driveshaft are not included with the base kit.
ASE uses a 1999 Camaro T56-style slave cylinder with the standard cut-bellhousing setup. The slave cylinder needs to be installed and the lines routed before the bellhousing is bolted to the adapter plate.
Pairs Well With
- AutoSports Engineering Clutch Master Cylinder Upgrade Kit for Lexus IS300 - Gives an IS300 CD009 manual swap a purpose-built clutch hydraulic setup with left-hand-drive, right-hand-drive and bore-size options.
- ACT Heavy Duty Street Clutch Kit for Nissan 350Z - A single-disc 350Z clutch option for the ASE custom flywheel. ASE lists ACT among the compatible clutch manufacturers for this CD009 adapter kit.
Watch the Installation Video
Here is an installation video from AutoSports Engineering showing how to install the CD009 adapter plate on a 1JZ or 2JZ setup.
About AutoSports Engineering
AutoSports Engineering builds drivetrain conversion, fuel-system and fabrication parts for JZ-powered Toyota and Lexus projects. Their lineup includes transmission adapters, crossmembers, driveshafts and clutch-hydraulic parts made around the combinations people actually use in swaps.
