Run gasoline, E85 or any mixture of the two in your LS1-powered fourth-generation Camaro, Firebird Formula or Trans Am without switching maps every time you fill up. The Advanced Fuel Dynamics ProFlex Commander reads the actual ethanol content in the fuel and adjusts injector operation as the mixture changes.
Advanced Fuel Dynamics reports gains of 7 to 10 percent in wheel horsepower and torque when running E85. You can still fill the car with pump gas when E85 is not available, then switch back to ethanol later without draining the tank or loading a different map.
Fitment Information
- Chevrolet Camaro Z28 4th Gen, 5.7L LS1 V8 (1998, 1999, 2000, 2001, 2002)
- Chevrolet Camaro SS 4th Gen, 5.7L LS1 V8 (1998, 1999, 2000, 2001, 2002)
- Pontiac Firebird Formula 4th Gen, 5.7L LS1 V8 (1998, 1999, 2000, 2001, 2002)
- Pontiac Firebird Trans Am 4th Gen, 5.7L LS1 V8 (1998, 1999, 2000, 2001, 2002)
- Pontiac Firebird Trans Am WS6 4th Gen, 5.7L LS1 V8 (1998, 1999, 2000, 2001, 2002)
Fitment Note
This kit only fits 1998-2002 GM F-Body models equipped with the 5.7L LS1 V8. It does not fit 1993-1997 LT1 cars or Camaro and Firebird models equipped with the 3.4L or 3.8L V6.
Commander Options

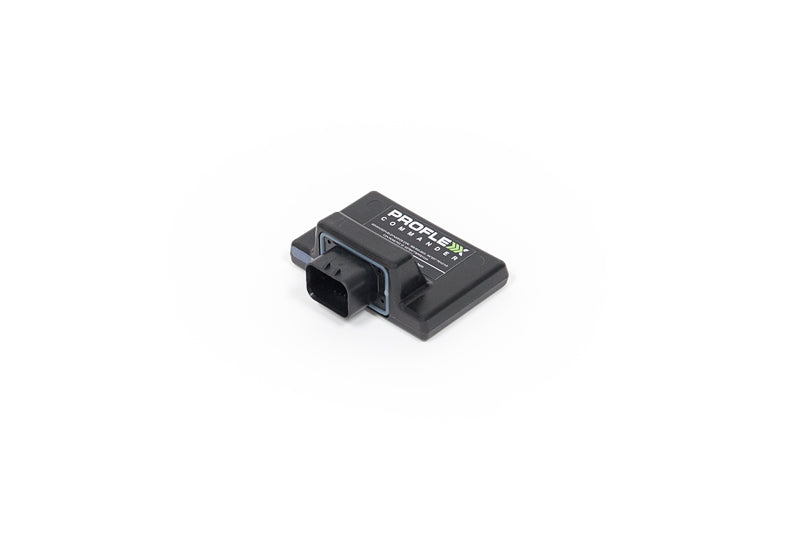

- Standard Commander: Made for naturally aspirated cars with factory injectors or mild bolt-on modifications. This is the right option for most street-driven LS1 F-Bodies. Manufacturer part number PFC-4GFB-1-1.
- Commander Pro: Made for turbocharged, supercharged or heavily modified cars using 60 lb/hr, 600cc or larger injectors. It uses more precise injector management for larger injectors and gives you room to make additional changes later. Manufacturer part number PCP-4GFB-1-1.
If the car is naturally aspirated with factory-size injectors, go with the Standard Commander. If it has boost or larger injectors, go with the Commander Pro.
Fuel Sensor Options

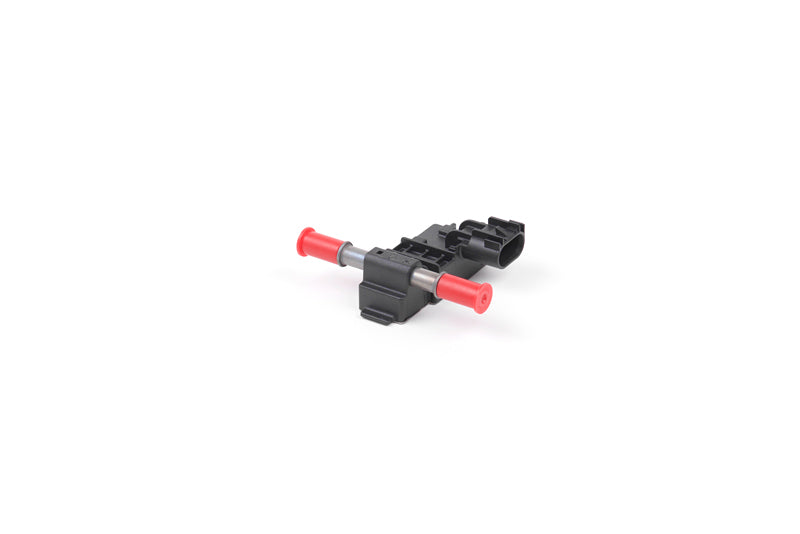

- Standard GM/Continental Sensor: The right choice for stock and mildly modified fuel systems. AFD recommends it for applications making less than 700 crank horsepower with fuel flow up to 600 liters per hour.
- AFD E-SENSE Sensor: Made for higher-flow fuel systems and builds making 700 horsepower or more. It provides greater flow capacity and adds fuel-temperature monitoring through the ProFlex Connect app.
The selected ethanol-content sensor is included with the kit.

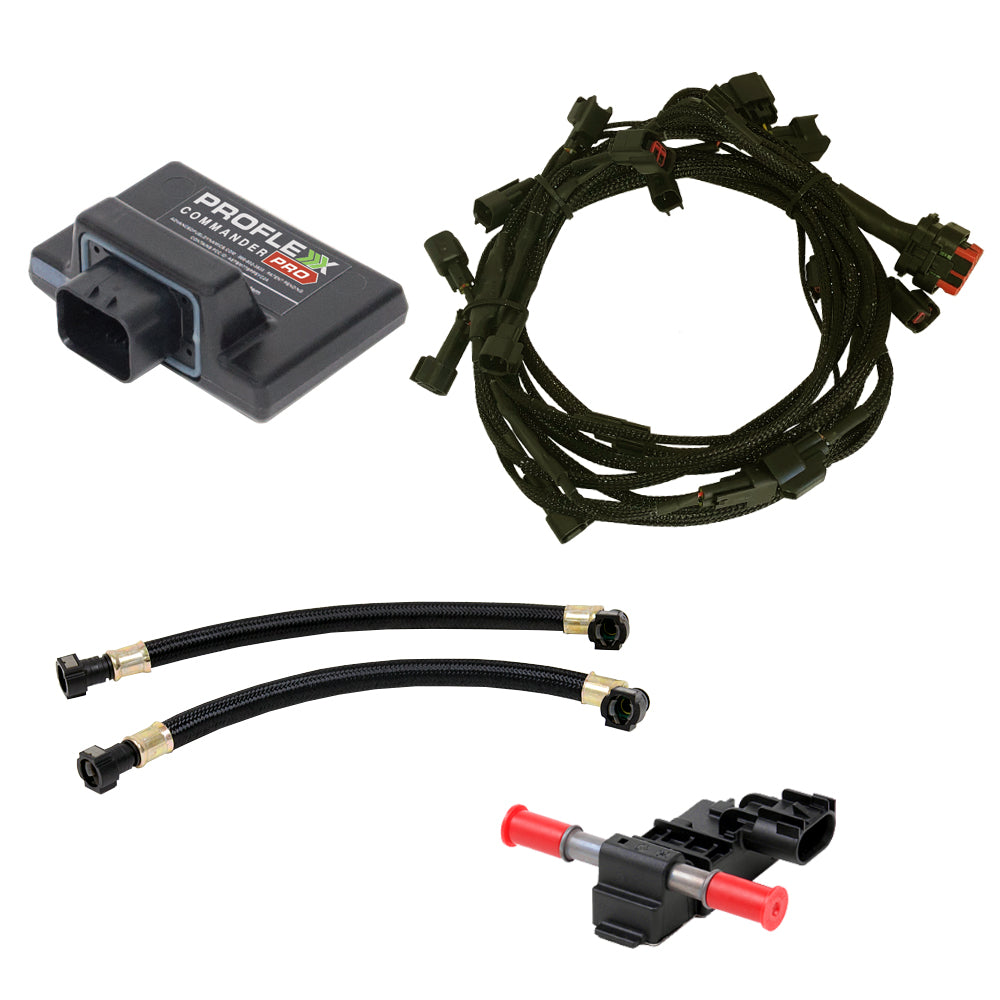

What Is Included
- Standard Commander or Commander Pro module
- Selected ethanol-content sensor

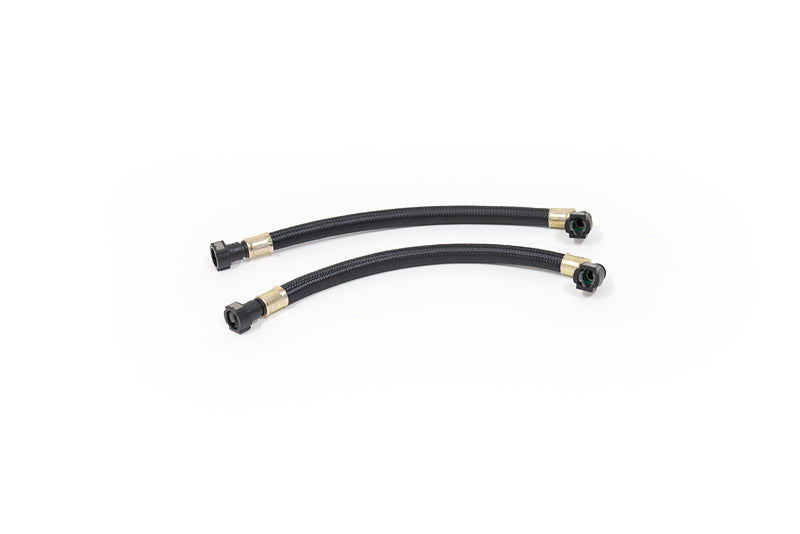

- Vehicle-specific fuel lines and connectors
- Vehicle-specific main injector harness
- Required electrical connections and mounting components
How the ProFlex Commander Works
The ethanol-content sensor measures the actual mixture of gasoline and ethanol passing through the fuel line. The ProFlex Commander uses that information to electronically adjust injector operation for whatever blend is currently in the tank.

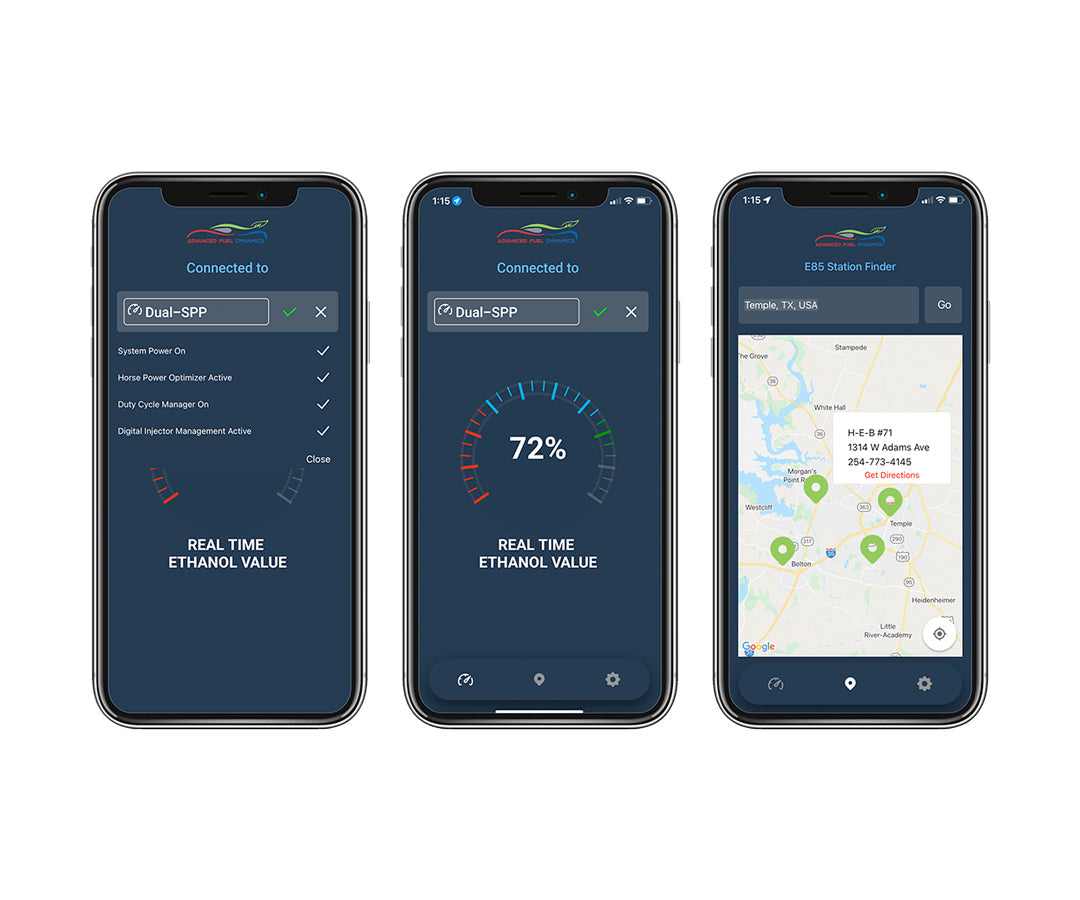

BlendSense technology refreshes the ethanol reading every 30 milliseconds. There are no buttons to push or separate gasoline and E85 maps to select. The free ProFlex Connect app also lets you view ethanol content, locate nearby E85 stations and run system diagnostics from an Apple or Android phone.
Features
- True adaptive E85 flex-fuel operation
- Run gasoline, E85 or any mixture of the two
- No switching between separate gasoline and E85 maps
- Compatible with the stock calibration and compatible performance gasoline tunes
- AFD reports gains of 7 to 10 percent in wheel horsepower and torque on E85
- BlendSense technology with a 30-millisecond refresh rate
- Electronically adjusts injector operation as ethanol content changes
- Cold Start Plus helps with cold-weather starting on higher ethanol blends
- Real-time ethanol-content monitoring through the ProFlex Connect app
- Bluetooth connectivity for Apple iOS and Android devices
- Works with bolt-on modifications and power adders when the correct Commander and fuel system are used
- Limited 12-month manufacturer warranty
Fuel System Requirements
AFD has tested the standard LS1 fuel system with this kit, so a naturally aspirated car with factory injectors does not automatically need a fuel-pump or injector upgrade to run E85.
Supercharged, turbocharged and higher-horsepower cars may need larger injectors, a higher-flow pump or other fuel-system upgrades. The ProFlex Commander manages changing ethanol content, but it does not replace the proper calibration required for larger injectors or forced induction. AFD recommends an E85 or flex-fuel-specific tune for those setups.
Installation Information
AFD estimates installation at under an hour using common hand tools. The supplied injector harness connects between the factory harness and injectors. The included ethanol sensor and vehicle-specific fuel lines install in the factory fuel-feed line.
Use eye protection and relieve fuel-system pressure before disconnecting any fuel line. Check every quick-connect fitting for a secure connection and inspect the system for leaks before driving.
Emissions Information
The ProFlex Commander does not remove or replace emissions equipment. It reads the ethanol content in the fuel and electronically adjusts injector operation so the engine can run gasoline, E85 or any mixture of the two.
Advanced Fuel Dynamics does not publish a CARB Executive Order number for this kit. This product cannot be sold or shipped to California for use on a pollution-controlled vehicle.
Before You Buy
- Confirm that the car has the 5.7L LS1 V8.
- Choose the Standard Commander for naturally aspirated cars with factory-size injectors.
- Choose the Commander Pro for forced induction or injectors rated at 60 lb/hr, 600cc or larger.
- Select the Standard Sensor for a stock or mildly modified fuel system.
- Select the E-SENSE Sensor for a higher-flow fuel system or a build making 700 horsepower or more.
- Forced-induction and larger-injector setups may require additional fuel-system upgrades and a custom E85 or flex-fuel tune.
Pairs Well With
- Borla S-Type Cat-Back Exhaust for Camaro / Firebird / Trans Am LS1 – Give the LS1 a louder and deeper exhaust sound with a direct bolt-on T-304 stainless cat-back. It fits the same 1998-2002 Camaro Z28, Camaro SS, Firebird and Trans Am applications in coupe or convertible form.
- SLP FlowPac Cold Air Intake for Chevy Camaro LS1 – Replace the factory intake path with SLP's airbox lid, smooth bellows and reusable Blackwing filter for more airflow and louder intake sound. This intake only fits the 2000-2002 Camaro LS1, not the Firebird or 1998-1999 Camaro.
About Advanced Fuel Dynamics
Advanced Fuel Dynamics started after its founder ran into the same problem many E85 owners see: the ethanol percentage at the pump is not consistent. AFD's ProFlex systems measure what is actually in the tank and adjust for it instead of assuming every fill-up has the same blend.
AFD develops its ProFlex Commander, ProFlex DXI, FlexLink and E-SENSE products in Texas.
Redline360 only sells genuine and authentic Advanced Fuel Dynamics products.
