Fitment Information
- Toyota 4Runner 6th Gen, all trims, gas and i-FORCE MAX hybrid (2025, 2026)
- Note: Non-hybrid and hybrid powertrain vehicles use different rear mounting holes during installation per the included instructions. Both are compatible with this skid plate assembly
Fitment Note: This skid plate assembly fits all trim levels of the 6th generation Toyota 4Runner across both gas and i-FORCE MAX hybrid powertrains. The non-hybrid and hybrid variants use different rear plate mounting holes during installation, which is called out in the included installation guide. Do not use this skid plate as a jacking point unless the included billet jacking blocks are installed first. Bolt torque spec: 21 ft-lbs / 29 Nm. All necessary mounting hardware included.
Specs and Features
- Product weight: 43 lbs for the full assembly
- 1/4-inch raw aluminum construction
- TIG welded throughout

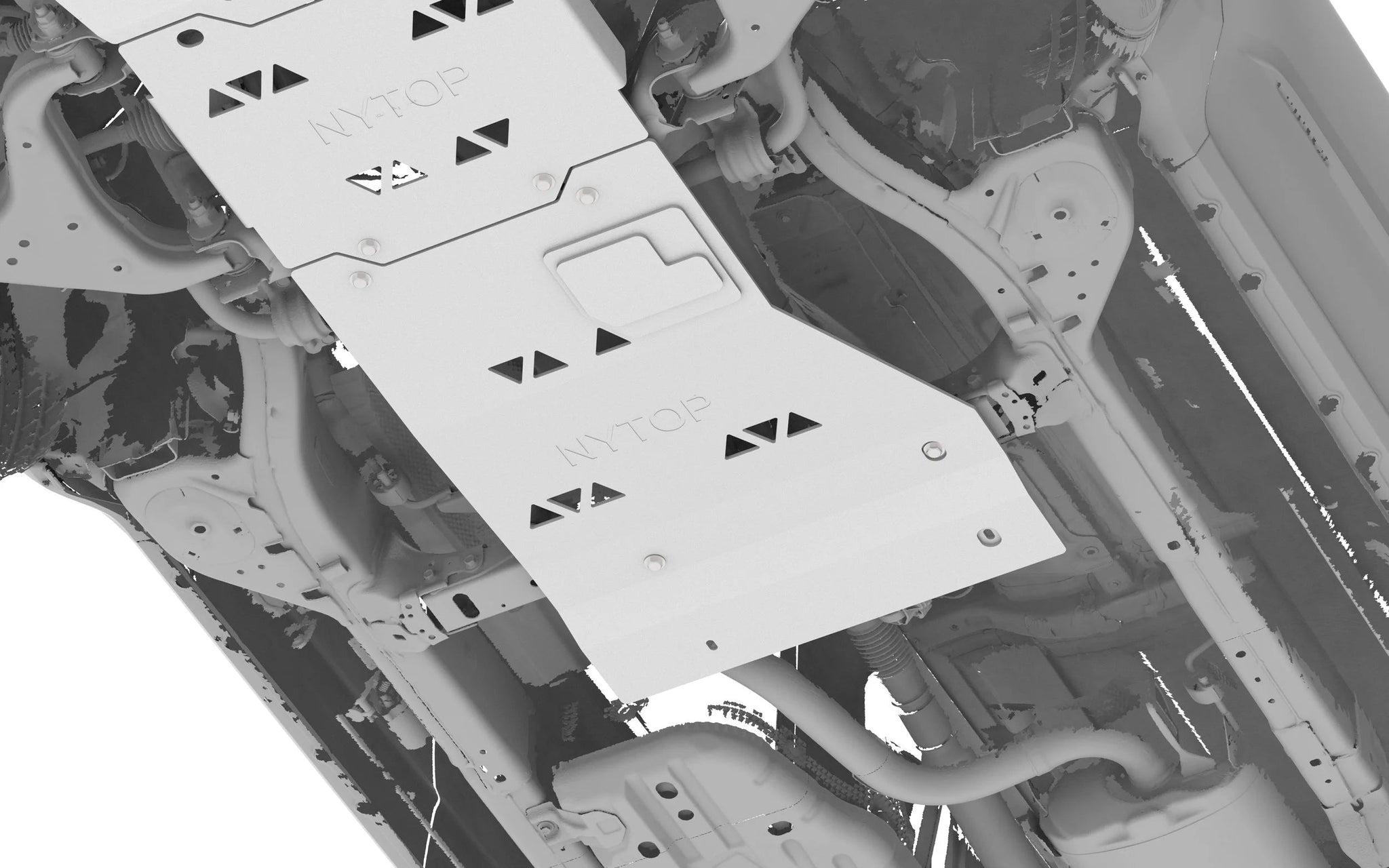

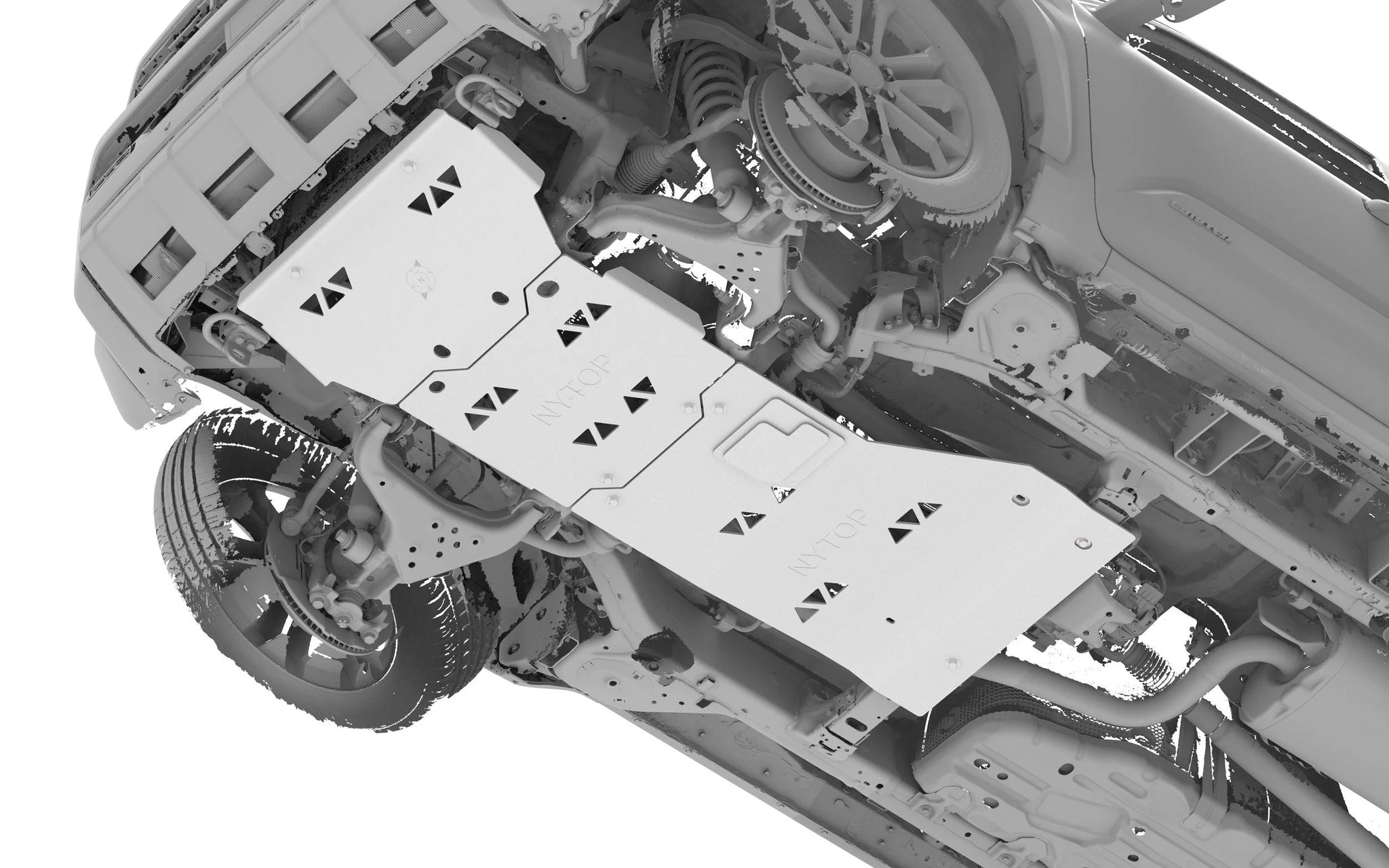

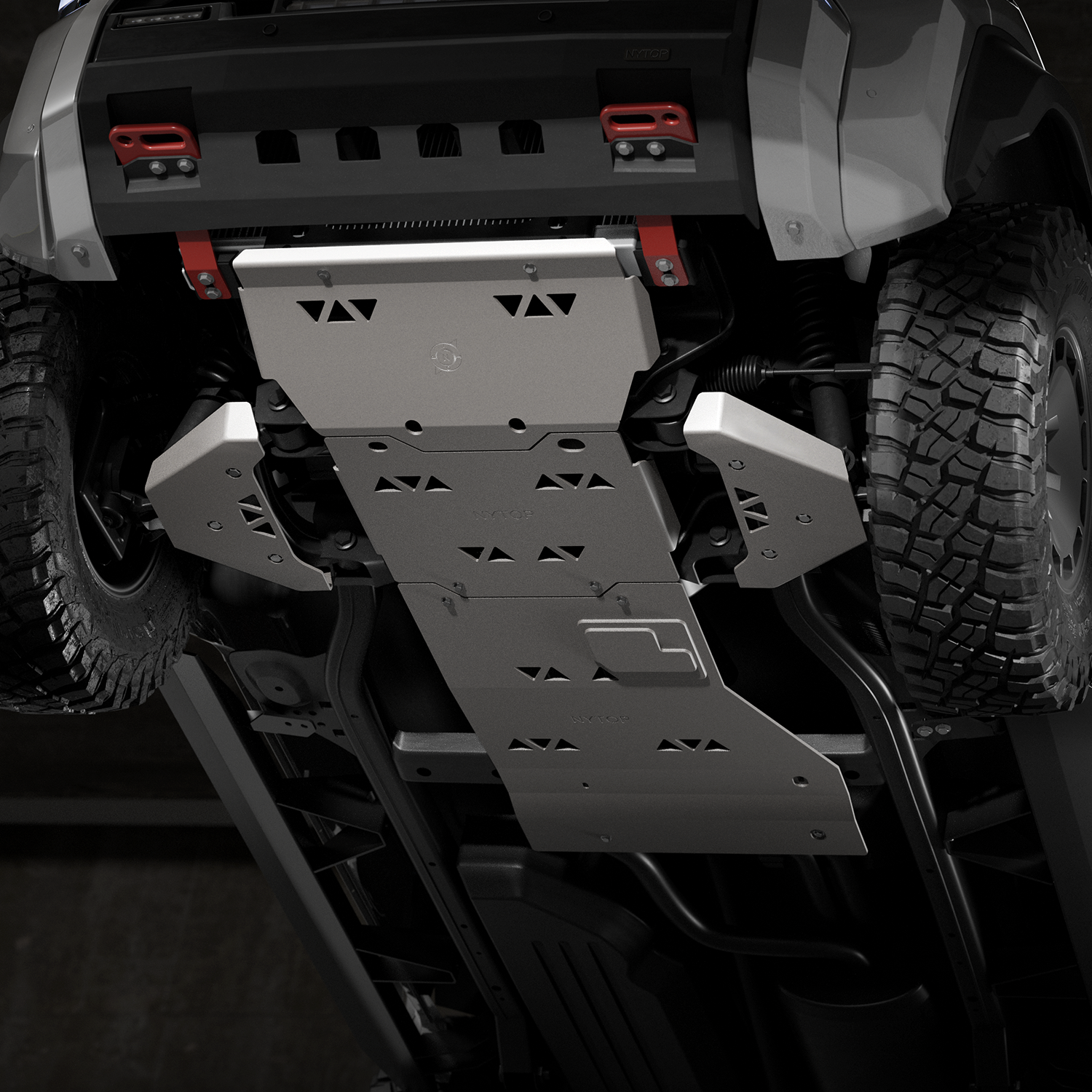

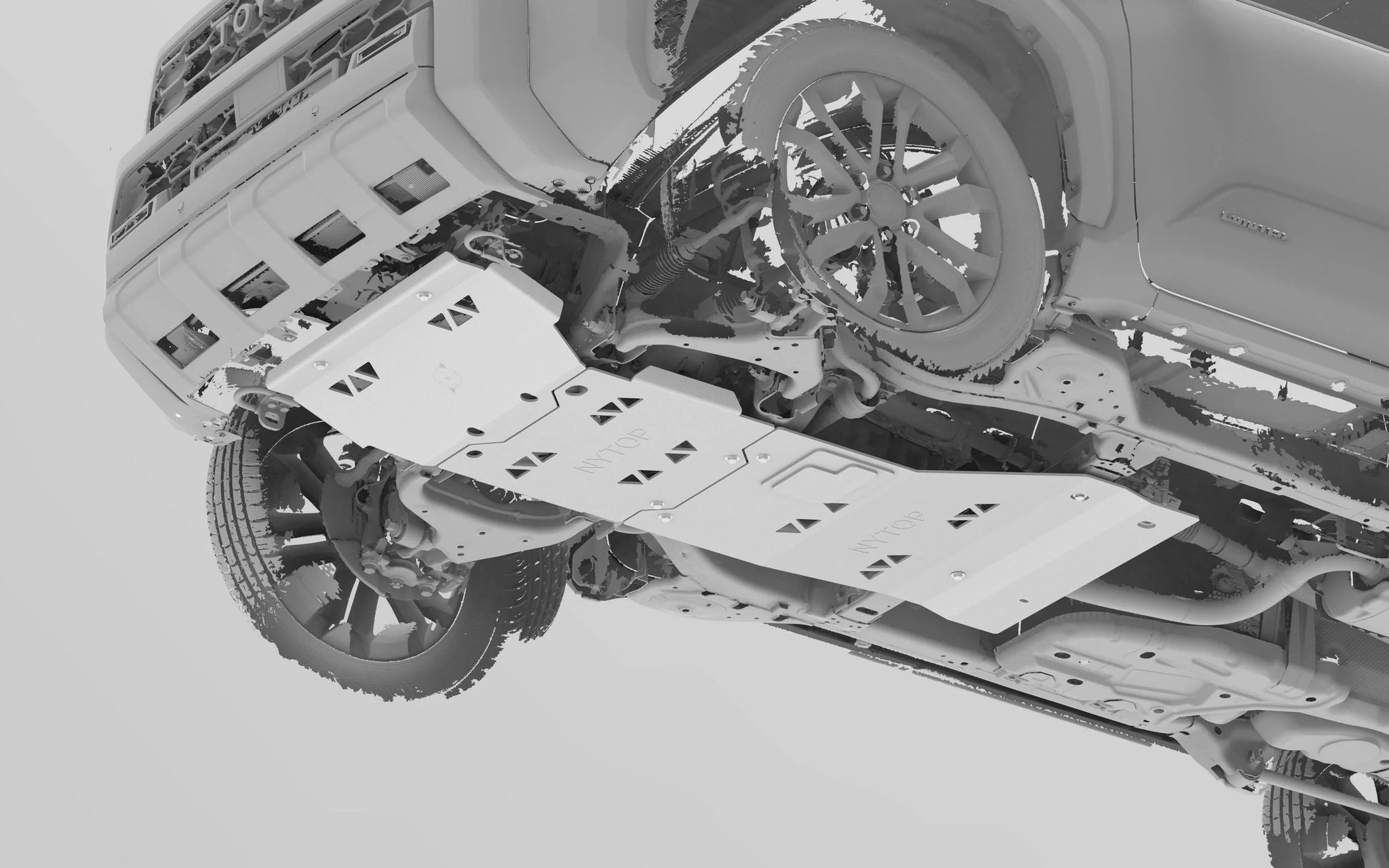

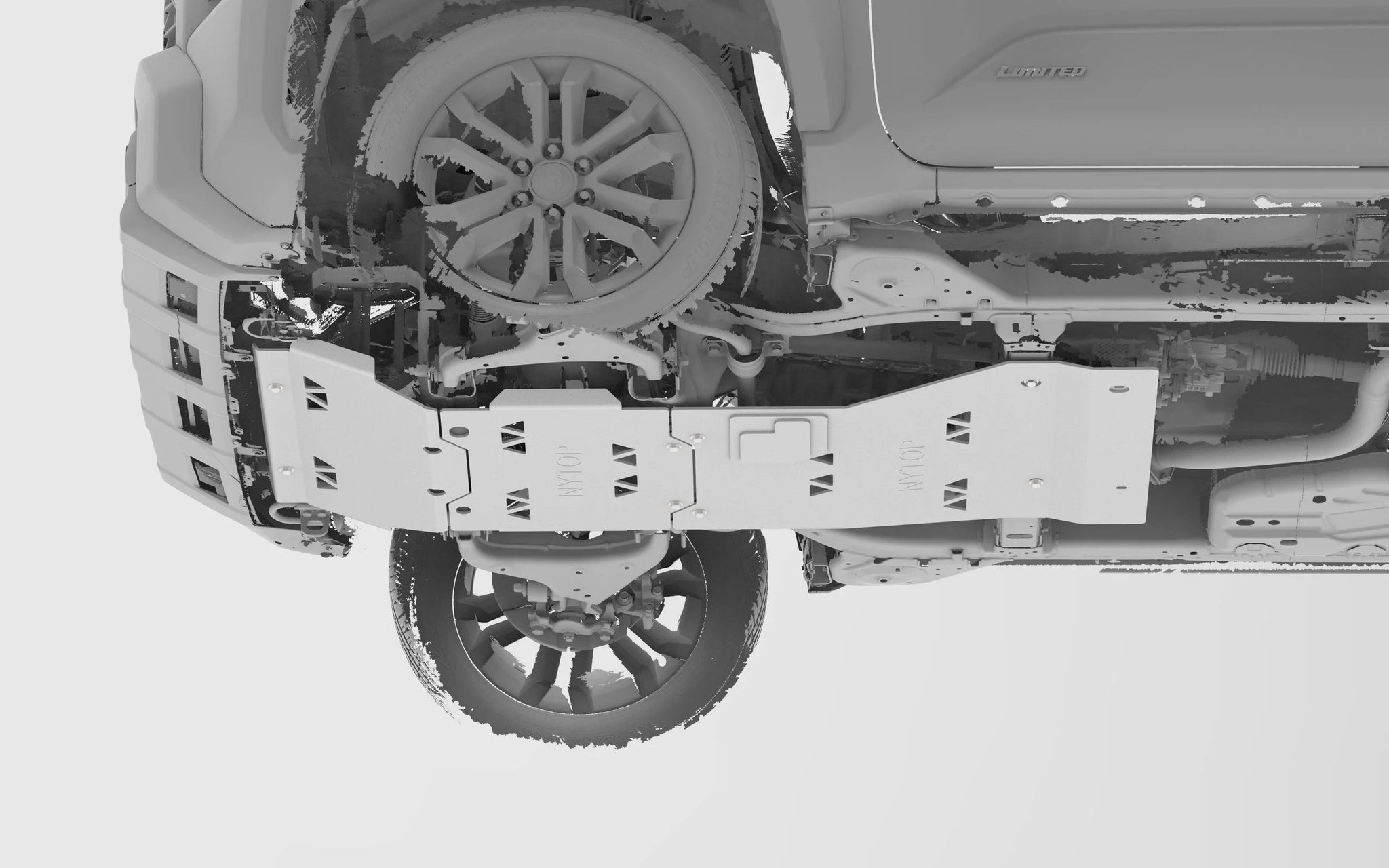

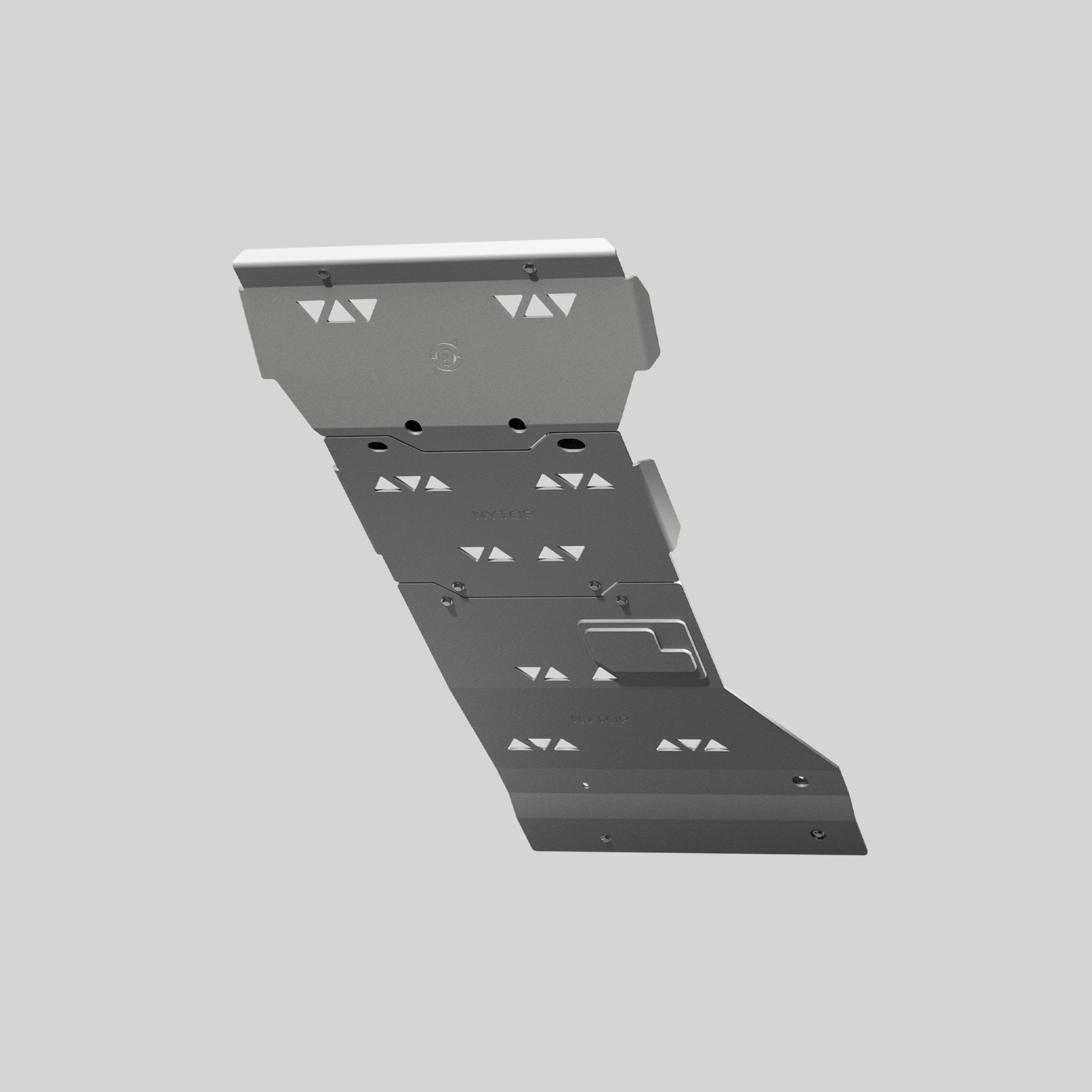

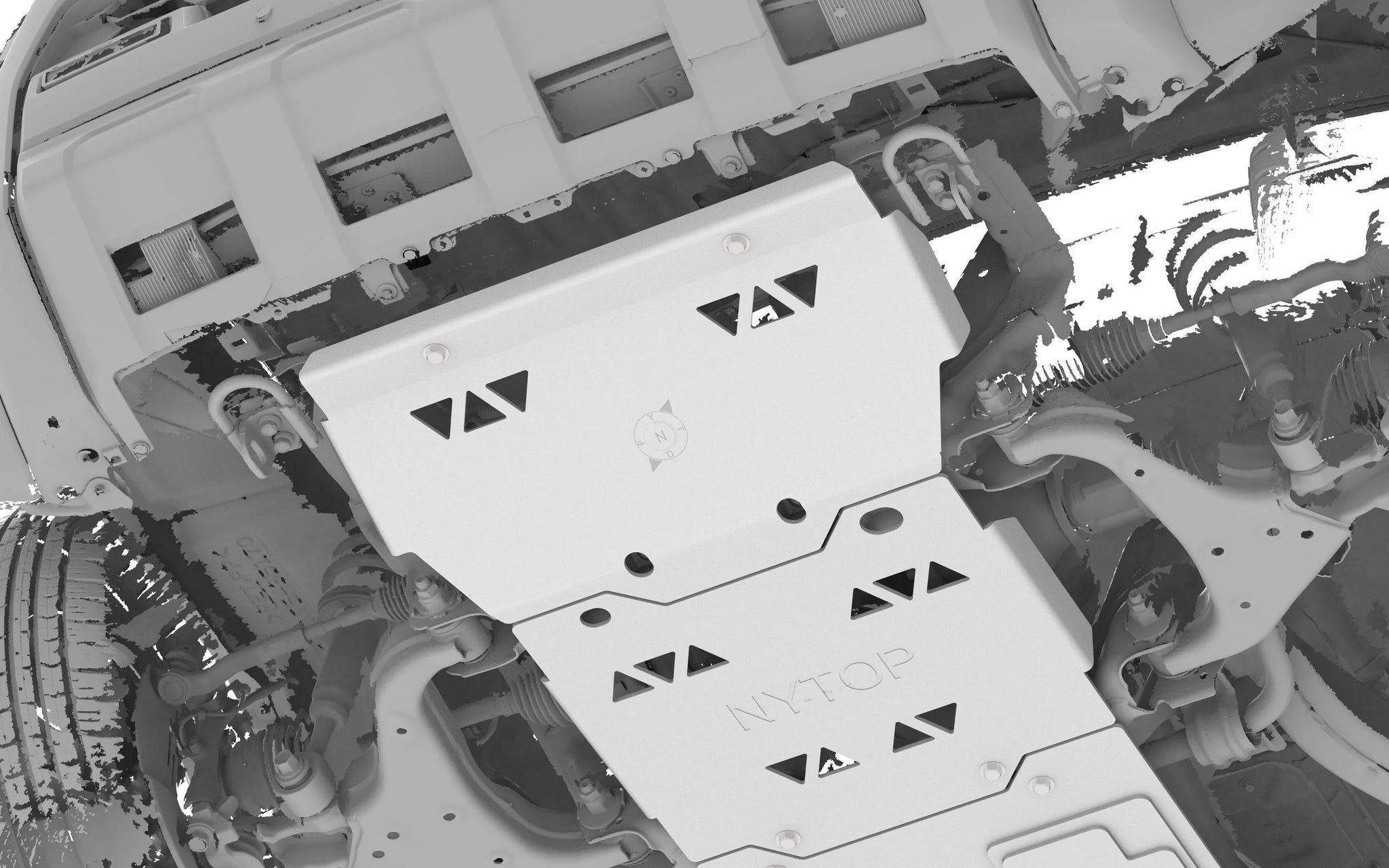

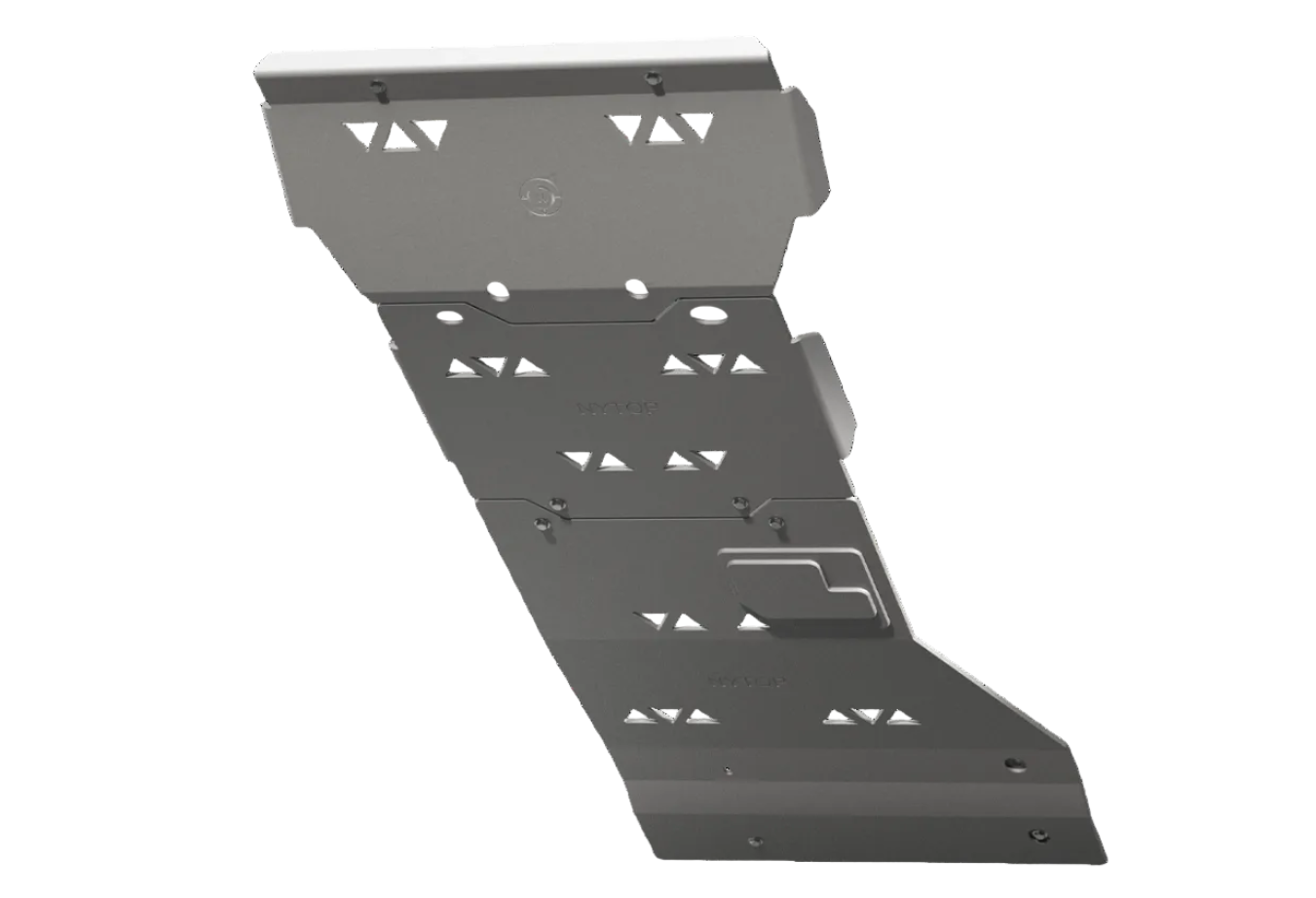

- Modular 3-piece design covers both the engine and transmission in a single assembly
- Billet jacking blocks included (qty 2 for 4Runner), must be installed before using as a jacking point
- Designed to integrate with NYTOP's catalytic converter shield, which can be sandwiched between the frame and the middle skid plate during installation
- 100% bolt-on, all necessary mounting hardware included
- Torque all bolts to 21 ft-lbs / 29 Nm
- Remove any OEM skid plates or plastic undercovers before installation

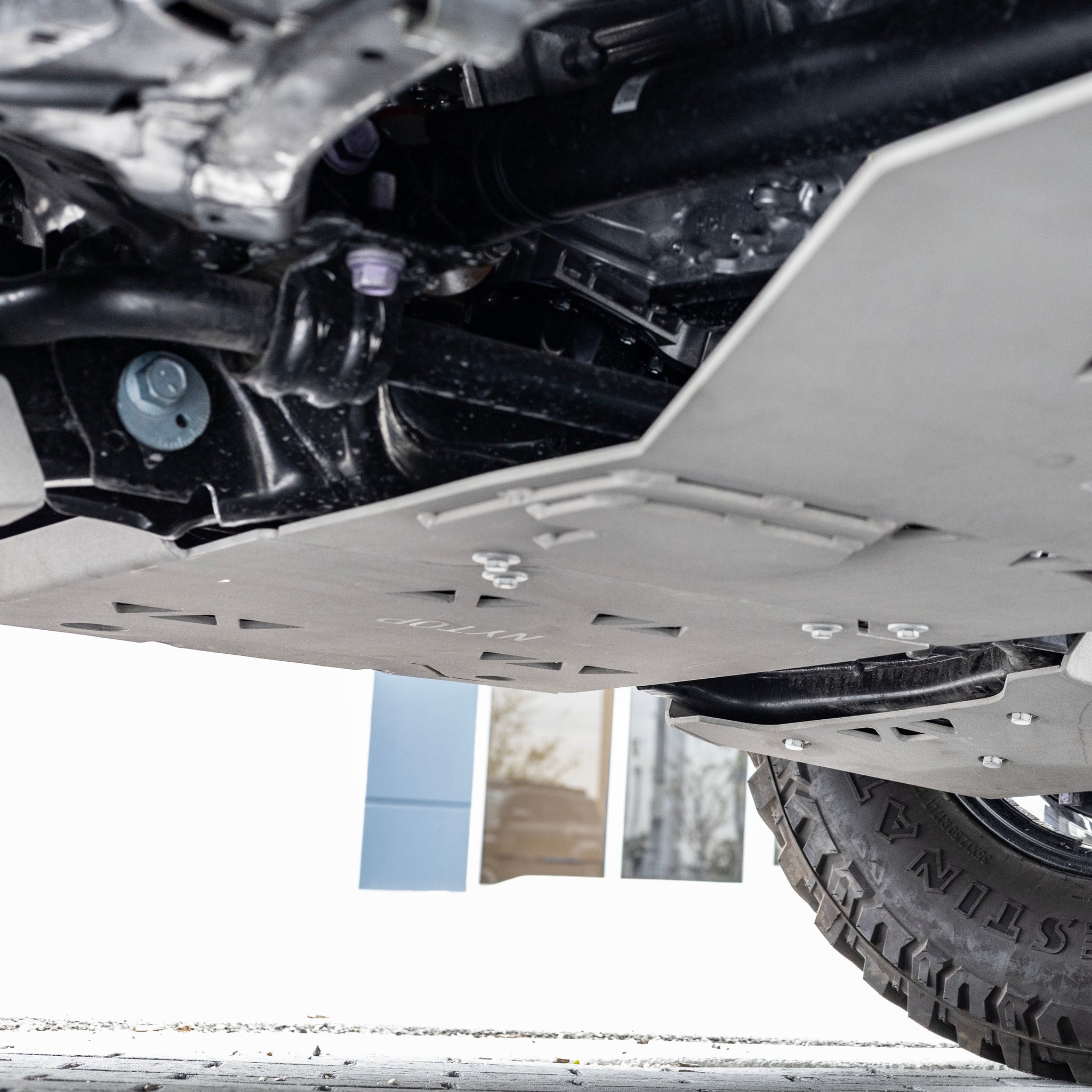

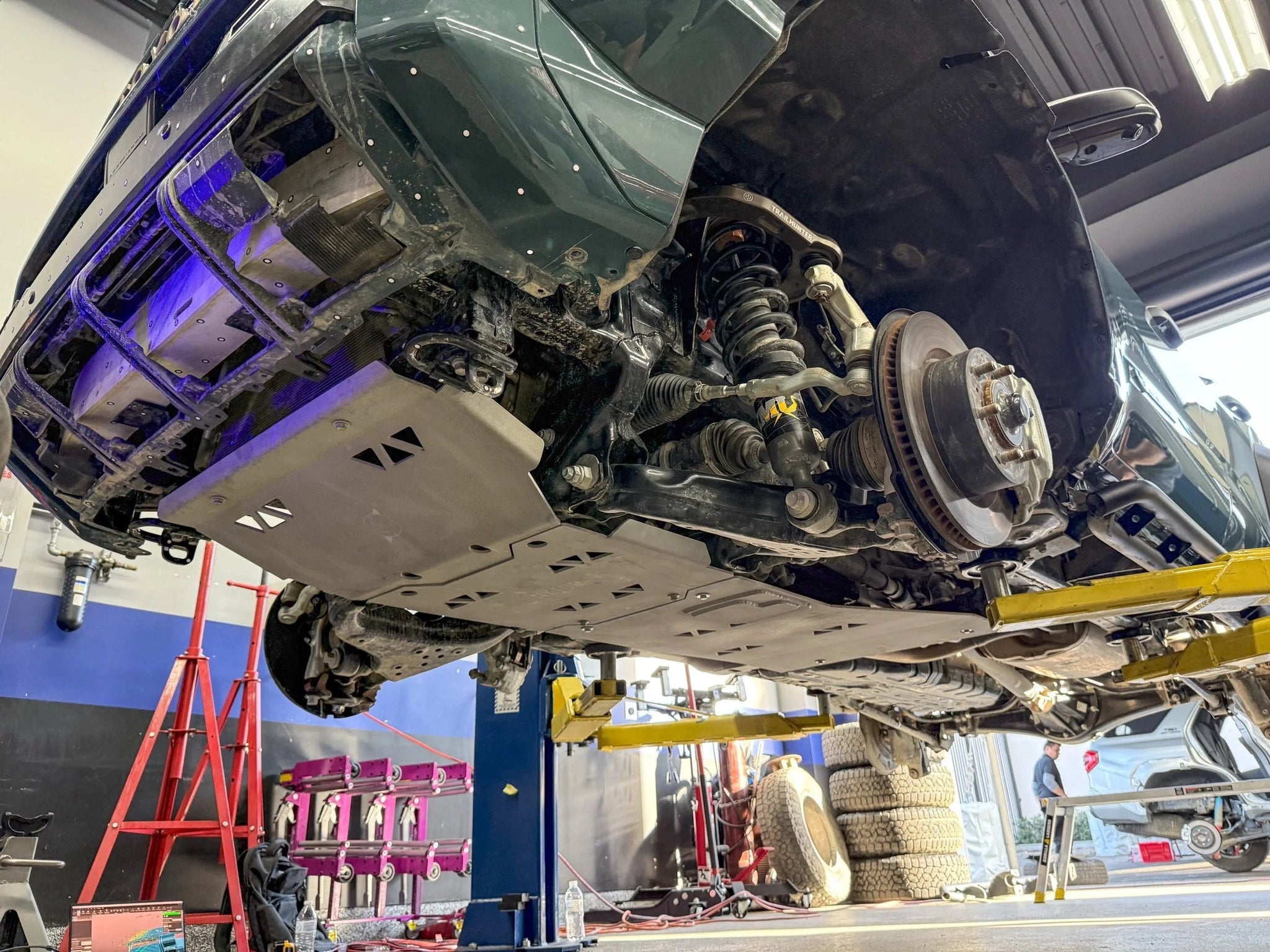

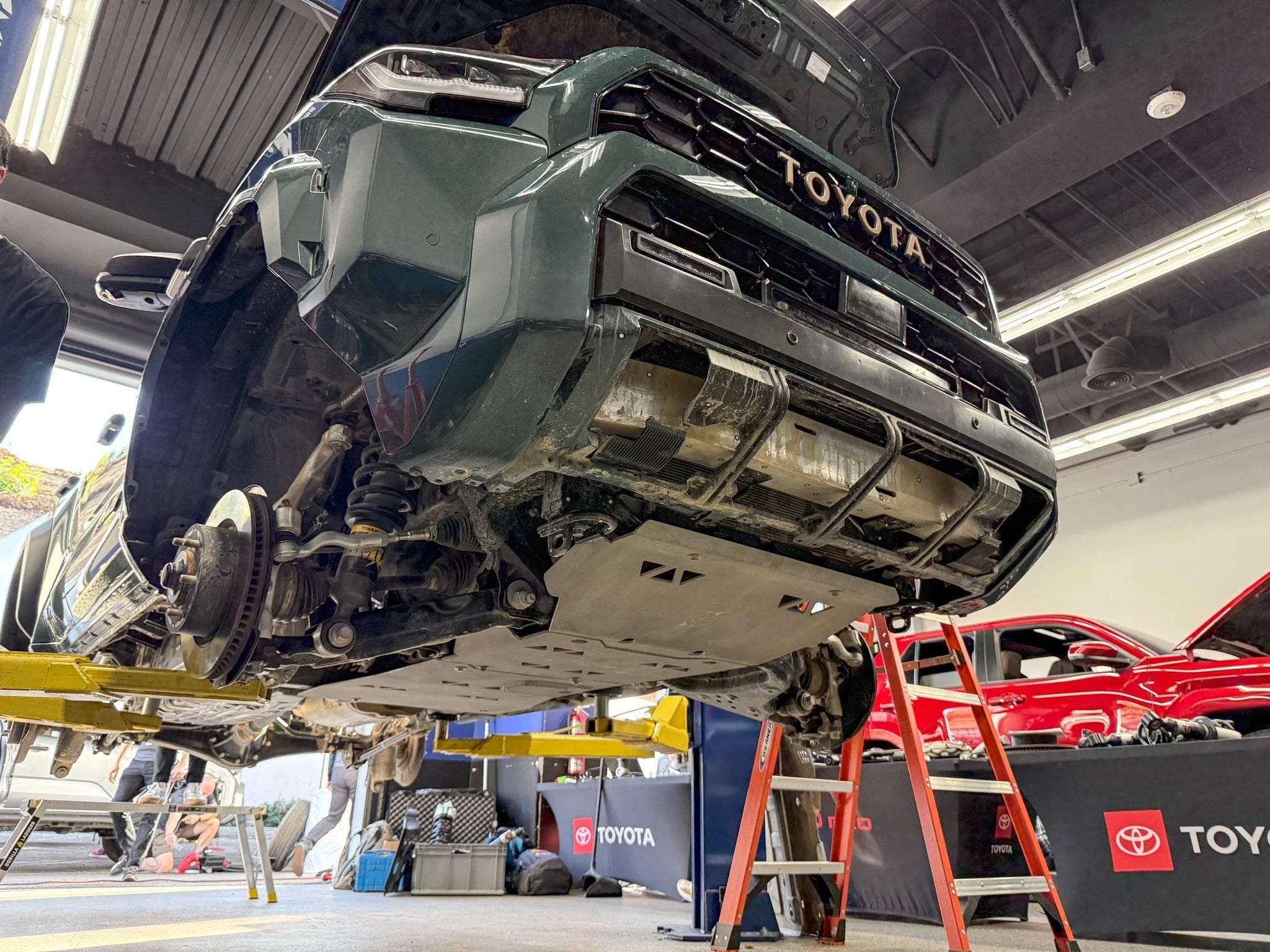

Most aftermarket skid plates for this platform cover the engine only. The NYTOP assembly covers both engine and transmission in a single 3-piece modular setup, which matters on trail use where the transmission crossmember is just as exposed as the oil pan. The modular design means you can pull individual sections for maintenance without removing the whole plate. At 43 lbs in 1/4-inch aluminum, it's light enough that one person can manage the install without a lift. The billet jacking blocks are worth calling out specifically — the plate is not rated as a jacking surface unless those blocks are installed first, which is a detail that trips people up on the first oil change.
You May Also Like
- AWE 0FG Catback Exhaust Toyota 4Runner 2.4L (2025-2026) AWE's BashGuard protects the exhaust from the same trail obstacles these skid plates are built to handle. High-clearance catback design with AWE's 180 Technology for drone-free sound. A natural pairing for a 6th gen 4Runner trail build.
About NYTOP
NYTOP designs and engineers all of their products in California, USA, drawing on decades of combined experience from OEM vehicle programs and the automotive aftermarket. Their in-house team uses a continuous collaborative R&D process between design, engineering, and manufacturing to ensure precise fitment and long-term durability. Every NYTOP product is built to bolt on without modifying OEM components.
