Chase Bays Nissan Skyline R32 (1989-1994) Tucked Aluminum Radiator - OE Push-On Hose Style / -16AN / -20AN Inlet & Outlet Type

Fitment Information

• Nissan Skyline R32 (1989, 1990, 1991, 1992, 1993, 1994)

Specs & Features

• Space Optimization: Designed to open up space in crowded engine bays, offering a cleaner look and better aesthetics.
• Enhanced Cooling: Increased fluid capacity, direct airflow, and dual-pass design for improved cooling performance.
• Durable Construction: Made from high-quality aluminum, rigorously tested for nearly a decade in track and drift conditions.

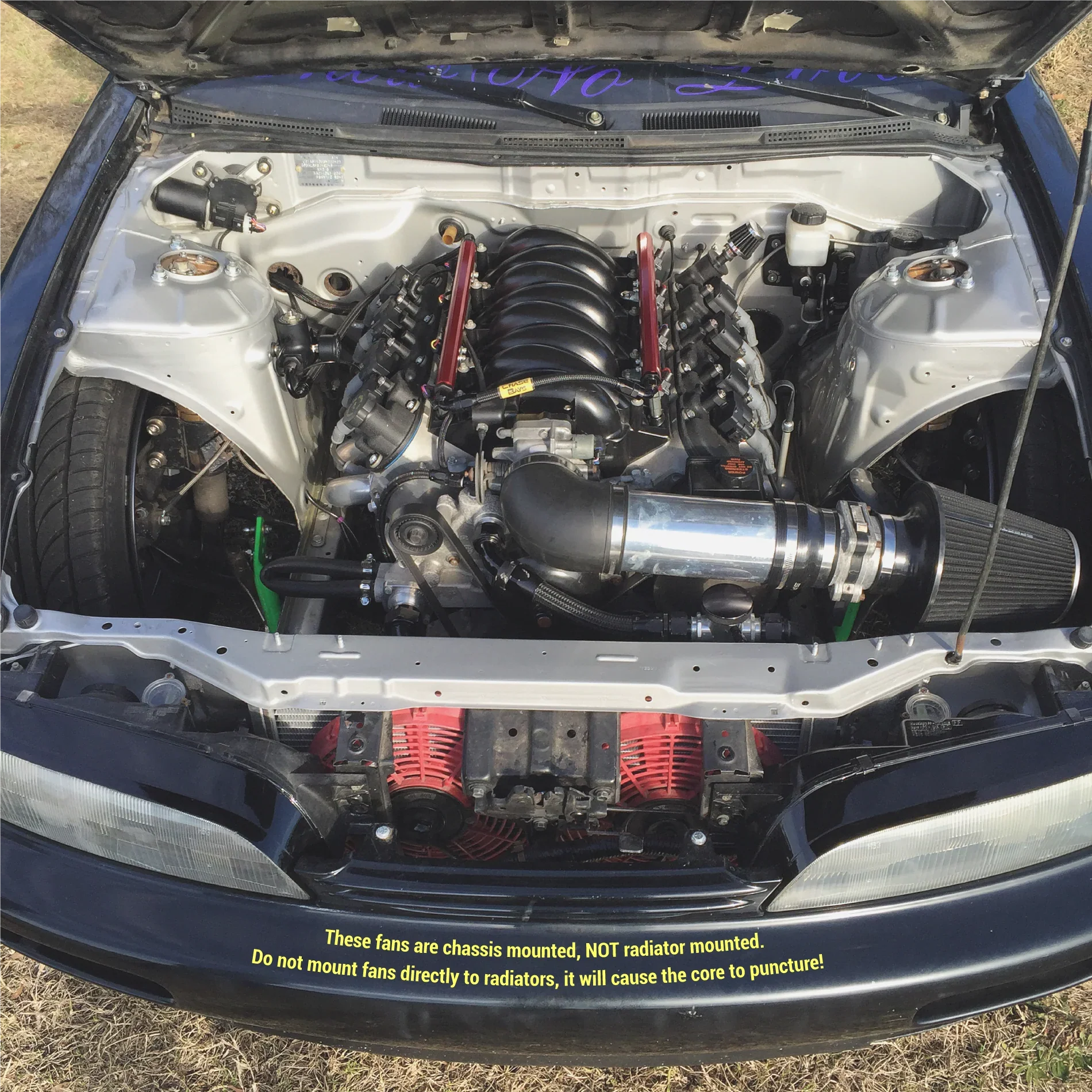

• Fan Compatibility: Fits (2) 12" Chase Bays Ultra Duty Fans (1,700 CFM each, 3,400 CFM total).

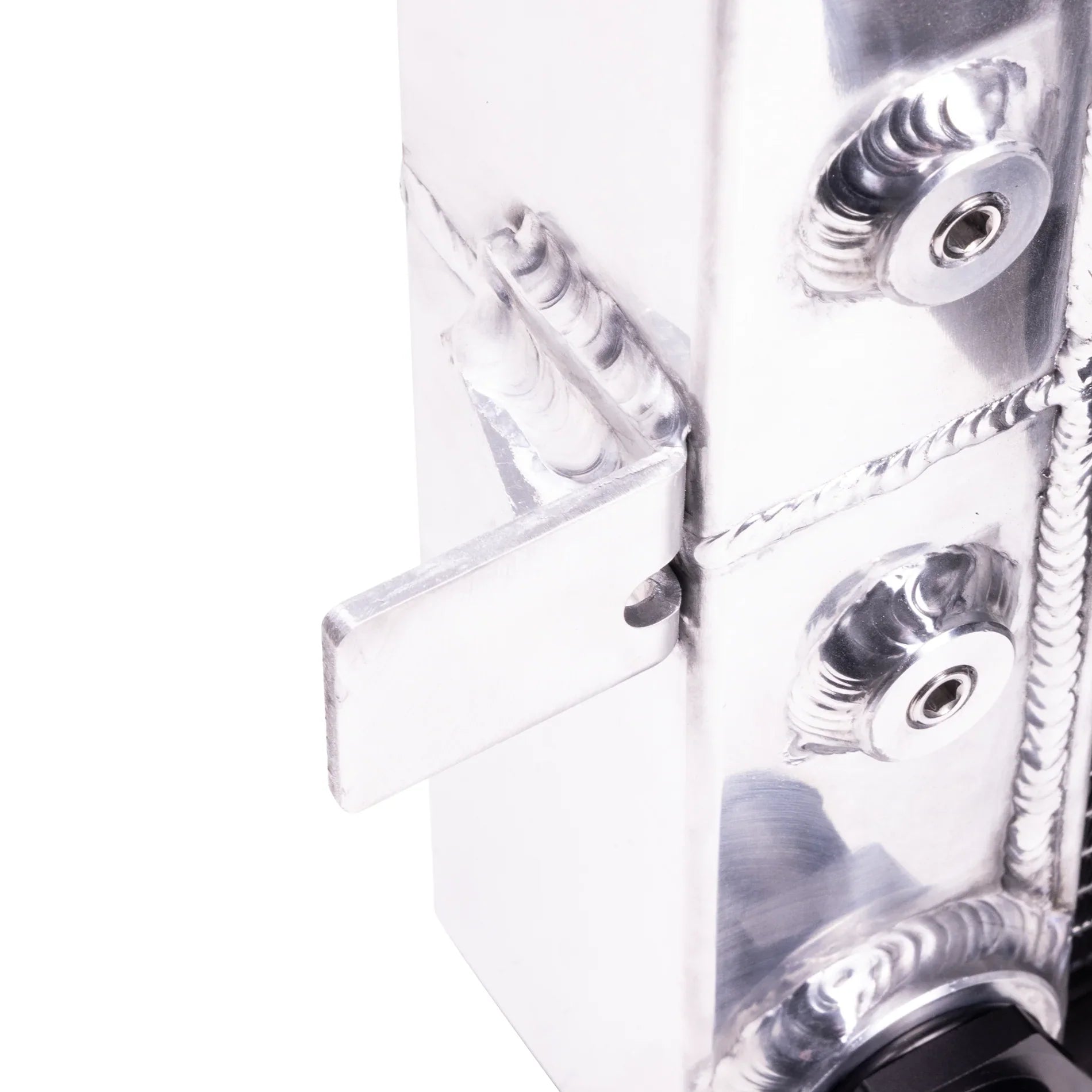

• Modular Design: Reversible orientation with interchangeable inlet/outlet types, including OE style, -16AN, and -20AN fittings.
• Triple-Baffled Reservoir: Prevents aeration and spillover, featuring a unique multi-layer chimney design.
• Optional Oil Cooler: Setrab Oil Cooler available for additional airflow and temperature reduction.
• Custom Fit: Requires some front core support cutting for installation, designed to fit under core support with minimal modification.
• Pressure Tested: Each unit is pressure tested to 30psi for reliability.
• Dimensions: 27.25" Wide x 13.5" Tall x 3.5" Thick (3" Core).
• Fill Point: Includes a raised inline filler neck for easy access and proper system setup.
• Dual Pass Design: Coolant passes through twice for increased efficiency, with inlet and outlet on the same side.
• Hose Compatibility: Uses custom silicone hose bends with Gates Heat Shrink Clamps for seamless installation.
• Stealth Finish: Black anodized finish with laser-etched cap and durable construction.
• Improved Engine Bay Space: Shortens 8" of space while increasing width and thickness to maintain fluid capacity.
• Better Cooling: Dual-pass design ensures twice the cooling efficiency in a compact size.
• Versatile Fitment: Compatible with multiple engine setups, including KA/SR, RB, 1JZ/2JZ, and GM LS.
• Enhanced Aesthetics: Clean, professional look suitable for both show-winning and high-performance vehicles.
• Easy Installation: Designed for a straightforward installation with detailed instructions.


Product Description

Chase Bays's Tucked Radiator for Nissan 240sx Silvia S chassis and Skyline R32 optimizes engine bay space, enhances aesthetics, and improves cooling. With greater fluid capacity, direct airflow, and a dual-pass design, it replaces 8 inches of length with increased width and thickness. Track-tested for nearly a decade, it's a favorite in show-winning engine bays. Designed to fit snugly under the core support, it supports two 12" fans and requires minimal chassis cutting. The absence of a full shroud, replaced by integrated fan brackets, boosts cooling efficiency and reduces cost by $175. Equipped with high-powered 12" Chase Bays Ultra Duty Fans (3,400 CFM total), it ensures superior cooling with each fan on its own relay. The radiator features modular inlet/outlet and reversible orientation, with -20AN female threads for adaptable fittings. Recommended inlet/outlet sizes are based on engine types, avoiding flow restrictions. A new fill point is necessary due to the lower radiator position, with options for an inline filler neck or Chase Bays Raised Modular Filler Neck. The dual-pass design ensures twice the cooling efficiency, with inlet/outlet on the same side and separate end tanks to direct flow. Mounting is achieved with L brackets, and factory hoses are replaced by custom silicone hose bends and Gates Heat Shrink Clamps. Each radiator is pressure tested to 30psi, ensuring reliability. Dimensions are 27.25" wide, 13.5" tall, and 3.5" thick.
